Model to determine plateau point in dataset -- surgery length is my outcome

[gbrussell]

I have data on surgery number (1-25) and surgery minutes by the same physician; he wants to know when his data plateaus. I've seen the example (https://documentation.sas.com/?cdcId=pgmsascdc&cdcVersion=9.4_3.4&docsetId=statug&docsetTarget=statu...) but am not sure of the parameters I need to specify for this. Any help would be welcomed.  I'd like to plot the data; here's what the data look like (surgery #, date, length of procedure):

1	3/20/2019	182
2	5/16/2019	150
3	5/30/2019	223
4	6/6/2019	142
5	6/11/2019	111
6	7/11/2019	164
7	7/26/2019	83
8	8/22/2019	144
9	8/29/2019	162
10	9/19/2019	83
11	10/10/2019	70
12	10/17/2019	114
13	10/31/2019	113
14	11/7/2019	97
15	11/21/2019	83
16	12/5/2019	111
17	12/5/2019	73
18	12/12/2019	87
19	12/19/2019	86
20	1/9/2020	102
21	1/16/2020	124
22	1/23/2020	95
23	1/30/2020	134
24	3/5/2020	121
25	6/4/2020	60

[ballardw]

Here's an example of 1) how to provide example data and 2) a simple plot of the data

data have;
  input SurgeryNo date :mmddyy10. duration;
  format date mmddyy10.;
datalines;
1	3/20/2019	182
2	5/16/2019	150
3	5/30/2019	223
4	6/6/2019	142
5	6/11/2019	111
6	7/11/2019	164
7	7/26/2019	83
8	8/22/2019	144
9	8/29/2019	162
10	9/19/2019	83
11	10/10/2019	70
12	10/17/2019	114
13	10/31/2019	113
14	11/7/2019	97
15	11/21/2019	83
16	12/5/2019	111
17	12/5/2019	73
18	12/12/2019	87
19	12/19/2019	86
20	1/9/2020	102
21	1/16/2020	124
22	1/23/2020	95
23	1/30/2020	134
24	3/5/2020	121
25	6/4/2020	60
;

proc sgplot data=have;
  scatter x=date y=duration;
run;

You might add a regression of degree 2,

proc sgplot data=have;
  scatter x=date y=duration;
  reg x=date y=duration/degree=2 ;
run;

If you want to fit a model then implement the document you site. Maybe.

[gbrussell]

The model doesn't work for these data, at least not using the alpha, beta, gamma, X0 in the link.  That's where I need a bit of help.

Thanks!

[gbrussell]

Thank you for the plot/model -- it works very well and will help provide what I need to report.  I appreciate your time.

[mkeintz]

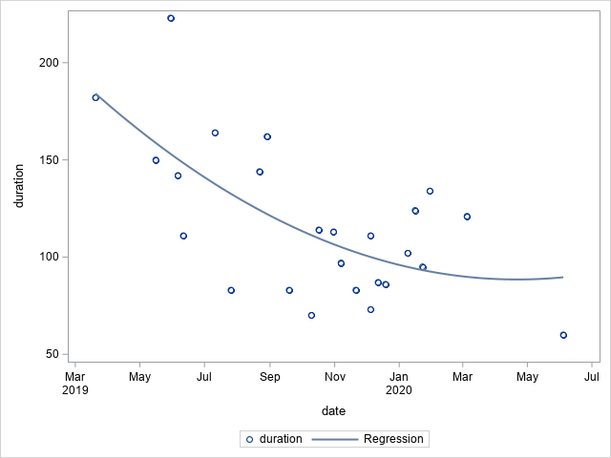

If you drop the minimum and maximum durations in this data, you no longer see a "plateau".  The plot and regression curve changes from

 

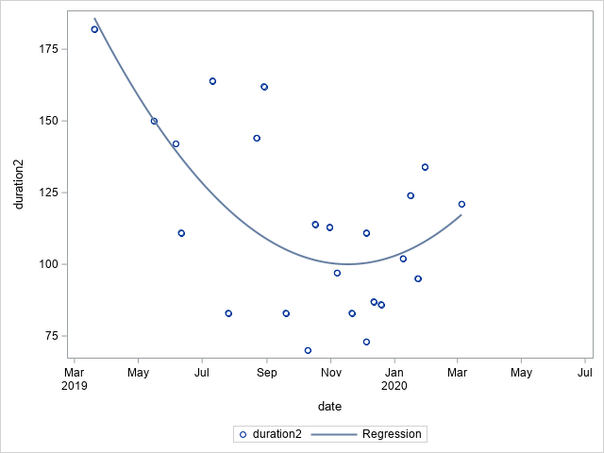

to

 

[PGStats]

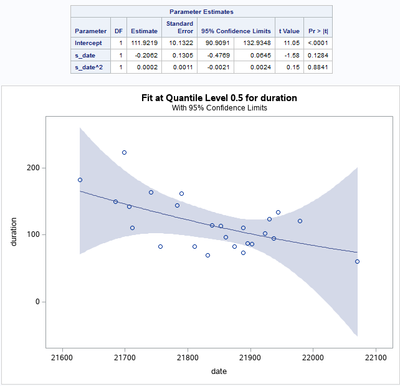

A robust regression (fitting at the median) doesn't show much evidence of a time effect:

proc quantreg data=have ci=resampling;
effect dPoly=poly(date / degree=2 standardize=center details);
model duration = dPoly;
run;

most of the effect that we see in the scatter plot is due to 2 or 3 data points.

[SteveDenham]

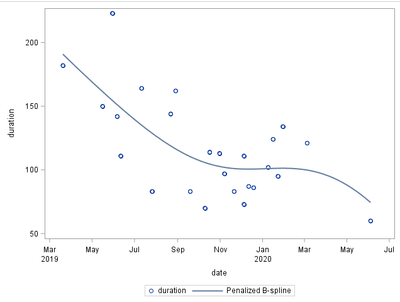

I tried a variety of splines (penalized B, thin-plate and loess) to see if there was any indication of something that might look like a plateau, without using a polynomial fit.  The penalized B gave something that looked like this:

The other methods showed a smooth decrease.  Removing the last date from the penalized B gives something that turns back up (no plateau), while the other two methods give;

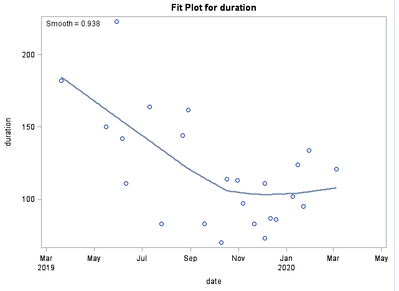

Loess:

Thin plate spline:

These give some support to a plateau being reached some time in November 2019.  That last point has a tremendous amount of leverage, and really shifts the resulting plots.  Code for these follows:

proc sgplot data=have;
  scatter x=date y=duration;
  pbspline x=date y=duration;
run;

ods graphics on;
proc tpspline data=have plots(only)=(criterionplot fitplot(clm));
   model duration = (date) /alpha = 0.1;
   output out = result pred uclm lclm;
run;

proc loess data=have;
   model duration=date;
run;

/* Delete the last point */
data have2;
set have;
if surgeryno=25 then delete;
run;

proc sgplot data=have2;
  scatter x=date y=duration;
  pbspline x=date y=duration;
run;

proc tpspline data=have2 plots(only)=(criterionplot fitplot(clm));
   model duration = (date) /alpha = 0.1;
   output out = result pred uclm lclm;
run;

proc loess data=have2;
   model duration=date;
run;

SteveDenham

[gbrussell]

Thank you very much for your time.  This is quite helpful and thorough.

[Rick_SAS]

> The model doesn't work for these data, at least not using the alpha, beta, gamma, X0 in the link.

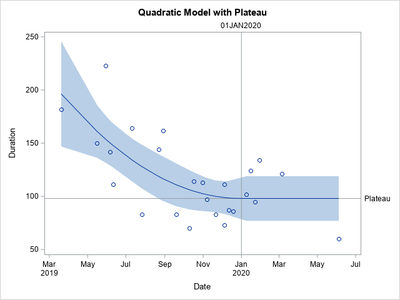

It is not surprising that the initial guesses for the documentation example do not work for your data, which has a completely different scale. The initial values of the parameters should be somewhat close to the final (optimal) values. For your data, I would use a simple quadratic regression model to estimate the parameters. Then the NLIN Procedure fits the data without difficulty and reports a plateau of 98 minutes, reached on 01JAN2020.

/* rescale by using x="days since start" as the variable */
%let RefDate = '20MAR2019'd;
data New;
set Have;
rename duration=y;
x = date - &RefDate;  /* days since first record */
run;

proc glm data=New;
 model y = x x*x;
run;

title 'Quadratic Model with Plateau';
proc nlin data=New plots=fit;
   parms alpha=184 beta= -0.5 gamma= 0.001;

   x0 = -.5*beta / gamma;
   if (x < x0) then
        mean = alpha + beta*x  + gamma*x*x;
   else mean = alpha + beta*x0 + gamma*x0*x0;
   model y = mean;

   estimate 'plateau' alpha + beta*x0 + gamma*x0*x0;
   estimate 'x0' -beta / (2*gamma);
   output out=b predicted=yp L95M=lower U95M=upper;
run;

/* convert x back to original scale (date) */
data _NULL_;
plateauDate = 287 + &RefDate;
call symput('x0', plateauDate);
put plateauDate DATE10.;
run;
%put &=x0;

proc sgplot data=b noautolegend;
   band x=date lower=lower upper=upper;
   refline 97.97  / axis=y label="Plateau"    labelpos=max;
   refline &x0 / axis=x label="01JAN2020" labelpos=max;
   scatter x=date y=y;
   series  x=date y=yp;
   yaxis label='Duration';
run;

[gbrussell]

Thank you for the post.  I could not find an example or documentation on selecting a better value.  I appreciate your time.

[Rick_SAS]

If you want more information about how to select initial values, try these:

• Use a grid search to find initial parameter values for regression models in SAS
• Reduced models: A way to choose initial parameters for a mixed model
• How to find an initial guess for an optimization
