I have an example SAS dataset with the following structure:

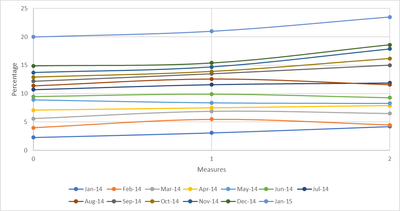

As of right now I have the data graphed on excel with the 0, 1, 2 variables on the x-axis and their corresponding percent values on the y-axis. Essentially the graph shows the growth of vars 0, 1, and 2 across time. My Question is how do I replicate this graph in SAS Visual analytics? I tried the line chart option in VA but that doesn't allow you to add multiple categorical variables.
The way that you visualized this data in Excel is unconventional, is there a particular industry context where it is common to present it this way?

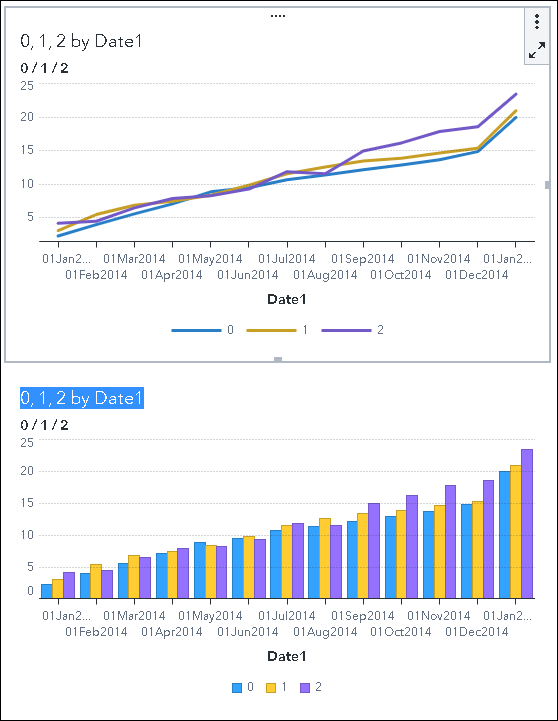

Usually you would present this data either as bar chart or a line chart with multiple response variables:
To replicate your Excel chart, I think it would be necessary to restructure the data to be more like this:
date Variable Value Jan14 0 2.3 Jan14 1 3.1 Jan14 2 4.2
Then you could assign "Variable" as the category role and Date as the group role.

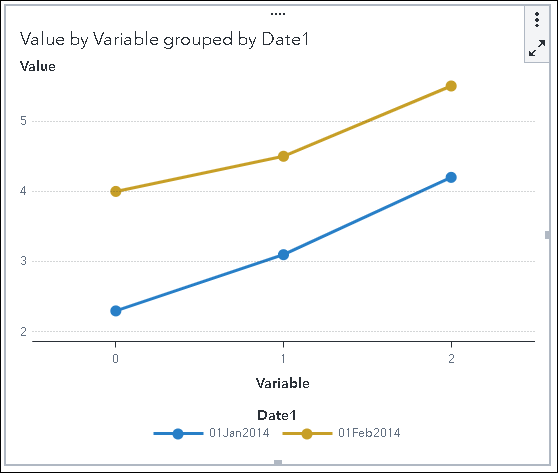

I restructured the data for the first two dates and it looks like this:
I believe you will need to transpose the data. Something like this:
Once your data is transposed. Use the Date column as the group, the Type column as the category, and the Measure column as the measure.
Here is the code I used to create the fake table, transpose it, then promote it to the CAS server. I did it quickly so please modify and check it:
cas conn; libname casuser cas caslib = 'casuser'; data casuser.test; input date:$10. one:8. two:8. three:8.; infile datalines dsd missover; datalines; Jan-14,2.3, 3.1, 4.2 Feb-14 , 4, 5.5, 4.5 Mar-14 , 5.6, 6.9, 6.5 Apr-14 ,7.1, 7.5, 7.9 May14 ,8.9, 8.4, 8.3 Jun-14 ,9.5, 9.9, 9.3 Jul-14 ,10.7,11.6,11.9 Aug-14 ,11.4,12.6,11.6 Sep-14 ,12.2,13.5,15 Oct-14 ,12.9,13.9,16.2 Nov-14 ,13.7,14.7,17.9 Dec-14 ,14.9,15.4,18.6 Jan-15 ,20,21,23.5 ; run; * Tranpose*; proc transpose data=casuser.test out=test2(rename=(col1=Measure _name_=group)); by Date; var one two three; run; * load into CAS and promote*; proc casutil; load data=work.test2 casout='transposed' outcaslib='casuser' promote; quit;

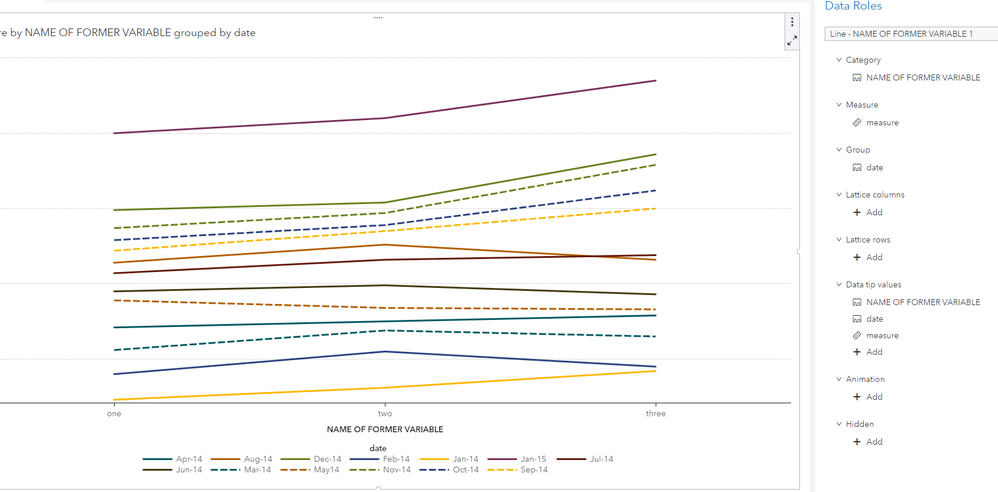

By default the transpose of columns one, two and three gets the label NAME OF FORMER VARIABLE. You can change that in the code or in Visual Analytics. I left it as is. Here is a screenshot of the line chart in Visual Analytics:
