Hi all,



I'm using SAS Visual Analytics Hub 7.3 to make a line chart with a hierarchy on the x-axis. This works in the Report Builder, but not in the Report Viewer. If I build the report to have the deepest level (days) as default, I'm able to click back to months, quarters and years, but I'm not able to click on the labels of the x-axis to go deeper again. If I build the report with years ad default, it looks like there is no hierarchy used at all.

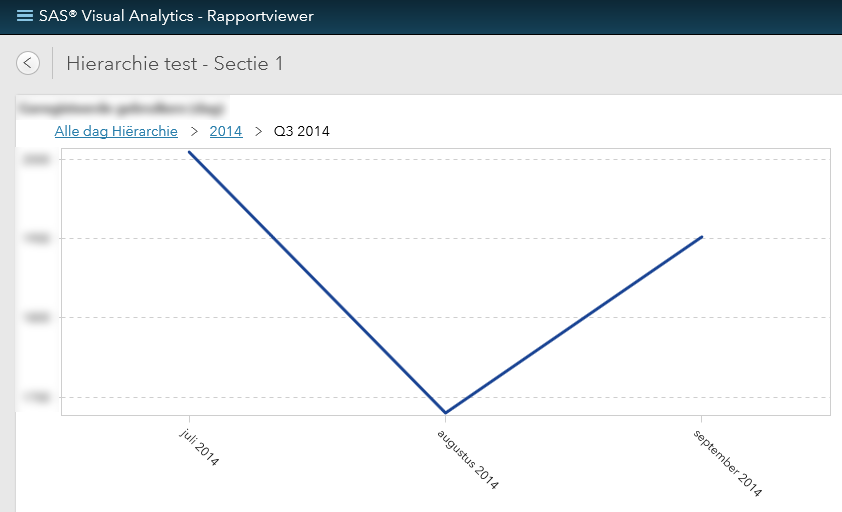

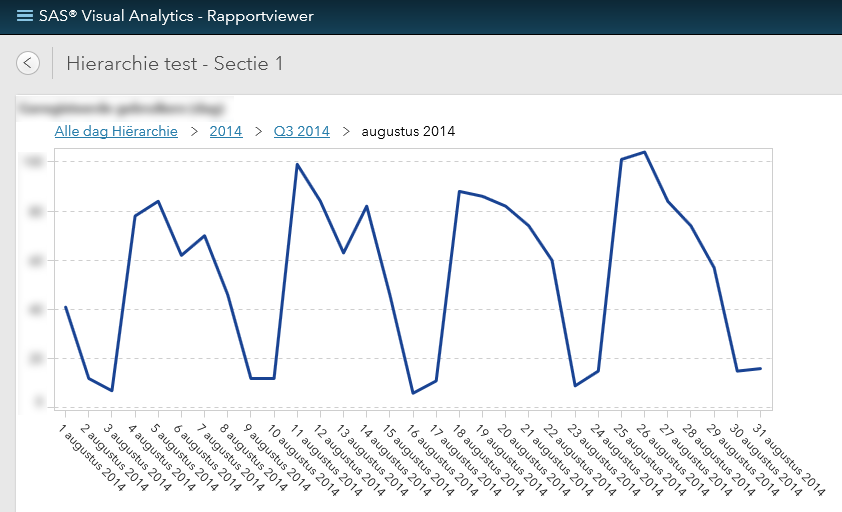

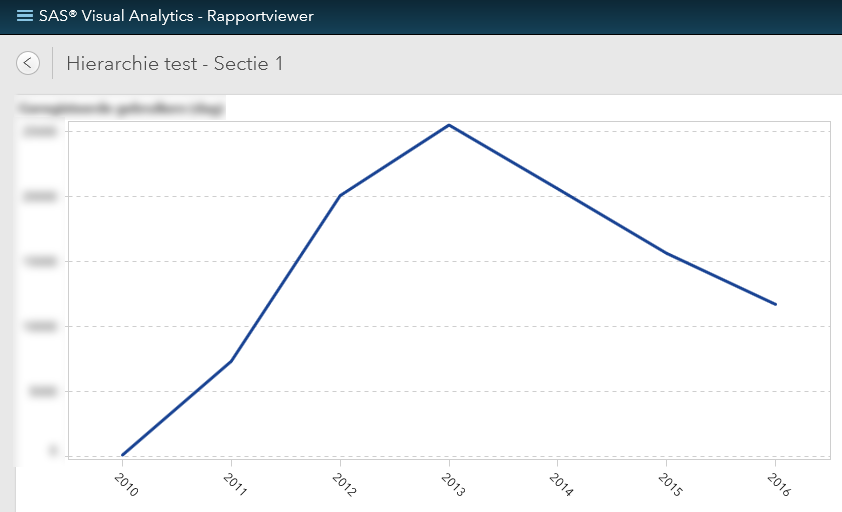

I've provided some screenshots, could it be that I missed a setting somewhere?



Kind regards,



Rick


undefinedundefinedundefinedundefined
1 ACCEPTED SOLUTION

Accepted Solutions
Renato_sas
SAS Employee

Hi @denR,



Based on the screenshots you sent, I can see you are using the HTM5 Viewer. This viewer doesn't have the option to drill down using the labels in the line chart X axis (only the Flash-based viewer has that option). You can still drill down by double clicking in the data points in the line chart itself. To make it easier, I recommend turning on the markers in your chart, so you can see where to click.



Best,

Renato

View solution in original post

2 REPLIES 2
Renato_sas
SAS Employee

Hi @denR,



Based on the screenshots you sent, I can see you are using the HTM5 Viewer. This viewer doesn't have the option to drill down using the labels in the line chart X axis (only the Flash-based viewer has that option). You can still drill down by double clicking in the data points in the line chart itself. To make it easier, I recommend turning on the markers in your chart, so you can see where to click.



Best,

Renato
