2 bars and 2 lines - Counts & Percents

[tgalliga]

Hi All,

I have a question for you. I was trying to graph 2 bars and 2 lines on the one chart. The bars are discrete and the lines are percentages. The table is already calculated

Region	month	Count_1	Count_2	Percent_1	Percent_2
North	01/01/2000	5	10	25%	27%
North	01/01/2000	10	15	10%	30%

%let gpath = 'C:\Users\\Downloads\';

ods listing style=htmlblue gpath=&gpath;

ods graphics / reset width=10in height=6in imagename='BarLine3';

proc sgplot data=FILTER_FOR_REGION_DATA;

  title 'My Graph';

   vbar month / response= Count_1 group=region nostatlabel datalabel dataskin=gloss name='a' nofill;

  vbar month / response= Count_2 group=region  nostatlabel datalabel dataskin=gloss name='a' nofill;

  vline month / response= Percent_1 group=region nostatlabel y2axis lineattrs=(thickness=5) datalabel=RSQUOTETOBMPREM_NB;

  vline month / response= Percent_2 group=region nostatlabel y2axis lineattrs=(thickness=5) datalabel=RSQUOTETOBMPREM_RNL;

  yaxis min=0 offsetmin=0 values=(0 to 1500 by 100) grid label=’';

  y2axis min=0 offsetmin=0 label='title';

  xaxis display=(nolabel);

keylegend 'a' / title='';

run;

This works ok as you can see the bars through each other. I’d love to have them side by side.

[djrisks]

Hi, I'm guessing that you may need to use the GROUPDISPLAY = CLUSTER to achieve the side by side look. Can you please send me your dataset or upload a picture so I can see how it looks at the moment?

Thanks.

[tgalliga]

Can you use the dataset in the my original post? That is the data what I want to graph.

[GraphGuy]

I think this code will create the a dataset containing the data in the printed table:

data FILTER_FOR_REGION_DATA;

infile datalines dlm=':';

length Region $10;

format month date9.;

format Percent_1 Percent_2 percent7.0;

informat month anydtdte10.;

informat Percent_1 Percent_2 percent7.0;

input Region month Count_1 Count_2 Percent_1 Percent_2;

datalines;

North:01/01/2000:5:10:25%:27%

North:01/01/2000:10:15:10%:30%

;

run;

[DanH_sas]

I'm not sure of your SAS version, but try using the DISCRETEOFFSET and BARWIDTH options together:

vbar month / response= Count_1 group=region discreteoffet=-0.2 barwidth=0.4 nostatlabel datalabel dataskin=gloss name='a' nofill;

  vbar month / response= Count_2 group=region discreteoffet=0.2 barwidth=0.4 nostatlabel datalabel dataskin=gloss name='a' nofill;

[tgalliga]

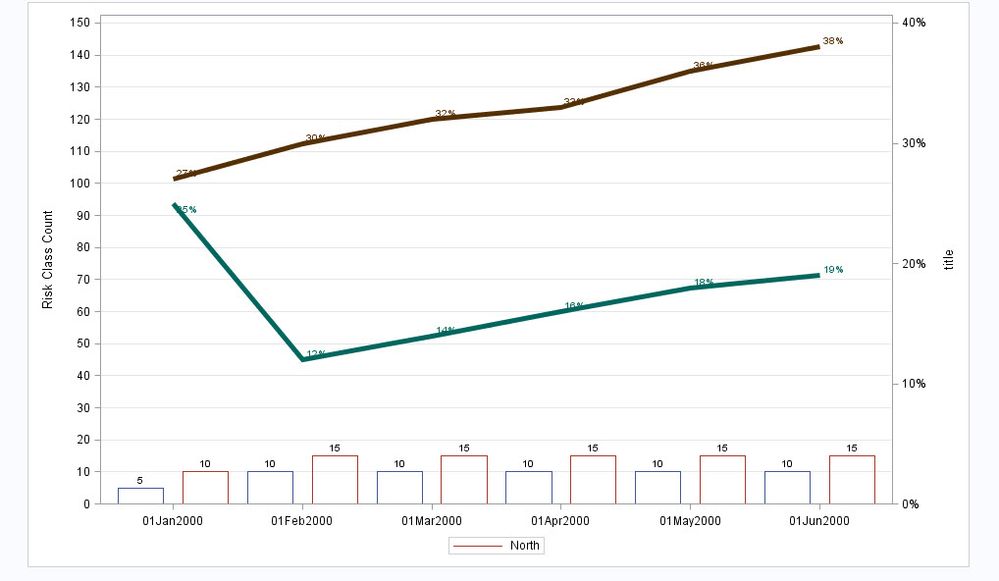

hi folks, here is the full code. It works. Thank you so much. i think the graph looks great.

data FILTER_FOR_REGION_DATA;

infile datalines dlm=':';

length Region $10;

format month date9.;

format Percent_1 Percent_2 percent7.0;

informat month anydtdte10.;

informat Percent_1 Percent_2 percent7.0;

input Region month Count_1 Count_2 Percent_1 Percent_2;

datalines;

North:01/01/2000:5:10:25%:27%

North:01/02/2000:10:15:12:30%

North:01/03/2000:10:15:14%:32%

North:01/04/2000:10:15:16%:33%

North:01/05/2000:10:15:18%:36%

North:01/06/2000:10:15:19%:38%

run;

proc sgplot data=work.FILTER_FOR_REGION_DATA;

  title 'My Graph';

vbar month / response= Count_1 group=region discreteoffet=-0.25 barwidth=0.35 nostatlabel datalabel dataskin=gloss name='a' nofill;

vbar month / response= Count_2 group=region discreteoffet=0.25 barwidth=0.35 nostatlabel datalabel dataskin=gloss name='a' nofill;

vline month / response=Percent_1 group=region y2axis lineattrs=(thickness=5) datalabel=Percent_1;

vline month / response=Percent_2 group=region y2axis lineattrs=(thickness=5) datalabel=Percent_2;   yaxis min=0 offsetmin=0 values=(0 to 150 by 10) grid label='Risk Class Count';   y2axis min=0 offsetmin=0 label='title';   xaxis display=(nolabel);

keylegend 'a' / title='';

run;

[djrisks]

Thank you for the code to generate the dataset Robert.

Tgalliga, the GROUPDISPLAY = CLUSTER option I mentioned is when the data is in a different format. I suggest that you use Dan's method for the side by side look.

Thanks.
