Representation of a histogram stacked at 100%

[Gick]

/* Creating the table */
data piechart;
  input secteur $ Annee_2017 Annee_2018 Annee_2019;
  datalines;
  A 35 12 3
  B 10 2 0
  C 22 22 13
  D 40 67 7
  ;
run;

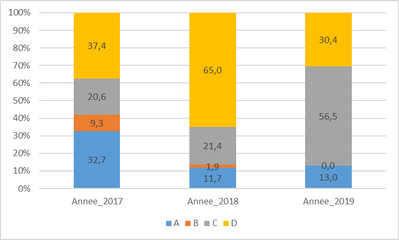

I wish to have this graph (in image above).

Which procedure allows to have it.

Best regards,

Gick

[yabwon · Accepted solution]

for start use this:

data piechart;
  input secteur $ Annee_2017 Annee_2018 Annee_2019;
  datalines;
  A 35 12 3
  B 10 2 0
  C 22 22 13
  D 40 67 7
  ;
run;

proc transpose data=piechart out=temp;
by secteur;
var Annee_2017 Annee_2018 Annee_2019;
run;
data temp;
set temp;
period = _name_;
drop _name_;
run;
proc sort data=temp;
  by period secteur;
run;

proc freq data=temp noprint;
by period;
table secteur / out=temp1;
weight col1;
run;

PROC SGPLOT DATA=temp1;
  VBAR period /
  GROUP=secteur
  RESPONSE=percent
  SEGLABEL
  SEGLABELFITPOLICY= NONE
;
RUN;

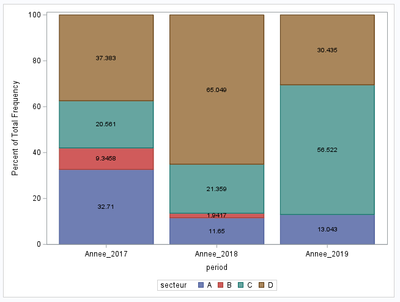

you should get (even in M3):

then read about:

1) proc SGPLOT VBAR: https://documentation.sas.com/doc/en/pgmsascdc/9.4_3.5/grstatproc/n0p7vdd69sgf3wn1479qxqxuryrt.htm

2) some general overview: https://www.lexjansen.com/wuss/2008/how/how05.pdf

3) blog posts about plotting with SGPLOT:

a) https://blogs.sas.com/content/tag/proc-sgplot/

b) https://blogs.sas.com/content/tag/sgplot-procedure/

Bart

[Rick_SAS]

Read "Construct a stacked bar chart in SAS where each bar equals 100%"

If you don't need the labels for each segment, PROC FREQ can create the entire plot. FOr more control, use PROC SGPLOT, as shown:

proc transpose data=piechart Name=Period out=temp(rename=(col1=Count));
by secteur;
var Annee_2017 Annee_2018 Annee_2019;
run;

/* stacked, but no bar labels */
proc freq data=temp;
tables Period*secteur / plots=freqplot(twoway=stacked scale=grouppct);
weight Count;
run;
