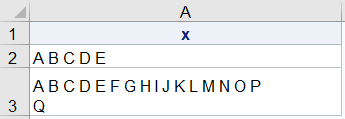

If I run the code below, the second string displays in the resulting file with the "Q" below the A thru P, though there appears to be sufficient space for the Q to appear directly to the right of the P. I can solve this by adding options(flow="tables") to the ods excel statement, which stops the Q from wrapping onto the next line. The issue is that, when I do this, the height of the cell containing the second string is still greater than the height of the cell containing the first string. Is there a way for the height of the taller row to be reduced so that it matches the height of the shorter row (other than manually changing it within Excel)? I tried cellheight but that didn't seem to work.
Thanks!
ods excel file = "[filepath].xlsx";
data d;
length x $ 100;
x = "A B C D E"; output;
x = "A B C D E F G H I J K L M N O P Q"; output;
run;
proc report data = d;
column x;
define x / style(column) = [cellwidth = 2 in] display;
run;
ods excel close;
ods excel file = "c:\temp\temp.xlsx";
data d;
length x $ 100;
x = "A B C D E"; output;
x = "A B C D E F G H I J K L M N O P Q"; output;
run;
proc report data = d nowd;
column x;
define x / style(column) = [tagattr='wrap:no'] display;
run;
ods excel close;

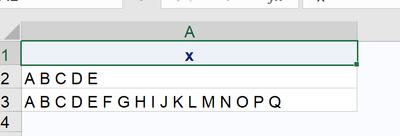

Just add OPTIONS(FLOW='Tables') to the ods excel file line
ods excel file = '~/test/wrap.xlsx' OPTIONS(FLOW='Tables');
data d;
length x $ 100;
x = "A B C D E"; output;
x = "A B C D E F G H I J K L M N O P Q"; output;
run;
proc report data = d;
column x;
define x / display;
run;
ods excel close;
To fit within 2 in you may need to use a smaller font, otherwise it would wrap with the default font
ods excel file = '~/test/wrap.xlsx'
OPTIONS(FLOW='Tables' absolute_column_width='2.1in');

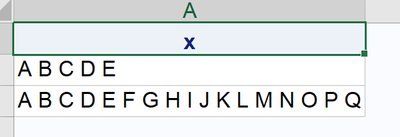

It seems that absolute_column_width may work differently from cellwidth. If I set a width of 2 inches using absolute_column_width, I get a shorter width than if I set a width of 2 inches using cellwidth. Interestingly, though, if I set a width of 2.2 inches using absolute_column_width, then this comes close to providing a solution to my problem, as the resulting file has the two rows printed without wrapping, with equal row heights, and without a greater width than the width used from my original example (i.e., 2.2 inches using absolute_column_width actually provides a shorter width than 2 inches using cellwidth).
However, my understanding is that absolute_column_width would set the length of all columns in the table, right? Ultimately, the application for this would involve a table with multiple columns, where I will want it to be possible for different columns to have different widths.
For example, if I have something like this, where I want columns x and y to have different widths, I'm back to having the same problem where row 3 has unnecessary extra vertical height.
ods excel file = "[filepath].xlsx" OPTIONS(FLOW='Tables');
data d;
length x y $ 100;
x = "A B C D E"; y = "A B C D E"; output;
x = "A B C D E F G H I J K L M N O P Q"; y = "A B C D E F G H I J K L M N O P Q"; output;
run;
proc report data = d;
column x y;
define x / style(column) = [cellwidth = 3 in] display;
define y / style(column) = [cellwidth = 2 in] display;
run;
ods excel close;
