Need help with correct counting with Proc SQL

[SabineT]

Dear experts,

I have a dataset containing columns for ID, species, product and problem. In the end I want to calculate the Odds Ratio for each pair of product and problem per species, meaning that I have to determine the values for a 2x2 crosstable for each row. Each ID can have multiple values for product and problem (but only one species). It is important, that each ID is counted only once in the crosstable.

I'm working with SAS 9.4. Here is an example dataset:

data raw;
	input id species $ product $ problem $15-25;
	datalines;
123	dog	prod_a deafness
123	dog	prod_a headshake
123	dog	prod_b deafness
123	dog	prod_b headshake
345 dog prod_a itching
345 dog prod_c itching
234	cat prod_c hair_loss
567 cat prod_d hair_loss
678 cat prod_e deafness
321	dog	prod_a deafness
321	dog	prod_a headshake
321	dog	prod_c deafness
321	dog	prod_c headshake
543 dog prod_a itching
543 dog prod_c itching
432	cat prod_c hair_loss
765 cat prod_d hair_loss
876 cat prod_e deafness
		;
run;

After sorting by species to enable species specific analyses, I want to count the IDs for my crosstable under the following conditions:

A = [IDs with the product and with the problem]

B = [IDs with the product but without the problem]

C = [IDs without the product but with the problem]

D = [IDs without the product and without the problem]

The ROR is then calculated with (A/B)/(C/D).

This is my code:

proc sql;
    select distinct raw.species, raw.product, raw.problem,
           (select count(id) from raw sub
            where sub.species = raw.species
			and sub.id ^= raw.id
            and sub.product = raw.product
            and sub.problem = raw.problem) as a,
			(select count(id) from ror sub
            where sub.species = raw.species
			and sub.id ^= raw.id
            and sub.product = raw.product
            and sub.problem ^= raw.problem) as b,
			(select count(id) from raw sub
            where sub.species = raw.species
			and sub.id ^= raw.id
            and sub.product ^= raw.product
            and sub.problem = raw.problem) as c,
			(select count(id) from raw sub
            where sub.species = raw.species
			and sub.id ^= raw.id
            and sub.product ^= raw.product
            and sub.problem ^= raw.problem) as d,
		(calculated a/ calculated b)/(calculated c/calculated d) as ror
 from raw;
quit;

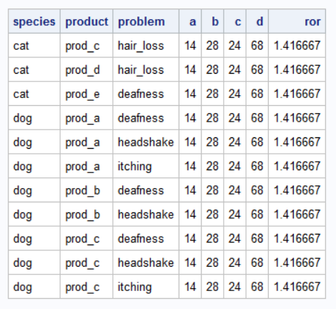

This is the result:

failed_case_counts

Now I have two problems:

1. „a“ is expected to be at least 1, but the code does not count the ID itself (that's logic, as it counts where sub.id ^= raw.id)
2. From the preliminary results, I can see, that with this code each ID can be counted more than once (thus contributing to more than one field of the 2x2 table). This must not be the case.

Is there anyone out there, who can help with the solution? I hope I made myself clear enough...

Looking forward to your hints and ideas!

Kind regards,

SabineT

[PaigeMiller]

I'm kind of lost by your definitions of A B C D.

I feel as if you are working very hard to do something relatively simple, but as I'm not sure what you are trying to do, I can't really say what the simple solution is.

Let me guess what you want ... do you want a table which has all possible combinations of species, product and problem, and associated counts? Am I close, or way off?

[SabineT]

Hi PaigeMiller,

many thanks for taking care!

I even thought that my task is quite simple, but I went a lot of ways and this time the output appears close to the target.

What I want to calculate is the frequency of each pair of product and problem (drug-event-pair -> DEP) per species. The ratio (ROR) should tell me if the frequency is higher than expected (>1). This means a potential signal in pharmacovigilance (= monitoring the benefit-risk profile of drugs). In the very end I am not interested in the table but only in the ROR.

A is the number of DEPs of interest. B is the number of events with the same product but without the problem. C is the number of events with the same problem but without the drug of interest. And under D all events should be counted that do neither contain the event nor the drug of interest.

I think the problem is that SAS checks the rows and I have to find a way that it checks all rows for one ID to assign the ID to the right field of the crosstable.

I hope that helps? 🙄

Regards, Sabine

[PaigeMiller]

---

@SabineT wrote:

A is the number of DEPs of interest. B is the number of events with the same product but without the problem. C is the number of events with the same problem but without the drug of interest. And under D all events should be counted that do neither contain the event nor the drug of interest.🙄 I hope that helps?

---

It doesn't really help, when I say I don't understand what A B C D is, to repeat the definition with different words. And I don't know what "DEPs" means. I want more explanation. I want examples. Walk me through how A is calculated in the sample data provided. Walk me through how B and C and D is calculated in the sample data provided.

By the way, in general, when code isn't giving you the right answer, we need to know what the right answer is.

[SabineT]

Sorry, I tried to keep it short - but obviously not simple...

With the sample data I would expected the following output:

expected output

I should have included any reports with "new" symptoms to have some counts for B... 🤔

For car I counted the IDs that contain prod_c and hair_loss as 'a' for that drug event pair. It is 234 and 432, so 2 IDs. Then I look for any other ID containing prod_c but not hair_loss, but there i none (b=0). For 'c' I count those IDs that do not have prod_c but hair_loss. 567 and 765 satisfy this condition, so c = 2. 'd' is the count of IDs that contain neither prod_c nor hair_loss. Here we have 678 and 876 (d=2). ROR can't be calculated since 0 is included as denominator.

I listed the expected counts in the following table:

species	product	problem	a	IDs	b	IDs	c	IDs	d	IDs
dog	prod_a	deafness	2	123, 321	0		0		0
dog	prod_a	headshake	2	123, 321	0		0		0
dog	prod_b	deafness	1	123	0		1	321	0
dog	prod_b	headshake	1	123	0		1	321	0
dog	prod_a	itching	1	321	0		0		0
dog	prod_c	deafness	1	321	0		1	123	0
dog	prod_c	headshake	1	321	0		1	123	0
dog	prod_c	itching	1	321	0		0		1	123
cat	prod_c	hair_loss	2	234, 432	0		2	567, 765	2	678, 876
cat	prod_d	hair_loss	2	567, 765	0		2	234, 432	2	678, 876
cat	prod_e	deafness	2	678, 876	0		0		4	234, 432, 567, 765

You see the sum of  A to D should always be the sum of IDs per species.

And as I describe the steps to walk through the dataset, I understand that the conditions should not be simply connected with AND in the code...

[Tom]

I suspect that you are using the letters A,B,C,D to refer to the cells in a 2 by 2 table.

data example;
  input treated sick label $;
cards;
1 1 A
1 0 B
0 1 C
0 0 D
;

So to get that 2x2 table why not just convert the way you have the data so that you have these two binary variables?

It is hard to get the negative cells from the way you stored the data.  Can you explain the logic of how to calculate them?

So for a particular ID to you want to use it for all of the possible products?  Or only the products that it ever received?  Similarly do you want to count that ID for every possible disease? Or only the diseases that you have included for it for some specific product?

If you want to generate 0/1 flags for every possible combination you could do something like this:

data raw;
	input id species :$10.  product :$10. problem :$20. ;
datalines;
123	dog	prod_a deafness
123	dog	prod_a headshake
123	dog	prod_b deafness
123	dog	prod_b headshake
345 dog prod_a itching
345 dog prod_c itching
234	cat prod_c hair_loss
567 cat prod_d hair_loss
678 cat prod_e deafness
321	dog	prod_a deafness
321	dog	prod_a headshake
321	dog	prod_c deafness
321	dog	prod_c headshake
543 dog prod_a itching
543 dog prod_c itching
432	cat prod_c hair_loss
765 cat prod_d hair_loss
876 cat prod_e deafness
;

proc sort data=raw ;
  by id species product problem ;
run;

proc sql ;
  create table skeleton as
  select *
  from (select distinct id,species from raw)
     , (select distinct product from raw)
     , (select distinct problem from raw)
  order by id, species, product, problem
  ;
quit;

data want ;
  merge raw (in=in1) skeleton;
  by id species product problem ;
  present=in1;
run;

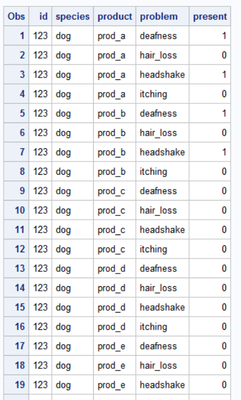

So that you get a table something like this:

From which it should be easier to calculate your A,B,C,D numbers.

[PaigeMiller]

This is helpful, but I'm still not there.

Questions:

1. Why does dog/prod_a/itching have only 1 for A? I see two dog/prod_a/itching in the raw data.
2. What would cause B to be greater than zero? If there are no examples of this in the data, could you modify the data so there is an example or two where B>0? Otherwise, I can't program it.
3. What does this mean? "It is important, that each ID is counted only once in the crosstable." When an ID appears more than once, which of the multiple records for that ID are not used?

[SabineT]

1. You're absolutely right - I "lost" IDs 345 and 543 in my data for counting!
2. I will add some data contributing to B.
3. I stated this because SAS currently counts each ID more than once. But if I'm not on the wrong track, each ID falls in one of the categories A, B, C or D only.
>> So I will rework on my sample data and the expected output.

[SabineT]

Hello everyone,

I hope you stay tuned 😅

Here is the optimised dataset:

data raw;
	input id species $ product $ problem $15-25;
	datalines;
123	dog	prod_a deafness
123	dog	prod_a headshake
123	dog	prod_b deafness
123	dog	prod_b headshake
345 dog prod_a itching
345 dog prod_c itching
234	cat prod_c hair_loss
567 cat prod_d hair_loss
678 cat prod_e deafness
321	dog	prod_a deafness
321	dog	prod_a headshake
321	dog	prod_c deafness
321	dog	prod_c headshake
543 dog prod_a itching
543 dog prod_c itching
432	cat prod_c hair_loss
765 cat prod_d hair_loss
876 cat prod_e deafness
111	dog prod_f	hair_loss
222	dog prod_g	hair_loss
333	dog prod_a	vomit
444	dog prod_c	vomit
555	dog	prod_g	hair_loss
555	dog	prod_h	hair_loss
666	cat	prod_a	vomit
666	cat	prod_c	vomit
777	cat	prod_c	deafness
888	cat	prod_g	hair_loss
999	cat	prod_e	vomit
999	cat	prod_e	hair_loss

		;
run;

the expected output:

expected output 2

(that is telling me - among other things - that the odds for deafness with prod_e are 12fold higher than for other prod)

I skipped the list of contributing IDs as it was postflooding...

[SabineT]

Did I scare you off!?

I tried to abstract my requirement as follows:

for each row do
	A = 1
        B = 0
        C = 0
        D = 0
	check all rows for each id together
            different id?
		yes: does id contain the same species? >
			yes: does id contain the same product? >
				yes: does id contain the same problem? >
					yes: A + 1
					no: B + 1
					no: does id contain the same problem? >
						yes: C + 1
						no: D + 1
				no: continue with the next id
               no: continue with the next row

Who is confident that there is a solution for this in SAS?

I am lost in reading threads about arrays and loops 😓

[Tom · Accepted solution]

You seem to be trying to make a 2x2 table.  If you do a proc summary with two class variables and request all of the possible combinations SAS will create a _TYPE_ variable that goes from 0 to 3 with 0 meaning the overall summary, 1 being the summary by just the second class variable, 2 being the summary be just the first class variable and then 3 being the summary by both class variables.   You can also think of N1 and N2 as being the row and column sum and N0 as the overall sum.

So if we treat those four summaries as N0 to N3 the table below shows the relationship between your A,B,C,D labels for the cells and how to calculate them based on the summaries.

V-Product      Problem--->	Present	Absent	Total
Present	A =N3	B=N1-N3	N1
Absent	C = N2-N3	D = N0-N1-N2+N3	N0-N2
Total	N2	N0-N2	N0

So given your example data:

Spoiler

data raw;
  input species $ product $ problem :$20. id;
datalines;
cat prod_a vomit 666
cat prod_c deafness 777
cat prod_c hair_loss 234
cat prod_c hair_loss 432
cat prod_c vomit 666
cat prod_d hair_loss 567
cat prod_d hair_loss 765
cat prod_e deafness 678
cat prod_e deafness 876
cat prod_e hair_loss 999
cat prod_e vomit 999
cat prod_g hair_loss 888
dog prod_a deafness 123
dog prod_a deafness 321
dog prod_a headshake 123
dog prod_a headshake 321
dog prod_a itching 345
dog prod_a itching 543
dog prod_a vomit 333
dog prod_b deafness 123
dog prod_b headshake 123
dog prod_c deafness 321
dog prod_c headshake 321
dog prod_c itching 345
dog prod_c itching 543
dog prod_c vomit 444
dog prod_f hair_loss 111
dog prod_g hair_loss 222
dog prod_g hair_loss 555
dog prod_h hair_loss 555
;

We can create datasets with the N0, N1, N2 and N3 variables this way with SQL.

proc sql;
create table n0 as select species,count(distinct id) as n0 from raw group by 1;
create table n1 as select species,product,count(distinct id) as n1 from raw group by 1,2 ;
create table n2 as select species,problem,count(distinct id) as n2 from raw group by 1,2 ;
create table n3 as select a.species,a.product,a.problem,sum(not missing(b.id)) as n3
from (select species,product,problem,id
  from (select distinct id,species from raw)
     , (select distinct product from n1)
     , (select distinct problem from n2)
     ) a
  natural left join raw b
  group by 1,2,3
;

And you can then combine them and also calculate A, B, C, D and ROR this way:

create table summary as
select *
     , n3 as A
     , n1-n3 as B
     , n2-n3 as C
     , n0-n1-n2+n3 as D
     ,(n3/(n1-n3))/((n2-n3)/(n0-n1-n2+n3)) as ROR
from n0 natural join n1 natural join  n2 natural join n3
;

Results:

Obs    species    product    problem      n3    n0    n1    n2    A    B    C    D      ROR

  1      cat      prod_a     deafness      0    10     1     3    0    1    3    6     0.0000
  2      cat      prod_a     hair_loss     0    10     1     6    0    1    6    3     0.0000
  3      cat      prod_a     vomit         1    10     1     2    1    0    1    8      .
  4      cat      prod_c     deafness      1    10     4     3    1    3    2    4     0.6667
  5      cat      prod_c     hair_loss     2    10     4     6    2    2    4    2     0.5000
  6      cat      prod_c     vomit         1    10     4     2    1    3    1    5     1.6667
  7      cat      prod_d     deafness      0    10     2     3    0    2    3    5     0.0000
  8      cat      prod_d     hair_loss     2    10     2     6    2    0    4    4      .
  9      cat      prod_d     vomit         0    10     2     2    0    2    2    6     0.0000
 10      cat      prod_e     deafness      2    10     3     3    2    1    1    6    12.0000
 11      cat      prod_e     hair_loss     1    10     3     6    1    2    5    2     0.2000
 12      cat      prod_e     vomit         1    10     3     2    1    2    1    6     3.0000
 13      cat      prod_g     deafness      0    10     1     3    0    1    3    6     0.0000
 14      cat      prod_g     hair_loss     1    10     1     6    1    0    5    4      .
 15      cat      prod_g     vomit         0    10     1     2    0    1    2    7     0.0000
 16      dog      prod_a     deafness      2     9     5     2    2    3    0    4      .
 17      dog      prod_a     hair_loss     0     9     5     3    0    5    3    1     0.0000
 18      dog      prod_a     headshake     2     9     5     2    2    3    0    4      .
 19      dog      prod_a     itching       2     9     5     2    2    3    0    4      .
 20      dog      prod_a     vomit         1     9     5     2    1    4    1    3     0.7500
 21      dog      prod_b     deafness      1     9     1     2    1    0    1    7      .
 22      dog      prod_b     hair_loss     0     9     1     3    0    1    3    5     0.0000
 23      dog      prod_b     headshake     1     9     1     2    1    0    1    7      .
 24      dog      prod_b     itching       0     9     1     2    0    1    2    6     0.0000
 25      dog      prod_b     vomit         0     9     1     2    0    1    2    6     0.0000
 26      dog      prod_c     deafness      1     9     4     2    1    3    1    4     1.3333
 27      dog      prod_c     hair_loss     0     9     4     3    0    4    3    2     0.0000
 28      dog      prod_c     headshake     1     9     4     2    1    3    1    4     1.3333
 29      dog      prod_c     itching       2     9     4     2    2    2    0    5      .
 30      dog      prod_c     vomit         1     9     4     2    1    3    1    4     1.3333
 31      dog      prod_f     deafness      0     9     1     2    0    1    2    6     0.0000
 32      dog      prod_f     hair_loss     1     9     1     3    1    0    2    6      .
 33      dog      prod_f     headshake     0     9     1     2    0    1    2    6     0.0000
 34      dog      prod_f     itching       0     9     1     2    0    1    2    6     0.0000
 35      dog      prod_f     vomit         0     9     1     2    0    1    2    6     0.0000
 36      dog      prod_g     deafness      0     9     2     2    0    2    2    5     0.0000
 37      dog      prod_g     hair_loss     2     9     2     3    2    0    1    6      .
 38      dog      prod_g     headshake     0     9     2     2    0    2    2    5     0.0000
 39      dog      prod_g     itching       0     9     2     2    0    2    2    5     0.0000
 40      dog      prod_g     vomit         0     9     2     2    0    2    2    5     0.0000
 41      dog      prod_h     deafness      0     9     1     2    0    1    2    6     0.0000
 42      dog      prod_h     hair_loss     1     9     1     3    1    0    2    6      .
 43      dog      prod_h     headshake     0     9     1     2    0    1    2    6     0.0000
 44      dog      prod_h     itching       0     9     1     2    0    1    2    6     0.0000
 45      dog      prod_h     vomit         0     9     1     2    0    1    2    6     0.0000

If you don't want all of the possible combinations you could limit N3 to just the actual combinations that appear.

That is easier to calculate:

create table n3 as select species,product,problem,count(distinct id) as n3 from raw group by 1,2,3 ;

[SabineT]

Hello Tom,
you made my day! Without your explanations it would be pure magic... With your explanations (especially on N0-N3) I feel that I will fully understand your code as soon as I am familiar with the SQL join function.
Many thanks!!!
Sabine

[Sajid01]

Hello @SabineT
As you pointed out correctly there is an issue with your SQL Code - the way you have performed the self join.
I am posting the updated SQL Code.

proc sql;
    select distinct raw.species, raw.product, raw.problem,
           (select count(r.id) from raw r,  raw s
            where s.species = r.species
			and s.id ^= r.id
            and s.product = r.product
            and s.problem = r.problem) as a ,
			(select count(r.id) from raw r,  raw s
            where s.species = r.species
			and s.id ^= r.id
            and s.product = r.product
            and s.problem ^= r.problem) as b,
			(select count(r.id) from  raw r, raw s
            where s.species = r.species
			and s.id ^= r.id
            and s.product ^= r.product
            and s.problem = r.problem) as c,
			(select count(r.id) from  raw r, raw s
            where s.species = r.species
			and s.id ^= r.id
            and s.product ^= r.product
            and s.problem ^= r.problem) as d,
		(calculated a/ calculated b)/(calculated c/calculated d) as ror
 from raw;
quit;

The result is as follows

[SabineT]

Hi Sajid01,

Thanks a lot for the helping step! Now the code is counting. But the result remains weired. How can D be 68 if there are only 18 observations? I'm posting the output again as it appears that the format crashed in your output:

results2

As posted to PaigeMiller the problem is that I don`t want to count observations but IDs (per species) depending on the conditions product and problem. It appears that SAS checks now the rows and counts the row once for each satisfied condition. So I am afraid, there is a very relevant step missing... Do you have an idea?

Regards, Sabine

[Sajid01]

We are doing a self join. It is a sort of Cartesian join (18 x 18=324) minus the filter conditions.
Please confirm if the logic in SQL is correct. I have used your logic and made only a minor correction to the SQL.
The data is also what you have provided.
