How To - Shows PROC TABULATE's Empty Rows

[turcay]

Hello everyone,

As you know, PROC TABULATE does not bring the values, if the range doesn't include values . For example, in my following sample. there is no value 0.0-0.2 range for this sample.However, it could have values for 0.0-0.2 range. I mean that for this sample, it doesn't include value for the range 0.0-0.2 but for another data set it can includes values.

So I want to show the range without considering whether the range includes values or not.

Here is my sample code

Data Have;
Length Target 8 Predicted 8 Bucket $ 30;
Infile Datalines Missover;
Input Target Predicted Bucket;
Datalines;
0 0.1 0.2-0.4
0 0.3 0.2-0.4
0 0.7 0.4-0.6
0 0.5 0.6-0.8
0 0.9 0.8-1.0
1 0.1 0.2-0.4
1 0.3 0.2-0.4
1 0.7 0.4-0.6
1 0.5 0.6-0.8
1 0.9 0.8-1.0
0 0.1 0.2-0.4
0 0.3 0.2-0.4
0 0.7 0.4-0.6
0 0.5 0.6-0.8
0 0.9 0.8-1.0
1 0.1 0.2-0.4
1 0.3 0.2-0.4
1 0.7 0.4-0.6
1 0.5 0.6-0.8
1 0.9 0.8-1.0
;
Run;

Proc Tabulate Data=Have;
   Var Predicted;
   Class Bucket;
   Class Target;
   Classlev Target;
   Classlev Bucket;
   Table Bucket , Predicted*Mean  Target*(N ColPctN) N ColPctN;

Run;

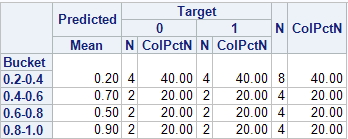

Here is the output of my sample

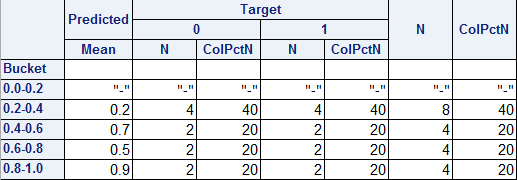

Here is my desired output

How can I build this structure? Can somebody help me, please?

Thank you

[Ksharp]

Use CLASSDATA=

Data Have;
Length Target 8 Predicted 8 Bucket $ 30;
Infile Datalines Missover;
Input Target Predicted Bucket;
Datalines;
0 0.1 0.2-0.4
0 0.3 0.2-0.4
0 0.7 0.4-0.6
0 0.5 0.6-0.8
0 0.9 0.8-1.0
1 0.1 0.2-0.4
1 0.3 0.2-0.4
1 0.7 0.4-0.6
1 0.5 0.6-0.8
1 0.9 0.8-1.0
0 0.1 0.2-0.4
0 0.3 0.2-0.4
0 0.7 0.4-0.6
0 0.5 0.6-0.8
0 0.9 0.8-1.0
1 0.1 0.2-0.4
1 0.3 0.2-0.4
1 0.7 0.4-0.6
1 0.5 0.6-0.8
1 0.9 0.8-1.0
;
Run;
proc sql;
create table classdata as
select * from
 (select distinct Bucket from have union select '0.0-0.2' from have(obs=1)),
 (select distinct Predicted from have),
 (select distinct Target from have);
quit;
Proc Tabulate Data=Have classdata=classdata;
   Var Predicted;
   Class Bucket;
   Class Target;
   Classlev Target;
   Classlev Bucket;
   Table Bucket , Predicted*Mean  Target*(N ColPctN) N ColPctN/misstext='"-"';

Run;

[turcay]

@Ksharp,

Thank you very much for trying to help me.

But instead of "0.0-0.2" what the range of "0.2-0.4" was empty, For example, If I change my sample as below, so I need to change your code as below too.

Instead of this method, Can PreLoadFmt format is more efficent than this?

Data Have;
Length Target 8 Predicted 8 Bucket $ 30;
Infile Datalines Missover;
Input Target Predicted Bucket;
Datalines;
0 0.1 0.0-0.2
0 0.3 0.0-0.2
0 0.7 0.4-0.6
0 0.5 0.0-0.2
0 0.9 0.8-1.0
1 0.1 0.0-0.2
1 0.3 0.0-0.2
1 0.7 0.4-0.6
1 0.5 0.0-0.2
1 0.9 0.8-1.0
0 0.1 0.0-0.2
0 0.3 0.0-0.2
0 0.7 0.4-0.6
0 0.5 0.0-0.2
0 0.9 0.8-1.0
1 0.1 0.0-0.2
1 0.3 0.0-0.2
1 0.7 0.4-0.6
1 0.5 0.0-0.2
1 0.9 0.8-1.0
;
Run;
Proc sql;
create table classdata as
select * from
 (select distinct Bucket from have
union select '0.0-0.2' from have(obs=1)
union select '0.2-0.4' from have(obs=1)
union select '0.4-0.6' from have(obs=1)
union select '0.6-0.8' from have(obs=1)
union select '0.8-1.0' from have(obs=1)),
 (select distinct Predicted from have),
 (select distinct Target from have);
Quit;

Proc Tabulate Data=Have classdata=classdata;
   Var Predicted;
   Class Bucket;
   Class Target;
   Classlev Target;
   Classlev Bucket;
   Table Bucket , Predicted*Mean  Target*(N ColPctN) N ColPctN / misstext='"-"';
Run;

[Reeza]

Create a format and use PRELOADFMT option.

If you search on here or lexjansen.com you'll find many examples of the implementation.

[turcay]

@Reeza,

Thank you very much for trying to help me.

I tried to benefit from following link, but I couldn't succeed, it seems little bit complicated, can you help me to resolve this issue, please?

http://support.sas.com/resources/papers/proceedings11/239-2011.pdf

PROC FORMAT;
Value Bucket 0.0-0.2="0.0-0.2"
			 0.2-0.4="0.2-0.4"
			 0.4-0.6="0.4-0.6"
			 0.6-0.8="0.6-0.8"
			 0.8-1.0="0.8-1.0";
Run;
Proc Tabulate Data=Have;
   Var Predicted;
   Class Bucket / PreLoadFmt;
   Class Target;
   ClassLev Target;
   ClassLev Bucket;
/*   Format Bucket.;*/
   Table Bucket , Predicted*Mean  Target*(N ColPctN) N ColPctN  /Printmiss;
Run;

Thank you

[Reeza]

You need the format applied to bucket variable. It looks like you started but didn't finish that line.

This is also assumes bucket is a continuous variable.

[turcay]

@Reeza,Sometimes like this?

PROC FORMAT;
Value $Bucket 0.0-0.2="0.0-0.2"
			 0.2-0.4="0.2-0.4"
			 0.4-0.6="0.4-0.6"
			 0.6-0.8="0.6-0.8"
			 0.8-1.0="0.8-1.0";
Run;
Proc Tabulate Data=Have;
   Var Predicted;
   Class Bucket / PreLoadFmt;
   Class Target;
   ClassLev Target;
   ClassLev Bucket;
   Format Bucket $Bucket.;
   Table Bucket , Predicted*Mean  Target*(N ColPctN) N ColPctN  /Printmiss MissText='"-"';
Run;

[Reeza]

1. Are there any errors in your log? Your format doesn't look correct

2. Does it do what you want?

[turcay]

@Reeza,

1-There aren't any error in my log. How can I fix my format?

2-Yes, it does.

Can you tell me that how can I write my format correct?

[Reeza]

Bucket is a character variable. The values you've defined for the format are numeric.

[Ksharp · Accepted solution]

You need MISSING option.

Data Have;
Length Target 8 Predicted 8 Bucket $ 30;
Infile Datalines Missover;
Input Target Predicted Bucket;
Datalines;
0 0.1 0.0-0.2
0 0.3 0.0-0.2
0 0.7 0.4-0.6
0 0.5 0.0-0.2
0 0.9 0.8-1.0
1 0.1 0.0-0.2
1 0.3 0.0-0.2
1 0.7 0.4-0.6
1 0.5 0.0-0.2
1 0.9 0.8-1.0
0 0.1 0.0-0.2
0 0.3 0.0-0.2
0 0.7 0.4-0.6
0 0.5 0.0-0.2
0 0.9 0.8-1.0
1 0.1 0.0-0.2
1 0.3 0.0-0.2
1 0.7 0.4-0.6
1 0.5 0.0-0.2
1 0.9 0.8-1.0
;
Run;

PROC FORMAT;
Value $Bucket 0.0-0.2="0.0-0.2"
			 0.2-0.4="0.2-0.4"
			 0.4-0.6="0.4-0.6"
			 0.6-0.8="0.6-0.8"
			 0.8-1.0="0.8-1.0";
Run;
Proc Tabulate Data=Have;
   Var Predicted;
   Class Bucket / PreLoadFmt missing;
   Class Target;
   ClassLev Target;
   ClassLev Bucket;
   Format Bucket $Bucket.;
   Table Bucket , Predicted*Mean  Target*(N ColPctN) N ColPctN  /Printmiss MissText='"-"';
Run;

[turcay]

Thank you very much both @Ksharp and @Reeza 🙂

[Ksharp]

I think MISSING option is surplus . PRINTMISS is good enough .

[turcay]

Okay, I will consider it Xia, thank you 🙂
