Hybrid Censoring

[Salah]

Hello

I am generating a vector X_p of size (m x1) the entries are failure times so they are ranked from smallest to largest. I set the study to end at time T(say 0.9). If (X_1,...., X_m) all occurred before T then the program is carried on to find the MLE and other estimators. If time T occurs before getting my m failures then  I have to extract the values that come after T (say m-q), then use them to generate new values from the truncated function.

The problem that I am facing now is that these new data (I call it X_q_m) have a failure time that is smaller than Time T!!! I tried sorting the extracted values before using them to generate the new data but I failed.

Can anyone help me solving this problem, please?

proc iml;
   n=30;
   m=20;
   R=J(m, 1, 0);
   R[m]=10;
   T=1.3;
   seed=2;
   k=1;
   alpha=1;
   beta=1;

   Do N1=1 to K;
      ** progressive censoring ***;
      ****************************;
      W=J(m, 1, 0);
      V=J(m, 1, 0);
      X_p=J(m, 1, 0);
      X_A=J(m, 1, 0);
      U=J(m, 1, 0);
      X=J(m, 1, 0);

      do i=1 to m;
         W[i]=Uniform(seed);
      end;
      S=1+R[m];
      V[1]=W[1]**(1/S);

      do i=2 to m;
         S=S+(1+R[m-i+1]);
         V[i]=W[i]**(1/S);
      end;

      do i=1 to m;
         U[i]=1-prod(V[m:(m-i+1)] );
         ** the U's are the required progressively type II from U(0,1);
      end;
      X_p=((1-U)##(-1/alpha) -1)/beta;
      Call sort (X_p);

      * Find the position of the larget failure < T;
      do idx=1 to m-1;
         if ((X_p[idx] < T) & (X_p[idx+1] >=T)) then
            q=idx;
      end;

      * If the mth failure is larger than T;
      If X_p[m]>T then do;
         X_1_q=J(q, 1, 0);
         X_1_q=X_p[1:q];

         /* extract those failures that are less than T i.e. all X_1,...,X_q,X_(q+1) */
         Xp_remaining=J(m-q, m, 0);
         Xp_remaining=X_p[q+1:m];
         X_qm=Xp_remaining;
         *Call Sort (X_qm);
         Rq=R[1:q];

         **************************************************;
         ** Generate data of size m-q **;
         **************************************************;
         W1=J(m-q, 1, 0);
         U1=J(m-q, 1, 0);
         V1=J(m-q, 1, 0);
         X_q_m=J(m-q, 1, 0);
         X_A=J(m, 1, 0);

         do i=1 to m-q;
            W1[i]=Uniform(seed);
         end;
         S1=1+R[m-q];
         V1[1]=W1[1]**(1/S1);

         do i=2 to m-q;
            S1=S1+(1+R[m-i+1]);
            V1[i]=W1[i]**(1/S1);
         end;

         do i=1 to m-q;
            prod1=prod(V1[(m-q):((m-q)-i+1)] );
            U1[i]=1-(prod1);
            ** the U's are the required progressively type II from U(0,1);
         end;
         X_q_m=((U1#(1+beta#X_qm)##(-alpha)/(alpha*beta) )##(-1/(alpha+1))-1)/beta;
         call sort(X_q_m);
         X_A=X_1_q // X_q_m;
         X=X_A;
      end;
      *end the list for first if statement;
      else if (X_p[m]<=T) then do;
         q=m-1;
         X=X_p;
      end;
      *end the list for the else if statement;
   End;
   print T q X_q_m X_p X_A;
   quit;

[Rick_SAS]

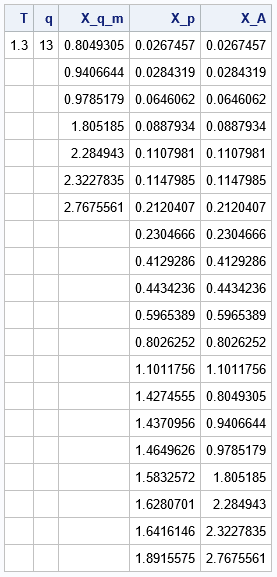

When I run your program, I get the following output.

From your description, it sounds like you want to look at X_p and decide whether

1. All values are prior to T, -OR-

2. Some values are > T. Extract those to X_q_m.

Is that right? If not, explain what values are wrong and what the correct answer should be.

[Rick_SAS]

Are you perhaps confusing X_qm and X_q_m?  By definition, all elements of X_qm are greater than T.  However, X_q_m is the expression

X_q_m=((U1#(1+beta#X_qm)##(-alpha)/(alpha*beta) )##(-1/(alpha+1))-1)/beta;

and those elements are not necessarily greater than T.

[Salah]

Hello Rick

Thank you for taking the time to look at my problem

X_qm are all greater than T and that is why I extracted them because these failures happened before time T. Instead I will be replacing them with X_qm (qm means that the size of this new data is m-q)

where q is the position where I started distracting the data.

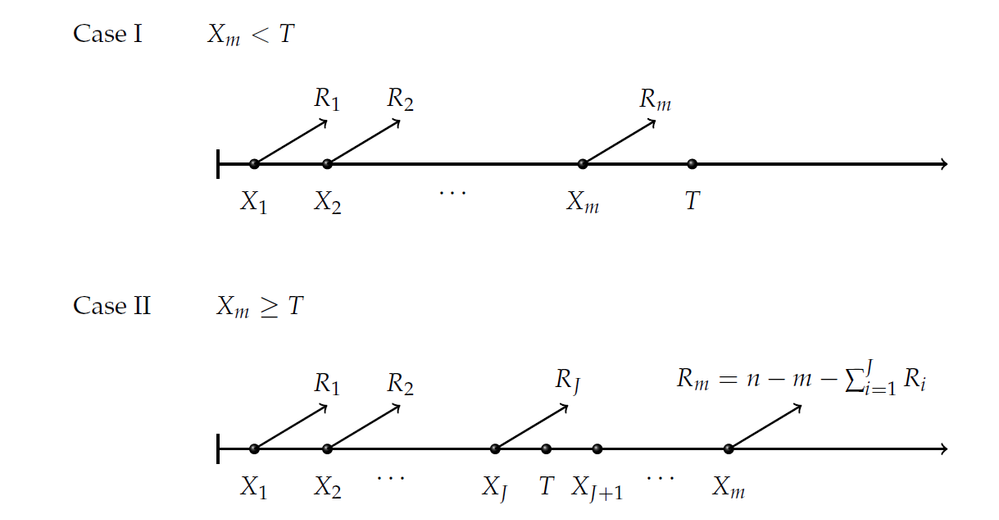

I do understand that X_qm not necessarily greater than T. But research-wise that doesn't make any sense since these failure's time should occur after T. I am attaching a diagram that may help explain what I am trying to do.

[Rick_SAS]

Two comments:

1. In your program, you have two different variables that are using a similar name. I strongly recommend that you rename X_q_m to something else (Y?) so that it is easier to distinguish from X_qm.

For example, you say

> X_qm are all greater than T

and later

> I do understand that X_qm not necessarily greater than T.

Both statements cannot be true, and I think if you rename X_q_m it will be easier to debug your program.

2. For debugging purposes, the initial vectors of times (X_p) does not need to be random. Use a simple vector like X_p = {0.2, 0.4, 0.8, 1.1, 1.2, 1.4, 1.5, 2.0} and concetrate your efforts on the second part of the program, which is where your mistake is.

[Salah]

For example, you say

> X_qm are all greater than T

and later

> I do understand that X_qm not necessarily greater than T.

Both statements cannot be true, and I think if you rename X_q_m it will be easier to debug your program.

I am sorry for the confusion what I meant to say is that since the failures supposed occurred after T, then their values must be > T. That is why I attached the diagram since it shows the two if statement that I am using in my code.

You pointed out in your previous reply that X_qm (now I call it Y) that it is not necessary > or < T. I meant to say that I agree with this notion but this doesn't work for my research.

For debugging purposes, the initial vectors of times (X_p) does not need to be random. Use a simple vector like X_p = {0.2, 0.4, 0.8, 1.1, 1.2, 1.4, 1.5, 2.0} and concetrate your efforts on the second part of the program, which is where your mistake is.

To reply to this point, if you change R[m]=10 to R[1]=10  for example then there will be no problem.

Any changes in the parameter may/may not create this problem to me.

Since I have to take different values of T, R, alpha, beta, and so on so I can't guarantee not to have this problem.

The problem is that these values create a huge bias for the MLE!!!!

Thank you

proc iml;
n=30;
m=20;
R=J(m, 1, 0);
R[m]=10;
T=1.3;
seed=2;
k=1;
alpha=1;
beta=1;

Do N1=1 to K;
** progressive censoring ***;
****************************;
W=J(m, 1, 0);
V=J(m, 1, 0);
X_p=J(m, 1, 0);
X_A=J(m, 1, 0);
U=J(m, 1, 0);
X=J(m, 1, 0);

do i=1 to m;
W[i]=Uniform(seed);
end;
S=1+R[m];
V[1]=W[1]**(1/S);

do i=2 to m;
S=S+(1+R[m-i+1]);
V[i]=W[i]**(1/S);
end;

do i=1 to m;
U[i]=1-prod(V[m:(m-i+1)] );
** the U's are the required progressively type II from U(0,1);
end;
X_p=((1-U)##(-1/alpha) -1)/beta;
Call sort (X_p);

* Find the position of the larget failure < T;
do idx=1 to m-1;
if ((X_p[idx] < T) & (X_p[idx+1] >=T)) then
q=idx;
end;

* If the mth failure is larger than T;
If X_p[m]>T then do;
X_1_q=J(q, 1, 0);
X_1_q=X_p[1:q];

/* extract those failures that are less than T i.e. all X_1,...,X_q,X_(q+1) */
Xp_remaining=J(m-q, m, 0);
Xp_remaining=X_p[q+1:m];
X_qm=Xp_remaining;
*Call Sort (X_qm);
Rq=R[1:q];

**************************************************;
** Generate data of size m-q **;
**************************************************;
W1=J(m-q, 1, 0);
U1=J(m-q, 1, 0);
V1=J(m-q, 1, 0);
Y=J(m-q, 1, 0);
X_A=J(m, 1, 0);

do i=1 to m-q;
W1[i]=Uniform(seed);
end;
S1=1+R[m-q];
V1[1]=W1[1]**(1/S1);

do i=2 to m-q;
S1=S1+(1+R[m-i+1]);
V1[i]=W1[i]**(1/S1);
end;

do i=1 to m-q;
prod1=prod(V1[(m-q):((m-q)-i+1)] );
U1[i]=1-(prod1);
** the U's are the required progressively type II from U(0,1);
end;
Y=((U1#(1+beta#X_qm)##(-alpha)/(alpha*beta) )##(-1/(alpha+1))-1)/beta;
call sort(Y);
X_A=X_1_q // Y;
X=X_A;
end;
*end the list for first if statement;
else if (X_p[m]<=T) then do;
q=m-1;
X=X_p;
end;
*end the list for the else if statement;
End;
print T q Y X_p X_A;
quit;

[Rick_SAS]

It is not clear whether you are asking a research question or a SAS/IML programming question. If it is a research question, perhaps you can discuss it with your advisor or a colleague.  If it is a programming problem, then please tell us what is wrong with the computation and what the correct answer should be.
