Using SAS DI Studio, how do I connect a Loop transformation input port to a SAS job?

[guest1994]

Hi,

Using SAS DI Studio, how do I connect a Loop transformation input port to a SAS job?
The SAS job I’m trying to connect doesn’t display as an output available.
Also when I drag the pen sign to connect the loop to the SAS job it says: ‘No data port available’

How do I connect this, how do I get the arrow with the dash lines?

Thanks

[guest1994]

Hi,

Using SAS DI Studio, how do I connect a Loop transformation input port to a SAS job?
The SAS job I’m trying to connect doesn’t display as an output available.
Also when I drag the pen sign to connect the loop to the SAS job it says: ‘No data port available’

How do I connect this, how do I get the arrow with the dash lines?

Thanks

[RLigtenberg]

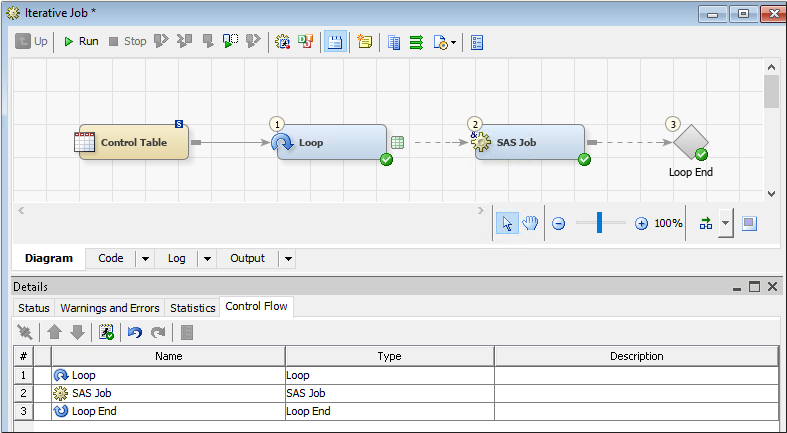

Connect the Control table to the Loop transformation input port. Place the SAS job after the Loop transformation in the Control Flow tab (in the Details pane). Add a Loop End transformation after the SAS job. Dash lines represent control flow, they are added by setting the control flow. Solid lines represent data flow, they are added by connecting nodes with the pen sign.

Creating an Iterative Job
