SGPLOT Refline have placed incorrecctly

[raja777pharma]

Hello,

I have defeind the refline for specific date but it was coming before the date rather than specified.

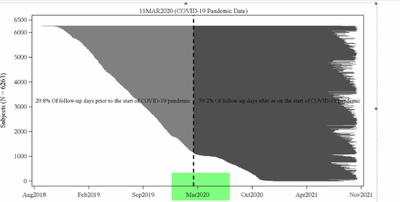

Below is my output, the refline date is 11MAR2020 , but it was displaye before Mar2020.

Below  is my code.

data prefinal;
  set indata;
   if fasfl='Y';
   cutoff=cov19pdt;
   adt = FUPEDT;

   if randdt > cutoff then do;
     adt2=adt;
     randdt2=randdt;
     before='Y';
   end;
   else if adt < cutoff then do;
     adt1=adt;
     randdt1=randdt;
     after='Y';
   end;
   else do;
     randdt1=randdt;
     adt1=cutoff;
     randdt2=cutoff;
     adt2=adt;
     both='Y';
   end;
   format  randdt randdt1 adt randdt2 adt2 cutoff date9. ;
   keep usubjid randdt1 adt1 randdt2 adt2 cutoff randdt adt fupedt;
run;

proc sql noprint ;
  create table xaxisdt as
  select min(randdt) as xstdt format date9.
        ,max(adt) as xendt format date9.
        ,max(cutoff) as cutoffdt format date9.
  from prefinal;
quit;

data xaxisdt;
  set xaxisdt;
  stdtn=intnx('month',xstdt,-1,'s');
  stdtc=put(stdtn,date9.);
  endtn=intnx('month',xendt,1,'s');
  endtc=put(endtn,date9.);

  keep stdtc endtc cutoffdt;
run;

proc sql noprint;
  select stdtc,endtc ,cutoffdt into: xstdt, :xendt, :cutoffdt
  from xaxisdt;
quit;

proc sgplot data=final;
       highlow Y=N low=RANDDT1 high=ADT1/lineattrs=(thickness=1.5 pattern=solid color=grey) name='C' legendlabel='Follow-up Days';
       highlow Y=N low=RANDDT2 high=ADT2/lineattrs=(thickness=1.5 pattern=solid color=charcoal) name='C' legendlabel='Follow-up Days';
       yaxis label="Subjects (N = %trim(&n99))"  values=(0 1000 2000 3000 4000 5000 6000 6500);
       xaxis label="Study Calendar" interval=quarter VALUESFORMAT=MONYY7.;
       refline "&cutoffdt."d/ axis=x  lineattrs=(thickness=3 pattern=dash color=black) label="&cutoffdt. (COVID-19 Pandemic Date)";

        inset "%trim(&nbe)% Of follow-up days prior to the start of COVID-19 pandemic" / position=left textattrs=(color=black  size=9);
        inset "%trim(&ndu)% Of follow-up days after or on the start of COVID-19 pandemic" / position=right textattrs=(color=black  size=9);
run;

Also please let me know how we can wrap inset text.

Thank you,

Rajasekahar B

[Reeza]

Show the value of the cutoff date macro variable.

[raja777pharma]

cutoff maccro variable resolve to 11Mar2020 and date formate in data set is date9.

Thank you,
Rajasekhar Reddy.

[LalitPatel]

Mar2020 tick-mark on X axis corresponds to 31Mar2020.

[raja777pharma]

How we can create tick values for starting of the month, i,e 01Mar2020

[Ksharp]

If you want "wrap inset text." ,try multiple quote for INSET.

proc sgplot data=sashelp.class;
scatter x=weight y=height/datalabel=name group=sex;
inset "%trim(&nbe)% Of follow-up days" "prior to the start of COVID-19 pandemic" / position=left textattrs=(color=black size=9);
inset "%trim(&ndu)% Of follow-up days" "after or on the start of COVID-19 pandemic" / position=right textattrs=(color=black size=9);
run;

[Quentin · Accepted solution]

Hi,

I think the problem is that your plot has a linear axis rather than a time axis.  To fix it, make sure randdt1 randdt2 addt1 addt2 all have date formats attached to them in work.final (you could add a format statement inside the SGPLOT).  This should trigger SGPLOT to use a time axis.

One warning sign in your picture is that the month names are not the start of a quarter (they should be Jan, Apr, Jul, Oct).  The easiest way to confirm this problem is to change the xaxis to valuesformat=date9.  It should show you that the day values for each month are not the first or the last of the month, because it's a linear axis I think the start point is driven by the data.  I'm surprised that SGPLOT doesn't throw at least a NOTE to say that you are using a time interval for a linear axis.  I thought you could fix this by adding type=time to the axis statement, but SAS then throws a note that although you have requested a time axis, the axis will be changed to linear because the values being plotted are not time values.

So in order to get a proper time axis, it looks like the values need to be formatted as dates (or date-times or times) so SGPLOT knows it is plotting time values.  Then SGPLOT will give you a time axis rather than a linear axis.

Sample code below.  It's always helpful to make a tiny test case when exploring SAS questions, so that you can narrow down the problem.

data have ;
  do randdt1="01Jan2020"d to "01Jan2021"d by 10 ;
    randdt2=randdt1+100 ;
    N++1 ;
    output ;
  end ;
run ;


title1 "This plot has a linear axis rather than a time axis because the variables are not formatted as dates" ;
proc sgplot data=have ;
  highlow y=N low=randdt1 high=randdt2;
  refline "11Mar2020"d /axis=x ;
  xaxis interval=quarter  valuesformat=mmddyy10. ;
run ;
title1 ;

title1 "This plot has a time axis because randdt1 and randdt2 have a date format attached" ;
proc sgplot data=have ;
  highlow y=N low=randdt1 high=randdt2;
  refline "11Mar2020"d /axis=x ;
  xaxis interval=quarter  valuesformat=mmddyy10. ;
  format randdt1 randdt2 date9. ;
run ;
title1 ;

title1 "This plot has a time axis because randdt1 and randdt2 have a date format attached" ;
proc sgplot data=have ;
  highlow y=N low=randdt1 high=randdt2;
  refline "11Mar2020"d /axis=x ;
  xaxis interval=quarter  valuesformat=monyy7. ;
  format randdt1 randdt2 date9. ;
run ;
title1 ;
