sgplot stack bar by descending order while keeping group order inside each bar

[garfieldyue]

Hi,

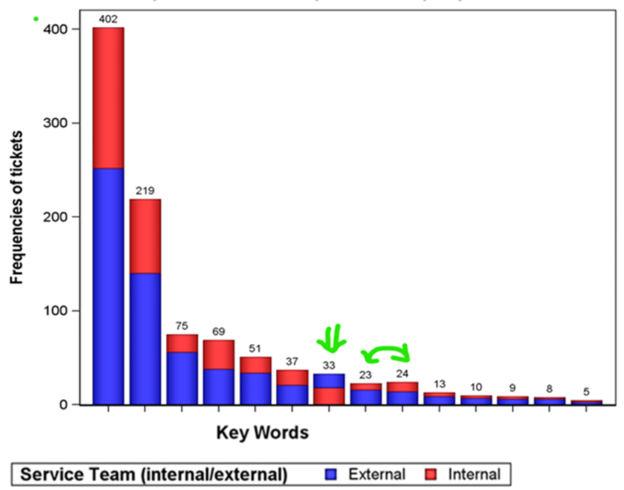

I’m having trouble in the following bar plot.

My goals are:
- Descending order by the total count of each key word
- The same order of two teams inside each bar

The code I’m using now is as below:

proc sort data=rct;
  by descending totalct team;
run;

proc sgplot data = rct;

  VBAR keyword /RESPONSE = count  /*y-axis: count per keyword per team*/
                  group = team    /*stack each bar with two teams*/
                  categoryorder = respdesc; /*order by count of each team per keyword, not the total count of each keyword*/

run;

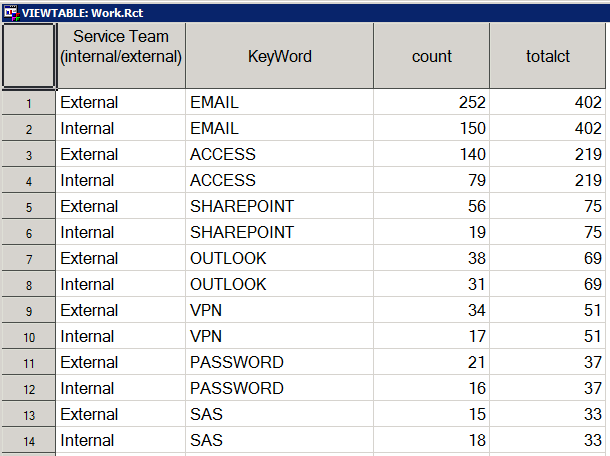

Part of the data is like below:

I know the above code is not 100% correct in terms of achieving my goals, but I don’t know what code (proc or options) to use in this case.

Please advise.

Thanks!

Alicia

[djrisks]

Hi Alicia,

Your code looks correct. Have you tried to sort your data by descending count totalct team?

Many thanks,

Kriss

[garfieldyue]

Hi Kriss,

Thanks for your advice. I tried your sorting but unfortunately the issues are still there (the output stays the same).

Thanks!

Alicia

[djrisks · Accepted solution]

Hi Alicia,

Okay, I see. Try this code:

data rct2;
  set rct;
  totalct_y = totalct + 10;
run;

proc sgplot data = rct2;
  vbarparm category=keyword response = count / group = team grouporder = data;
  scatter x = keyword y = totalct_y / markerchar= totalct;
run;

[garfieldyue]

This works, Kriss. Wonderful!

I don't quite understand why using "totalct_y = totalct + 10" in your data step. Could you explain a bit?

Thanks so much!

[PhilC]

read this article.

Solved: sgplot hbar - Is it possible to sort categories by... - SAS Support Communities

I see that there's an example of a stacked bar plot there that has blue and red in the correct order.  Good luck.

[garfieldyue]

Hi PhilC,

Thanks for pulling up the previous case - it was exactly what I wanted to do. The only thing is when I was trying to do the complicated sql step (I'm entry level), SAS kept giving errors although I replaced my variables accordingly. I saved the solution for future use. It was absolutely helpful!

Regards,

Alicia
