dropline up to the axis?

[xxformat_com]

Hi,

is there an option to stop the dropline at the axis?

I found alternative solution using drawline but i wouldnice to have directly the option in dropline or so.

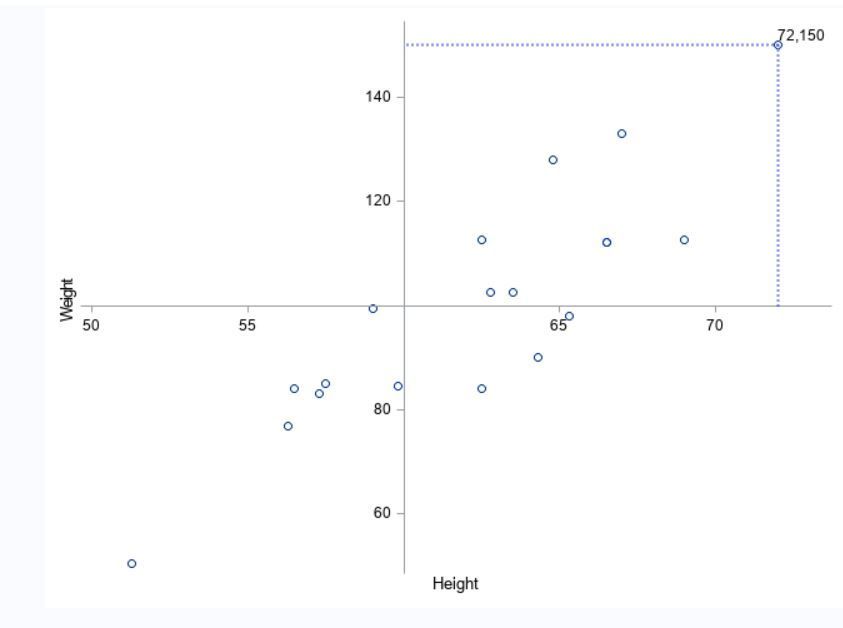

1. With dropline (missing the option)

proc template;
    define statgraph class;
        begingraph;
	        layout overlay
	            / xaxisopts=(linearopts=(origin=60))
	              yaxisopts=(linearopts=(origin=100))
	              walldisplay=none;

	        scatterplot x=height y=weight;

            dropline x=72 y=150
                  / dropto=both
                    lineattrs=(color=blue pattern=dot)
                    label='72,150';

            endlayout;
        endgraph;
    end;
run;

proc sgrender data=sashelp.class template=class ;
run;

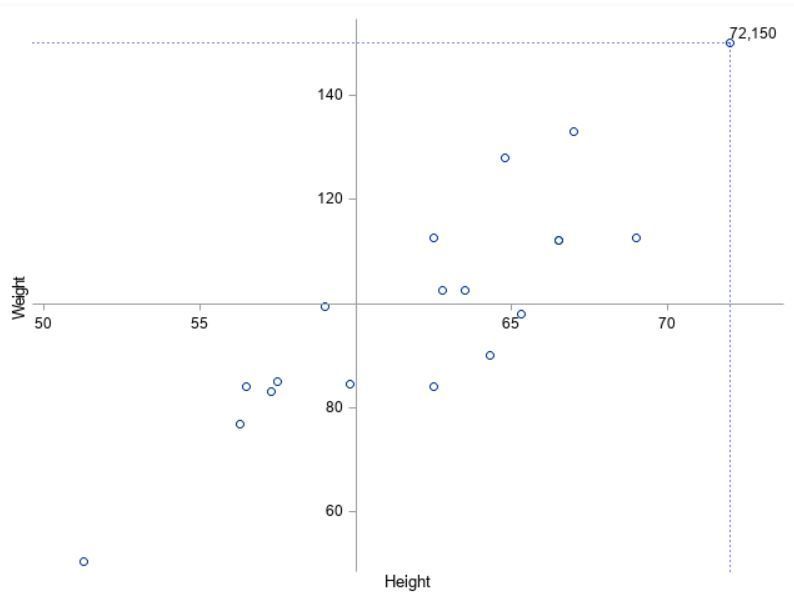

2. With drawline (expected result)

Regards

[Jay54 · Accepted solution]

Yes, you have found a shortcoming in the axis origin feature that has not been reported so far.  I suspect the combination of axis origin with drop line has not been used often.  DrawLine would work where you provide the start and end coordinates.  Alternate plot statement would be a VECTORPLOT, where again you provide the coordinates, but at least the data is in the same data set for consistency.
