Posted 11-03-2020 01:53 PM
(1514 views)

Hi ,

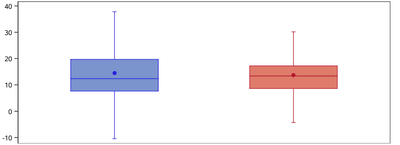

I have created the following plot.

the code I have used is below:

proc sgplot data=&G_DDDATASETNAME noautolegend;

vbox meandos / group=cnsr groupdisplay=cluster

lineattrs=(pattern=1) whiskerattrs=(pattern=solid) meanattrs=(symbol=circlefilled) nooutliers medianattrs=(pattern=2) extreme ;

xaxis ;

yaxis values=(0 to 50 by 1) label ="label for Y axis";

format cnsr mace.;

keylegend / location=outside position=bottom across=1 title="";

run;

Now the issue im facing is to draw the whiskers to 1.5IQR. How do I achieve it?

Thanks

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

23 REPLIES 23

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Data might be nice.

Do you mean that you need a "whisker" that goes to 1.5 * IQR when there is actually not data in your data set that far out? By default the whiskers will go to 1.5 times the IQR (plus/minus) but caps at the extreme value encountered if there aren't outliers.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

I have calculated the 1.5*IQR which doesnt match with this Whiskers.

I see the in the below link that "The whiskers are drawn from the box to the most extreme point that is less than or equal to 1.5 times the IQR". So the Whisker length is not always uto 1.5 IQR is what I understand.

https://documentation.sas.com/?cdcId=pgmsascdc&cdcVersion=9.4_3.5&docsetId=grstatproc&docsetTarget=n...

I see the in the below link that "The whiskers are drawn from the box to the most extreme point that is less than or equal to 1.5 times the IQR". So the Whisker length is not always uto 1.5 IQR is what I understand.

https://documentation.sas.com/?cdcId=pgmsascdc&cdcVersion=9.4_3.5&docsetId=grstatproc&docsetTarget=n...

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

If you have computed the 1.5IQR, you can use that information to set an appropriate whisker value using the WHISKERPCT option.

Hope this helps!

Dan

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Hello DanH_sas

May I know how? I see we can give the whiskerpct as 0,10,25 only .

May I know how? I see we can give the whiskerpct as 0,10,25 only .

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

You can specify any value between 0 to 25. Here is the doc for the option:

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Hi,

I see the doc sates whiskerpct . So if I calculate 1.5*IQR(say it is whis_iqr) , then can I give as whsketpct=whis_iqr ?

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Okay, that's interesting. So are the Whiskers that are produced my SAS smaller than yours? Perhaps, you could look into the WHISKERPCT option.

A definite solution, is that because you have already calculated the necessary statistics, you could look into using GTL and BOXPLOTPARM statement.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

@Manj wrote:

I have calculated the 1.5*IQR which doesnt match with this Whiskers.

I see the in the below link that "The whiskers are drawn from the box to the most extreme point that is less than or equal to 1.5 times the IQR". So the Whisker length is not always uto 1.5 IQR is what I understand.

https://documentation.sas.com/?cdcId=pgmsascdc&cdcVersion=9.4_3.5&docsetId=grstatproc&docsetTarget=n...

So the answer to my question is: Yes, I want to draw line further out than the data actually exists within the 1.5 IQR.

The first time I was introduced to Box-and-whisker plots the rule was the whiskers indicate the data, not the calculation. The purpose of a box-and-whisker is to show distribution of data in a concise form. If you draw a whisker further then you are implying that there is data there. Hence, fabricating data.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Hi @Manj ,

I believe if you remove the **extreme** and **nooutlier **options from your your VBOX plot statement, then you will get the boxplot that you want.

Thanks,

Kriss

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

This isnt helping.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

As @ballardw mentioned, the Whiskers will go to 1.5 * the IQR range by default. I'm not sure why this isn't working, and it's difficult to diagnose without the data and/or plot/

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

@Manj wrote:

This isnt helping.

What "isn't helping"?

Data.

Data is good.

If you don't want to provide any then use an existing SAS supplied data set. Such as

proc sgplot data=sashelp.class noautolegend; vbox height / group=sex groupdisplay=cluster; run;

So, show us using the SASHELP.CLASS data, 1) how you calculated the 1.5 IQR and 2) what value(s) you want displayed on the graph for as generated above.

I will say if I am shown a graph with a whisker that does not have corresponding data in the source that I would be very upset when I found out.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Hi ,

I have calculated the IQR as p75-p25

so the whisker ends will be p75+1.5 IQR and p25-1.5 IQR. But it doesnt seems to match with plots whisker ends.

I tried with the following code:

proc sgplot data=sashelp.class noautolegend; vbox height / group=sex groupdisplay=cluster; run;

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Hello ,

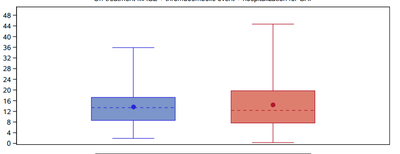

I have re-written my code as below to generate the boxplot. The problem i face now is (1) how to make the horizontal line within the box to dotted line? (2) how to increase the length of the 'caps' for the lines?

proc sgplot data=dddata.aaa nocycleattrs;

highlow x=cnsr high=iqr_plus low=p75 / group=cnsrtxt groupdisplay=cluster

clusterwidth=0.7 highcap=serif lineattrs=(pattern=1);

highlow x=cnsr high=p75 low=median / group=cnsrtxt type=bar

groupdisplay=cluster grouporder=ascending clusterwidth=0.7

barwidth=0.7 name='a';

highlow x=cnsr high=median low=p25 / group=cnsrtxt type=bar

groupdisplay=cluster grouporder=ascending clusterwidth=0.7

barwidth=0.7 ;

highlow x=cnsr high=p25 low=iqr_neg / group=cnsrtxt groupdisplay=cluster

clusterwidth=0.7 lowcap=serif lineattrs=(pattern=1);

scatter x=cnsr y=mean / group=cnsrtxt groupdisplay=cluster

grouporder=ascending clusterwidth=0.7 markerattrs=(size=9 symbol=circlefilled );

keylegend 'a' / location=outside position=bottom across=1 title="";

xaxis display=none;

run;
