🔒 This topic is **solved** and **locked**.
Need further help from the community? Please
sign in and ask a **new** question.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Posted 12-13-2019 12:48 PM
(2127 views)

The following scatter plot divides the observations into 10 groups using y-axis first and then 10 subgroups for each using x-axis second.

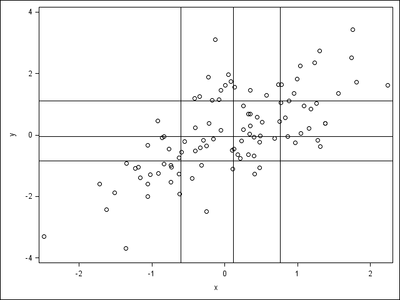

Can I do this dependent grouping in SAS? This is my simple trial of independent grouping in SAS, but I cannot limit the length of each LINEPARM in SGPLOT, so wonder whether dependent grouping is available.

Here is the code.

```
data _01;
do i=1 to 100;
x=rannor(1);
y=x+rannor(1);
output;
end;
run;
proc iml;
use _01;
read all var{x y};
call qntl(xq,x);
call qntl(yq,y);
call symputx("xq",rowcat(char(xq)`+" "));
call symputx("yq",rowcat(char(yq)`+" "));
quit;
proc sgplot noautolegend;
scatter x=x y=y;
lineparm x=%scan(&xq.,1," ") y=0 slope=.;
lineparm x=%scan(&xq.,2," ") y=0 slope=.;
lineparm x=%scan(&xq.,3," ") y=0 slope=.;
lineparm x=0 y=%scan(&yq.,1," ") slope=0;
lineparm x=0 y=%scan(&yq.,2," ") slope=0;
lineparm x=0 y=%scan(&yq.,3," ") slope=0;
run;
```

Thanks.

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

OK . How about this one.

```
data heart;
set sashelp.heart(obs=2000 keep=height weight
where=(height is not missing and weight is not missing)) ;
run;
proc rank data=heart out=have groups=10 ties=high;
var height;
ranks r_height;
run;
proc sort data=have;by r_height;run;
proc rank data=have out=have1 groups=10 ties=high;
by r_height;
var weight;
ranks r_weight;
run;
proc sql;
create table have2 as
select a.*,r_weight,min_w,max_w from (
select r_height,min(height) as min_h,max(height) as max_h,
min(weight) as min_w2,max(weight) as max_w2
from have1
group by r_height) as a
left join (
select r_height,r_weight,min(weight) as min_w,max(weight) as max_w
from have1
group by r_height,r_weight) as b
on a.r_height=b.r_height;
quit;
data have3;
set have2;
by r_height;
if first.r_height then do;
o_y=max_h;o_x=min_w;
y=min_h;x=min_w;
o_y2=max_h;o_x2=min_w2;
y2=max_h;x2=max_w2;
output;
end;
o_y=max_h;o_x=max_w;
y=min_h;x=max_w;
o_y2=min_h;o_x2=min_w2;
y2=min_h;x2=max_w2;
output;
run;
data want;
set heart have3;
run;
proc sgplot data=want noautolegend;
scatter x=weight y=height/ transparency=0.5;
vector x=x y=y / xorigin=o_x yorigin=o_y noarrowheads lineattrs=(color=green);
vector x=x2 y=y2 / xorigin=o_x2 yorigin=o_y2 noarrowheads lineattrs=(color=red);
run;
```

8 REPLIES 8

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

What version of SAS are you using?

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

It is SAS 9.4 TS1M5.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

**DRAWING** of it is definitely possible, using things such as annotation, VECTOR plot, of possibly POLYGON plot. The tricky part to making it look like the original figure is to figure out the min/max points within each bin. @Rick_SAS , any way to get this information from PROC IML?

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Sure. use the QNTL function unconditionally for the Y axis (horizontal bins), then subset (use LOC function) and use the QNTL function again on each strip to subdivide in the direction of the X axis. I performed similar computations in my article about the 2-D bin plot, but I was interested in using evenly spaced cutpoints in each direction (thus a regular grid) whereas the OP is interested in quantile-based cutpoints. I suggest using rectangles and the polygon plot for overlaying the grid.

It's a great question! I'd write the program but I'm trying to finish a task. I'll look at it later unless someone else programs it first.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

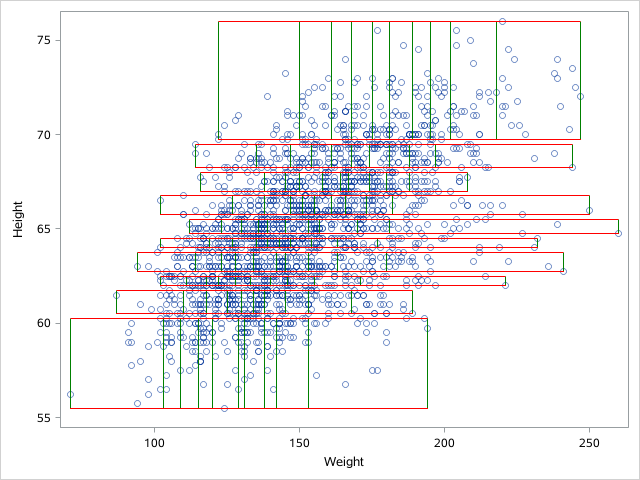

OK . How about this one.

```
data heart;
set sashelp.heart(obs=2000 keep=height weight
where=(height is not missing and weight is not missing)) ;
run;
proc rank data=heart out=have groups=10 ties=high;
var height;
ranks r_height;
run;
proc sort data=have;by r_height;run;
proc rank data=have out=have1 groups=10 ties=high;
by r_height;
var weight;
ranks r_weight;
run;
proc sql;
create table have2 as
select a.*,r_weight,min_w,max_w from (
select r_height,min(height) as min_h,max(height) as max_h,
min(weight) as min_w2,max(weight) as max_w2
from have1
group by r_height) as a
left join (
select r_height,r_weight,min(weight) as min_w,max(weight) as max_w
from have1
group by r_height,r_weight) as b
on a.r_height=b.r_height;
quit;
data have3;
set have2;
by r_height;
if first.r_height then do;
o_y=max_h;o_x=min_w;
y=min_h;x=min_w;
o_y2=max_h;o_x2=min_w2;
y2=max_h;x2=max_w2;
output;
end;
o_y=max_h;o_x=max_w;
y=min_h;x=max_w;
o_y2=min_h;o_x2=min_w2;
y2=min_h;x2=max_w2;
output;
run;
data want;
set heart have3;
run;
proc sgplot data=want noautolegend;
scatter x=weight y=height/ transparency=0.5;
vector x=x y=y / xorigin=o_x yorigin=o_y noarrowheads lineattrs=(color=green);
vector x=x2 y=y2 / xorigin=o_x2 yorigin=o_y2 noarrowheads lineattrs=(color=red);
run;
```

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

Here I also attach my version.

```
data a;
do i=1 to 100;
x=rannor(1);
y=x+rannor(1);
output;
end;
run;
proc iml;
use a;
read all var{x y};
call qntl(qx,x,do(0,1,1/3));
call qntl(q1,y[loc(x<=qx[2])],do(0,1,1/3));
call qntl(q2,y[loc(x>qx[2] & x<=qx[3])],do(0,1,1/3));
call qntl(q3,y[loc(x>qx[3])],do(0,1,1/3));
qy=q1||q2||q3;
b=j(45,2);
do i=1 to 3;
do j=1 to 3;
do k=1 to 5;
if k=1 then b[15*i+5*j+k-20,]=qx[i]||qy[j,i];
else if k=2 then b[15*i+5*j+k-20,]=qx[i]||qy[j+1,i];
else if k=3 then b[15*i+5*j+k-20,]=qx[i+1]||qy[j+1,i];
else if k=4 then b[15*i+5*j+k-20,]=qx[i+1]||qy[j,i];
else b[15*i+5*j+k-20,]=qx[i]||qy[j,i];
end;
end;
end;
create b(rename=(col1=x1 col2=y1)) from b;
append from b;
quit;
data b;
set b;
if mod(_n_,5)=1 then function="polyline";
else function="polycont";
drawspace="datavalue";
linethickness=1;
run;
proc sgplot data=a sganno=b;
scatter x=x y=y;
run;
quit;
```

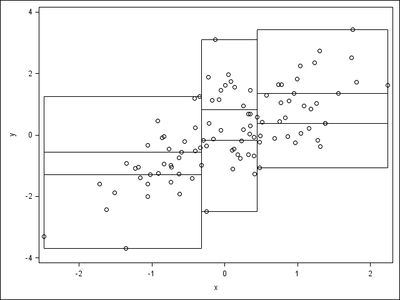

And the output here.

Thanks.

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

The Y and then X example.

```
data a;
do i=1 to 100;
x=rannor(1);
y=x+rannor(1);
output;
end;
run;
proc iml;
use a;
read all var{x y};
call qntl(qy,y,do(0,1,1/3));
call qntl(q1,x[loc(y<=qy[2])],do(0,1,1/3));
call qntl(q2,x[loc(y>qy[2] & y<=qy[3])],do(0,1,1/3));
call qntl(q3,x[loc(y>qy[3])],do(0,1,1/3));
qx=q1||q2||q3;
b=j(45,2);
do i=1 to 3;
do j=1 to 3;
do k=1 to 5;
if k=1 then b[15*i+5*j+k-20,]=qx[j,i]||qy[i];
if k=2 then b[15*i+5*j+k-20,]=qx[j+1,i]||qy[i];
if k=3 then b[15*i+5*j+k-20,]=qx[j+1,i]||qy[i+1];
if k=4 then b[15*i+5*j+k-20,]=qx[j,i]||qy[i+1];
if k=5 then b[15*i+5*j+k-20,]=qx[j,i]||qy[i];
end;
end;
end;
create b(rename=(col1=x1 col2=y1)) from b;
append from b;
quit;
data b;
set b;
if mod(_n_,5)=1 then function="polyline";
else function="polycont";
drawspace="datavalue";
linethickness=1;
run;
ods listing gpath="!userprofile\desktop\";
ods graphics/reset;
ods results=off;
proc sgplot data=a sganno=b;
scatter x=x y=y;
run;
ods results=on;
quit;
```

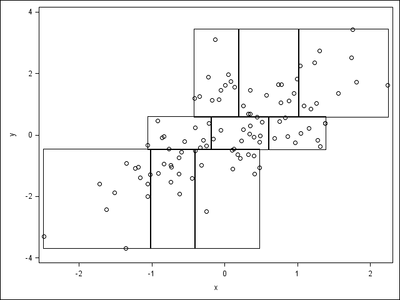

And the results.

Actually, in SGANNO, I tried RECTANGLE first as POLYLINE requires 5 observations for each bin while RECTANGLE requires only 1, but I realized that the RECTANGLE output is slightly ugly as follows.

```
data a;
do i=1 to 100;
x=rannor(1);
y=x+rannor(1);
output;
end;
run;
proc iml;
use a;
read all var{x y};
call qntl(qy,y,do(0,1,1/3));
call qntl(q1,x[loc(y<=qy[2])],do(0,1,1/3));
call qntl(q2,x[loc(y>qy[2] & y<=qy[3])],do(0,1,1/3));
call qntl(q3,x[loc(y>qy[3])],do(0,1,1/3));
qx=q1||q2||q3;
b=j(9,4);
do i=1 to 3;
do j=1 to 3;
b[3*i+j-3,]=qx[j,i]||qy[i]||qx[j+1,i]-qx[j,i]||qy[i+1]-qy[i];
end;
end;
create b(rename=(col1=x1 col2=y1 col3=width col4=height)) from b;
append from b;
quit;
data b;
set b;
function="rectangle";
drawspace="datavalue";
anchor="bottomleft";
linethickness=1;
widthunit="data";
heightunit="data";
run;
ods listing gpath="!userprofile\desktop\";
ods graphics/reset;
ods results=off;
proc sgplot data=a sganno=b;
scatter x=x y=y;
run;
ods results=on;
quit;
```

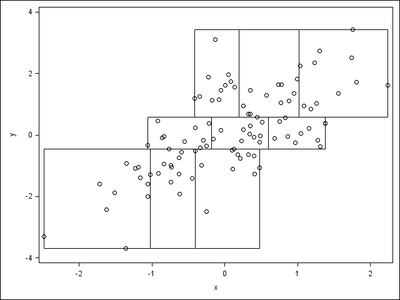

It seems RECTANGLE draws the lines one pixel outside the region, while POLYLINE draw the exact lines.

POLYLINE seems to be better than RECTANGLE.
