Dear community,

I have a data set partially like below

pid

visit

test_a

test_b

Patient_1

24hr

5

20

Patient_1

Day5

4

68

Patient_1

day30

0

46

Patient_1

day90

3

24

Patient_2

24hr

4

5

Patient_2

Day5

1

65

Patient_2

day30

2

72

Patient_2

day90

0

26



Which has well over a few hundreds of patients’ test_a and test_b results (if it is possible, I also want to plot test_c on the graph as well). I can only plot test _a with the following code and I don’t know if it is possible to add test_b line on the same plot using the secondary axis, any help would be greatly appreciatd.

/*

data want; set test_data;

      if _name_ = '24hr' then day = 1;

      else if  _name_ = 'Day5' then day = 2;

      else if  _name_ = 'Day30' then day = 3;

      else if  _name_ = 'Day90' then day = 4;

run;

proc format;

      value dayfor

      1 = '24hr'

      2 = 'Day5'

      3 = 'Day30'

      4 = 'Day90';

run;

data want; set want;

      format day dayfor.;

run;



proc sort data = want;

by pid day; run;



axis2 order = (0 to 7);



symbol1 interpol=join width=2 color=vligb  value=dot height=6;

symbol2 interpol=join width=2 color=salmon value=dot height=6;



proc gplot data=want;

plot test_a * day;

run;

*/



Thanks

zimcom

1 ACCEPTED SOLUTION

Accepted Solutions
GraphGuy
Meteorite | Level 14

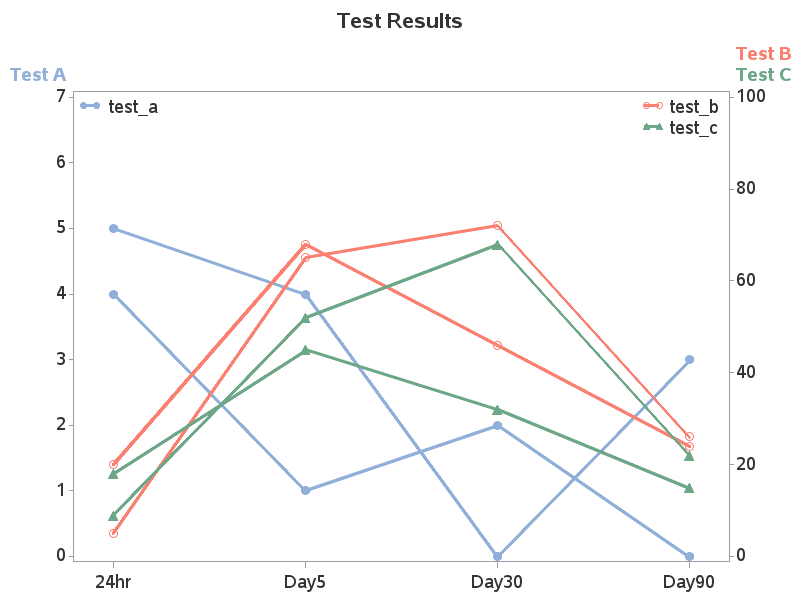

Here's some Proc Gplot code, which I believe covers all the things you mentioned, as well as some other things you might want to add:



data test_data;
length pid $20 visit $10;
input pid visit test_a test_b test_c;
datalines;
Patient_1 24hr 5 20 18
Patient_1 Day5 4 68 45
Patient_1 Day30 0 46 32
Patient_1 Day90 3 24 15
Patient_2 24hr 4 5 9
Patient_2 Day5 1 65 52
Patient_2 Day30 2 72 68
Patient_2 Day90 0 26 22
;
run;



proc format;
value dayfor
1 = '24hr'
2 = 'Day5'
3 = 'Day30'
4 = 'Day90';
run;



data want; set test_data;
format day dayfor.;
if visit = '24hr' then day = 1;
else if visit = 'Day5' then day = 2;
else if visit = 'Day30' then day = 3;
else if visit = 'Day90' then day = 4;
run;



proc sort data=want out=want;
by pid day;
run;



/* insert a missing value between each patient for the 'skipmiss' */
data want; set want;
by pid;
output;
if last.pid then do;
 day=.;
 output;
end;
run;



goptions gunit=pct ftitle='albany amt/bold' ftext='albany amt' htitle=3.5 htext=3.0;
goptions ctext=gray33;



symbol1 interpol=join width=2 color=vligb value=dot height=3;
symbol2 interpol=join width=2 color=salmon value=circle height=3;
symbol3 interpol=join width=2 color=lig value=trianglefilled height=3;



legend1 position=(top left inside) mode=share across=1 label=none repeat=2;
legend2 position=(top right inside) mode=share across=1 label=none repeat=2;



axis1 label=none minor=none offset=(5,5);
axis2 label=(f='albany amt/bold' c=vligb 'Test A') order=(0 to 7 by 1) minor=none;
axis3 label=(f='albany amt/bold' j=l c=salmon 'Test B' j=l c=lig 'Test C')
order=(0 to 100 by 20) minor=none;



title1 ls=1.5 "Test Results";
proc gplot data=want;
plot test_a*day=1 / haxis=axis1 vaxis=axis2 skipmiss legend=legend1;
plot2 test_b*day=2 test_c*day=3 / haxis=axis1 vaxis=axis3 overlay skipmiss legend=legend2;
run;






View solution in original post

9 REPLIES 9
Reeza
Super User
Switch to SGPLOT.

proc sgplot data=want;
series x=day y=test_a;
series x=day y=test_b;
run;
DanH_sas
SAS Super FREQ

You have two options:



1) Use the PLOT2 statement in GPLOT:



proc gplot data=want;

plot test_a * day;

plot2 test_b * day

run;



2) Use SGPLOT (as @Reeza said)



proc sgplot data=want;
series x=day y=test_a;
series x=day y=test_b / y2axis;
run;



Option #2 will require you to incorporate your AXIS and SYMBOL statement options into SGPLOT syntax, as these global statements are not used by that procedure.

zimcom
Pyrite | Level 9

Thank you both, the codes works.



How can I define the line label, markers size and color and line color and style etc.?





DanH_sas
SAS Super FREQ

Based on the SYMBOL options from your previous program, you should try something like this:



proc sgplot data=want;
series x=day y=test_a / markerattrs=(color=vligb symbol=circlefilled size=9)
          lineattrs=(color=vligb thickness=2);
series x=day y=test_b / y2axis markerattrs=(color=salmon symbol=circlefilled size=9)
          lineattrs=(color=salmon thickness=2);
run;
zimcom
Pyrite | Level 9
where I can see all the other options?
zimcom
Pyrite | Level 9

also it would be more consistent to fix the scale of both axises, like set up the maximum of 7 for the primary axis with major tick as of 1 and the maximum of 100 for the secondary axis and major tick being 10.



THNAK YOU!!

DanH_sas
SAS Super FREQ

For your scaling, you'll probably want to use the VALUES option on the YAXIS and Y2AXIS statements. As for all of the other options, there are a lot of them :-). Here is the link to the online doc: http://support.sas.com/documentation/cdl//en/grstatproc/69716/HTML/default/viewer.htm#n0yjdd910dh59z...



GraphGuy
Meteorite | Level 14

Here's some Proc Gplot code, which I believe covers all the things you mentioned, as well as some other things you might want to add:



data test_data;
length pid $20 visit $10;
input pid visit test_a test_b test_c;
datalines;
Patient_1 24hr 5 20 18
Patient_1 Day5 4 68 45
Patient_1 Day30 0 46 32
Patient_1 Day90 3 24 15
Patient_2 24hr 4 5 9
Patient_2 Day5 1 65 52
Patient_2 Day30 2 72 68
Patient_2 Day90 0 26 22
;
run;



proc format;
value dayfor
1 = '24hr'
2 = 'Day5'
3 = 'Day30'
4 = 'Day90';
run;



data want; set test_data;
format day dayfor.;
if visit = '24hr' then day = 1;
else if visit = 'Day5' then day = 2;
else if visit = 'Day30' then day = 3;
else if visit = 'Day90' then day = 4;
run;



proc sort data=want out=want;
by pid day;
run;



/* insert a missing value between each patient for the 'skipmiss' */
data want; set want;
by pid;
output;
if last.pid then do;
 day=.;
 output;
end;
run;



goptions gunit=pct ftitle='albany amt/bold' ftext='albany amt' htitle=3.5 htext=3.0;
goptions ctext=gray33;



symbol1 interpol=join width=2 color=vligb value=dot height=3;
symbol2 interpol=join width=2 color=salmon value=circle height=3;
symbol3 interpol=join width=2 color=lig value=trianglefilled height=3;



legend1 position=(top left inside) mode=share across=1 label=none repeat=2;
legend2 position=(top right inside) mode=share across=1 label=none repeat=2;



axis1 label=none minor=none offset=(5,5);
axis2 label=(f='albany amt/bold' c=vligb 'Test A') order=(0 to 7 by 1) minor=none;
axis3 label=(f='albany amt/bold' j=l c=salmon 'Test B' j=l c=lig 'Test C')
order=(0 to 100 by 20) minor=none;



title1 ls=1.5 "Test Results";
proc gplot data=want;
plot test_a*day=1 / haxis=axis1 vaxis=axis2 skipmiss legend=legend1;
plot2 test_b*day=2 test_c*day=3 / haxis=axis1 vaxis=axis3 overlay skipmiss legend=legend2;
run;






zimcom
Pyrite | Level 9

This is indeed what I am trying to plot, this is great!



Thank you so much!
