Claus_Stenberg
Fluorite | Level 6

Trying to get a a the symbols (scatter) and line (series) legends be merge together but can not get the group label on. Any ideas on how to solve this in a dynamic way?
So in the below simple example I want to have F and M included in the legend label.

proc sort data=sashelp.class out=class;
by age;
proc sgplot data=class;
scatter x=age y=height / group=sex;
series x=age y=height /  group=sex;
legenditem type=markerline name="symbol"/ lineattrs=GraphData1 markerattrs=GraphData1;
legenditem type=markerline name="line"  / lineattrs=GraphData2 markerattrs=GraphData2;
keylegend  "symbol" "line" /title="Sex";
run;

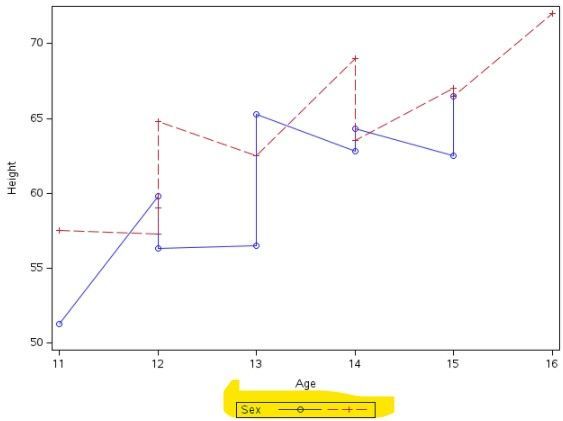

merged keylegend.jpg



1 ACCEPTED SOLUTION

Accepted Solutions
Ksharp
Super User
proc sort data=sashelp.class out=class;
by age;
proc sgplot data=class;
series x=age y=height /  group=sex markers;
run;

View solution in original post

2 REPLIES 2
Ksharp
Super User
proc sort data=sashelp.class out=class;
by age;
proc sgplot data=class;
scatter x=age y=height / group=sex;
series x=age y=height /  group=sex;
legenditem type=markerline name="symbol"/label='Female' lineattrs=GraphData1 markerattrs=GraphData1;
legenditem type=markerline name="line"  /label='Male'  lineattrs=GraphData2 markerattrs=GraphData2;
keylegend  "symbol" "line" /title="Sex";
run;
Ksharp
Super User
proc sort data=sashelp.class out=class;
by age;
proc sgplot data=class;
series x=age y=height /  group=sex markers;
run;
