Earthrise (Bubble/Ellipse Plot)

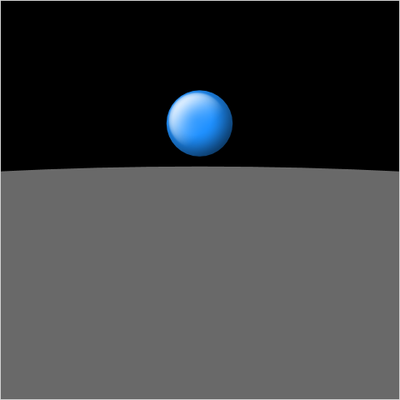

Earthrise (Apollo 11)
Figured I should do something to mark the 50th anniversary of the Moon Landing, even if it's only a silly Earthrise bubble/ellipse plot!
* Fun w/SAS ODS Graphics: Apollo 11 Earthrise Bubble/Ellipse Plot
See the real Apollo 11 deal at history.nasa.gov/ap11ann/kippsphotos/6550.jpg;
ods graphics / height=5in width=5in antialias; * Original NASA image was 600 x 600;
data moon; * Generate a point for the earth;
x=300; y=185; r=50; * x, y, radius for bubble plot of "earth";
proc template; * "Earth Rise" chart (bubble + eclipse plot);
define statgraph ellipseparm;
begingraph / opaque=true border=false backgroundcolor=black pad=0 subpixel=on; * Black background;
layout overlayequated /
equatetype=square opaque=true border=true backgroundcolor=black wallcolor=black WALLDISPLAY=(FILL)
commonaxisopts=(viewmin=0 viewmax=600) /* Limit X-Y axes range to 0=600 */
xaxisopts=(display=none offsetmin=0 offsetmax=0)
yaxisopts=(display=none offsetmin=0 offsetmax=0 reverse=true); * Got coordinates from MS-Paintbrush, so use reverse y-axis;
bubbleplot x=x y=y size=r /
fillattrs=(color=dodgerblue) display=(fill) dataskin=sheen relativescale=false; * Dodger Blue Earth;
ellipseparm xorigin=300 yorigin=6250 semimajor=6000 semiminor=6000 slope=0 /
display=(fill) fillattrs=(color=cx696969); * Dim Gray Moon (semimajor=semiminor=circle);
endlayout;
endGraph;
end;
run;
proc sgrender data=moon template=ellipseparm;
Nice. How about adding some textures using images?
Good idea - haven't tried this technique, but will look into it. In the meantime, I borrowed from your 2017 solar eclipse post and added some "stars" with a scatter plot. Also tossed in some random "craters" with a bubble plot.
Earthrise (now with scatterplot stars and bubbleplot craters!)
* Fun w/SAS ODS Graphics: Apollo 11 Earthrise Bubble/Ellipse Plot
See the real Apollo 11 deal at history.nasa.gov/ap11ann/kippsphotos/6550.jpg;
ods graphics / height=5in width=5in antialias dataskinmax=2000; * Original NASA image was 600 x 600;
data earth; * Generate a point for the earth;
x=300; y=185; r=50; * x, y, radius for bubble plot of "earth";
data stars; * Generate random "stars";
do i=1 to 1000;
xs=ceil(ranuni(1)*600);
ys=ceil(ranuni(1)*600);
output;
end;
data craters; * Generate 35 random non-overlapping "craters";
array x[500] _temporary_; array y[500] _temporary_; array r[500] _temporary_;
nc=0;
do i=1 to 500;
xc=30+ceil(ranuni(2)*540); * X-coordinate from 30-570;
yc=280+ceil(ranuni(2)*290); * y-coordinate from 280-570;
rc=10+ceil(ranuni(2)*20); * radius from 10-30;
do j=1 to nc; * Reject new crater if not at least 15 units away from prior craters;
if sqrt((xc-x[j])**2+(yc-y[j])**2)<rc+r[j]+15 then goto rejected;
end;
nc+1; x[nc]=xc; y[nc]=yc; r[nc]=rc; output; * Save crater points, radius;
if nc=35 then stop; * Limit to 35 craters;
rejected:
end;
data earthstarscraters; * Merge data together for chart;
set earth stars craters;
proc template; * "Earth Rise" chart (bubble + eclipse plot);
define statgraph ellipseparm;
begingraph / opaque=true border=false backgroundcolor=black pad=0 subpixel=on; * Black background;
layout overlayequated /
equatetype=square opaque=true border=true backgroundcolor=black wallcolor=black WALLDISPLAY=(FILL)
commonaxisopts=(viewmin=0 viewmax=600) /* Limit X-Y axes range to 0=600 */
xaxisopts=(display=none offsetmin=0 offsetmax=0)
yaxisopts=(display=none offsetmin=0 offsetmax=0 reverse=true); * Got coordinates from MS-Paintbrush, so use reverse y-axis;
scatterplot x=xs y=ys / markerattrs=(symbol=diamondfilled color=white size=2pt); * Stars;
bubbleplot x=x y=y size=r /
fillattrs=(color=dodgerblue) display=(fill) dataskin=sheen relativescale=false; * Dodger Blue Earth;
ellipseparm xorigin=300 yorigin=6250 semimajor=6000 semiminor=6000 slope=0 /
display=(fill) fillattrs=(color=cx696969); * Dim Gray Moon (semimajor=semiminor=circle);
bubbleplot x=xc y=yc size=rc /
fillattrs=(color=cx696969) display=(fill) dataskin=crisp relativescale=false; * Dim Gray craters w/crisp dataskin;
endlayout;
endGraph;
end;
run;
proc sgrender data=earthstarscraters(obs=max) template=ellipseparm;
