Fun w/SAS ODS Graphics: Morning Headline News for Wed., Nov. 9, 2016

[tc]

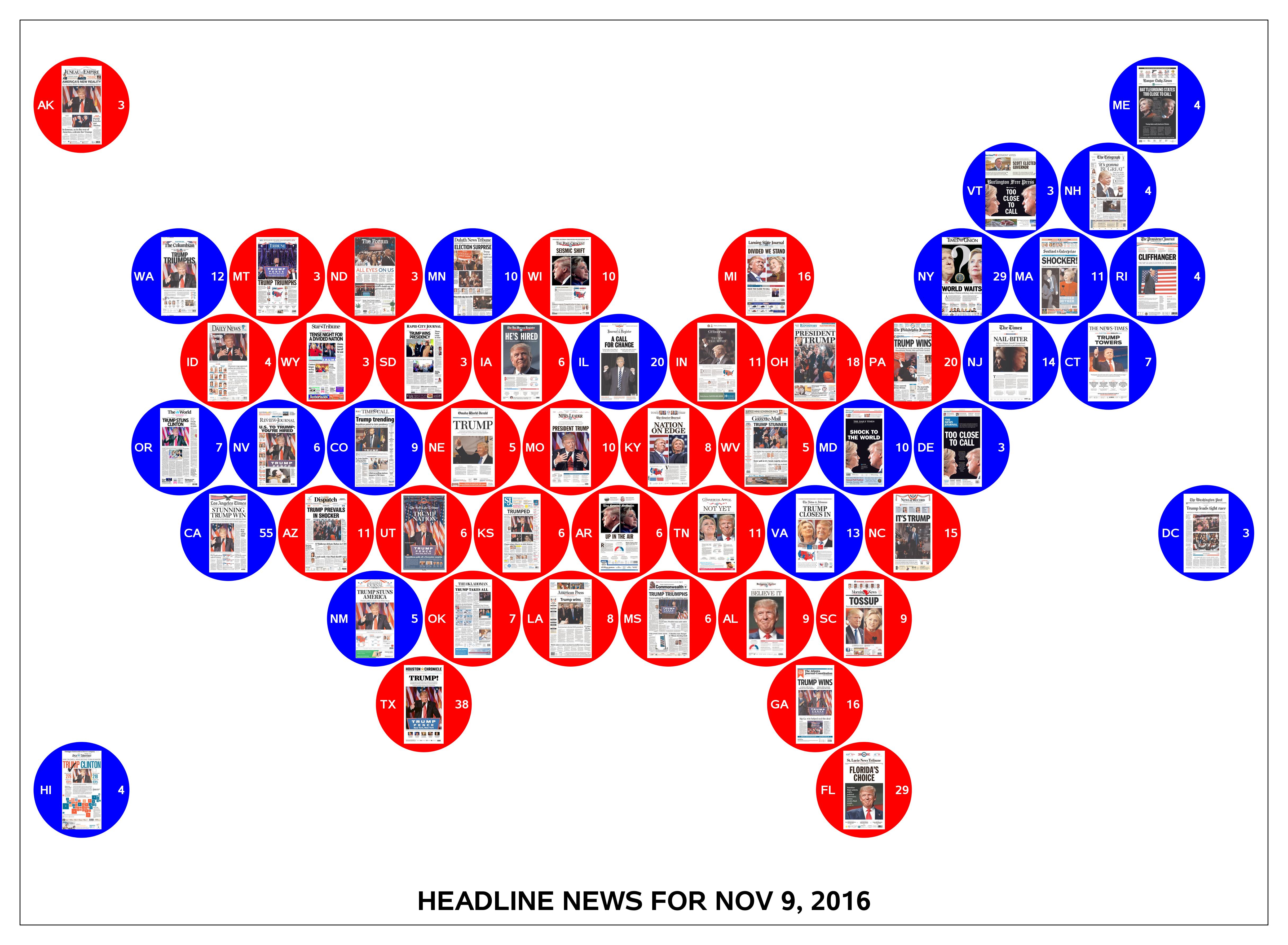

Here's a cartogram that presents Presidential election results together with morning-after newspaper front page thumbnails for each of the 50 states + DC (full-size front pages can be viewed at the Newseum).

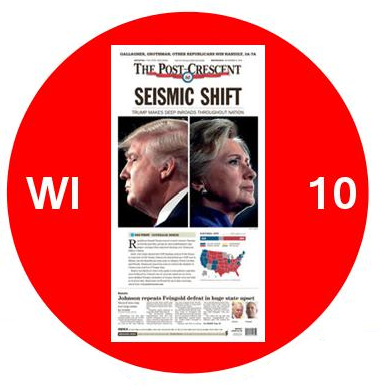

DETAIL (right-click image above, select open-image-in-new-tab & click magnifying glass to see detail)

CODE

*==> Tile Map of 2016 Presidential election outcome w/morning headlines;

*==> US tile map coordinates from Matt Chambers
     drive.google.com/file/d/0B24QRdfcy_JJZFRKLUZzMHZYbG8/view;

data StateGrid;
input statecode : $2. row column@@;
row=-row;                   * Flip map's y-coordinates (FL at bottom, ME at top!);
row=.875*row;               * Tighten up line spacing;
StateIDcolumn=column-.365;  * X-position of state abbreviation labels;
VoteIDcolumn=column+.32;    * X-position of state's # of electoral votes;

cards;
AK 0 0.5 ME 0 11.5
VT 1 10 NH 1 11
WA 2 1.5 MT 2 2.5 ND 2 3.5 MN 2 4.5 WI 2 5.5 MI 2 7.5 NY 2 9.5 MA 2 10.5 RI 2 11.5
ID 3 2 WY 3 3 SD 3 4 IA 3 5 IL 3 6 IN 3 7 OH 3 8 PA 3 9 NJ 3 10 CT 3 11
OR 4 1.5 NV 4 2.5 CO 4 3.5 NE 4 4.5 MO 4 5.5 KY 4 6.5 WV 4 7.5 MD 4 8.5 DE 4 9.5
CA 5 2 AZ 5 3 UT 5 4 KS 5 5 AR 5 6 TN 5 7 VA 5 8 NC 5 9 DC 5 12
NM 6 3.5 OK 6 4.5 LA 6 5.5 MS 6 6.5 AL 6 7.5 SC 6 8.5
TX 7 4 GA 7 8
HI 8 0.5 FL 8 8.5
;
*==> Get state winners (en.wikipedia.org/wiki/United_States_presidential_election,_2016);

data stateWinner;
input statecode : $2. party $1.@@;
cards;
AL R FL R LA R NE R OK R VT D
AK R GA R ME D NV D OR D VA D
AZ R HI D MD D NH D PA R WA D
AR R ID R MA D NJ D RI D WV R
CA D IL D MI R NM D SC R WI R
CO D IN R MN D NY D SD R WY R
CT D IA R MS R NC R TN R
DE D KS R MO R ND R TX R
DC D KY R MT R OH R UT R
;
*==> Get electoral votes in each state (en.wikipedia.org/wiki/Electoral_College_(United_States));

data stateVotes;
input statecode : $2. votes@@;
cards;
AL 9 AK 3 AZ 11 AR 6 CA 55 CO 9 CT 7 DC 3 DE 3 FL 29 GA 16 HI 4 ID 4 IL 20 IN 11 IA 6 KS 6
KY 8 LA 8 ME 4 MD 10 MA 11 MI 16 MN 10 MS 6 MO 10 MT 3 NE 5 NV 6 NH 4 NJ 14 NM 5 NY 29 NC 15
ND 3 OH 18 OK 7 OR 7 PA 20 RI 4 SC 9 SD 3 TN 11 TX 38 UT 6 VT 3 VA 13 WA 12 WV 5 WI 10 WY 3
;
*==> Merge map coordinates, state winners and electoral votes;

proc sql;
create table stategridParty as
select sg.*, sw.Party, sv.Votes
from stategrid sg, statewinner sw, statevotes sv
where sg.statecode=sw.statecode and sg.statecode=sv.statecode order by sw.statecode;

proc sql noprint;   * Get a list of state codes (used to map states to image files);
select statecode into :stcodes separated by ' ' from stateWinner order by 1;

*==> Thumbnails of 11-9-2016 headlines (one per state), full-size front pages available at:
*==> www.newseum.org/todaysfrontpages/?tfp_display=archive-date&tfp_archive_id=110916;

options macrogen; * A little less confusing if you see what is generated;
%macro gensymbols;
%do s=1 %to 51;   * Define symbols, link to .png thumbnail w/state headlines;
  %let st=%scan(&stcodes,&s);
  symbolimage name=sym&st image="/folders/myfolders/News/&st..png";
%end;
                  * Attrobute map ties symbols to state codes values from earler SQL;
discreteattrmap name="symbols" / ignorecase=true trimleading=true;
%do s=1 %to 51;
  %let st=%scan(&stcodes,&s);
  value "&st" / markerattrs=(symbol=sym&st size=74pt);
%end;
enddiscreteattrmap;
%mend;

*==> Data prep done, time for fun - chart states, winners, votes, headlines!;

ods listing image_dpi=216 gpath='/folders/myfolders'; * $249 laptop is memory-challenged, so 216 dpi;
ods graphics on / reset imagefmt=jpeg noborder antialias width=22.5in height=16.5in imagename="ELECTION2016";
proc template;
define statgraph ellipseparm;
begingraph;             * Map political parties to their colors;
  discreteAttrMap name='PartyColor';
    value 'D' / fillattrs=(color=blue);
    value 'R' / fillattrs=(color=red);
   endDiscreteAttrMap;
   discreteAttrVar attrVar=PartyC var=Party attrMap="PartyColor";
   %gensymbols;                                        * Map state codes to .png files w/front page thumbnails;
   discreteattrvar attrvar=StateMarkers var=statecode attrmap="symbols";
   layout overlayequated / xaxisopts=(offsetmin=.01 offsetmax=.01 display=none)
     yaxisopts=(offsetmin=.01 offsetmax=.01 display=none);
     entry "HEADLINE NEWS FOR NOV 9, 2016" / valign=bottom textattrs=(size=24pt weight=bold);
     ellipseparm semimajor=.49 semiminor=.49 slope=0    /* Red/blue circles represent party */
                 xorigin=column yorigin=row  / group=partyC display=(fill);
     textplot x=StateIDcolumn y=row text=statecode /    /* Plot state code inside circle on left */
              position=center textattrs=(color=CXffffff size=11pt weight=bold);
     textplot x=voteIDcolumn y=row text=votes /         /* Plot # electoral votes inside circle on right */
              position=center textattrs=(color=CXffffff size=11pt weight=bold);
     scatterplot x=column y=row / group=StateMarkers;   /* Add morning headline thumbnails */
   endlayout;
  endGraph;
 end;
run;

proc sgrender data=stategridParty template=ellipseparm;
run;
