Change Y-axis range in CIF plot (PROC PHREG)

[lansoprazole]

Hi,

I am trying to expand the Y-axis (probability) of CIF plot that is created by PROC PHREG.

I found that TIMERANGE and RANGE only change the X-axis range (I was able to customize the X-axis range).

Is there any option to change the Y-axis to be between 0 - 1?

This is my first line code;

proc phreg data = XYZ plots (range = (0,15))= cif;

Thanks,

W

[Zard]

If you still need it... you can modify the plot template to customize the y-axis range in a CIF plot.

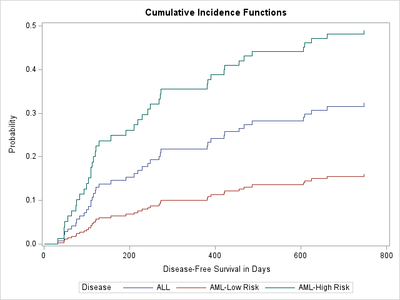

Here is a default plot:

ods select CIFPlot;
proc phreg data=Bmt plots(overlay)=cif;
  class Disease;
  model T*Status(0)=Disease / eventcode(cox)=1;
  baseline covariates=Risk;
run;

You can add the following LinearOpts= in the YaxisOpts option to specify your own y-axis range:

proc template;
  define statgraph Stat.PHReg.Graphics.Cif;
    dynamic title1 title2 title3 title4 xviewMin xviewMax group groupIndex
      groupName plotCL transparency _byline_ _bytitle_ _byfootnote_;
    BeginGraph;
      entrytitle TITLE1 TITLE3;
      entrytitle TITLE2 TITLE4 / textattrs=GRAPHVALUETEXT;
      layout overlay / xaxisopts=(linearopts=(viewmin=XVIEWMIN viewmax=
       XVIEWMAX)) yaxisopts=(label="Probability"
       linearopts=(viewmin=0 viewmax=1 tickvaluelist=(0 .2 .4 .6 .8 1.0)));
       if (PLOTCL)
        bandplot LimitLower=LOWERCIF LimitUpper=UPPERCIF x=TIME / group
          =GROUP index=GROUPINDEX modelname="CIF" datatransparency=
          transparency;
       endif;
      stepplot y=CIF x=TIME / group=GROUP index=GROUPINDEX name="CIF";
      if (EXISTS(GROUP))
        discretelegend "CIF" / location=outside title=GROUPNAME;
      endif;
    endlayout;
    if (_BYTITLE_)
      entrytitle _BYLINE_ / textattrs=GRAPHVALUETEXT;
    else
      if (_BYFOOTNOTE_)
        entryfootnote halign=left _BYLINE_;
     endif;
    endif;
    EndGraph;
  end;
run;

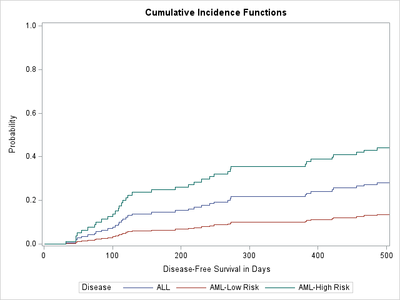

ods select CIFPlot;
proc phreg data=Bmt plots(overlay range=0,500)=cif;
  class Disease;
  model T*Status(0)=Disease / eventcode(cox)=1;
  baseline covariates=Risk;
run;

Delete the modified template to revert back to the default plot:

proc template;
  delete Stat.PHReg.Graphics.Cif;
run;
