kisumsam
Quartz | Level 8

I have a quick question about how the autocorrelation is computed in the ACF plot and I'm hoping someone can help.



I have this simple data set:

data test;
input a b;
datalines;
1 .
2 1
3 2
4 3
5 4
6 5
7 6
8 7
9 8
10 9
;
run;

Basically, the test data has variable A and B. Variable B has the lagged value of A.



I'm trying to calculate the autocorrelation of A at lag 1. I read that, by definition, the autocorrelation of A at lag 1 is just the correlation of A with its own lagged value (which is B).



So I did a Proc Corr on A and B:



proc corr data=test;
var a b;
run;

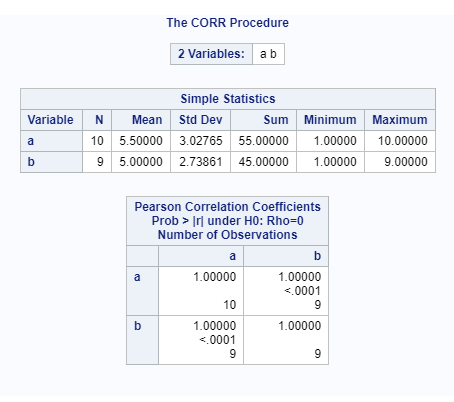

This gets me the correlation of 1 which makes perfect sense.






I then plot the ACF plot for A using Proc Timeseries:



proc timeseries data=test plots=acf;
var a;
run;

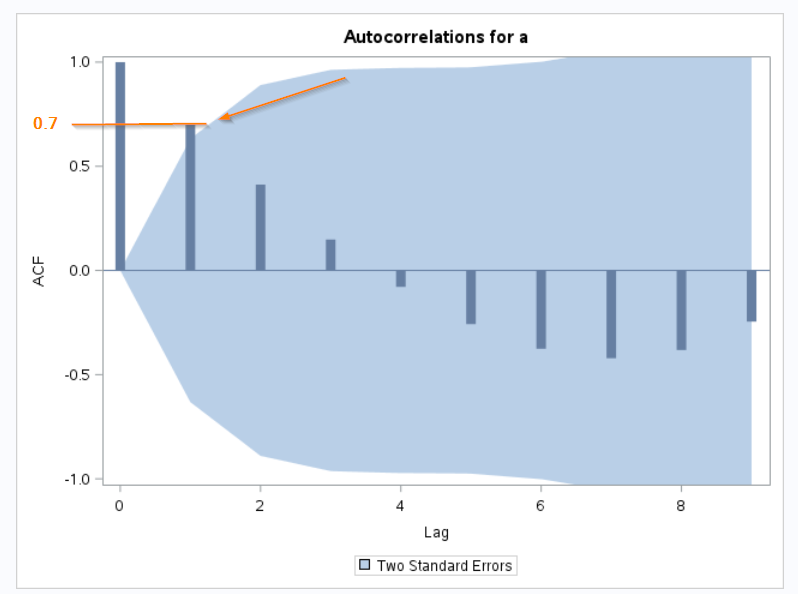

I looked at the second bar in the plot which shows the autocorrelation at lag 1 and it is showing something close to 0.7 instead:



temp 2.png



Am I doing the plot incorrectly? How come the ACF plot show an autocorrelation of 0.7 when it should be just 1?

1 ACCEPTED SOLUTION

Accepted Solutions
stat_sas
Ammonite | Level 13

Hi,



Autocorrelation calculation is different from pearson correlation coefficient. Below is the formula for autocorrelation.



Image result for autocorrelation formula



Please try this



data test;
input a b;
datalines;
1 2
2 3
3 4
4 5
5 6
6 7
7 8
8 9
9 10
10 .
;
run;



proc sql;
select mean(a) into :average from test;
quit;



data want;
set test;
a1 = (a-&average);
a2 = (b-&average);
a3 = a1*a2;
a4 = (a-&average)**2;
run;



proc means data=want sum;
var a1 a2 a3 a4;
run;



r1 =  sum(a3)/sum(a4) = 0.7

View solution in original post

3 REPLIES 3
Ksharp
Super User

this could approach your result.



data test;
input a b;
datalines;
1 .
2 1
3 2
4 3
5 4
6 5
7 6
8 7
9 8
10 9
;
run;
proc reg data=test;
model b=a/noint;
quit;
kisumsam
Quartz | Level 8

Hi I ran your code but I don't seem to get the right answer.



My question is that I think the autocorrelation between A and B is 1 because B is just a lagged value of A.

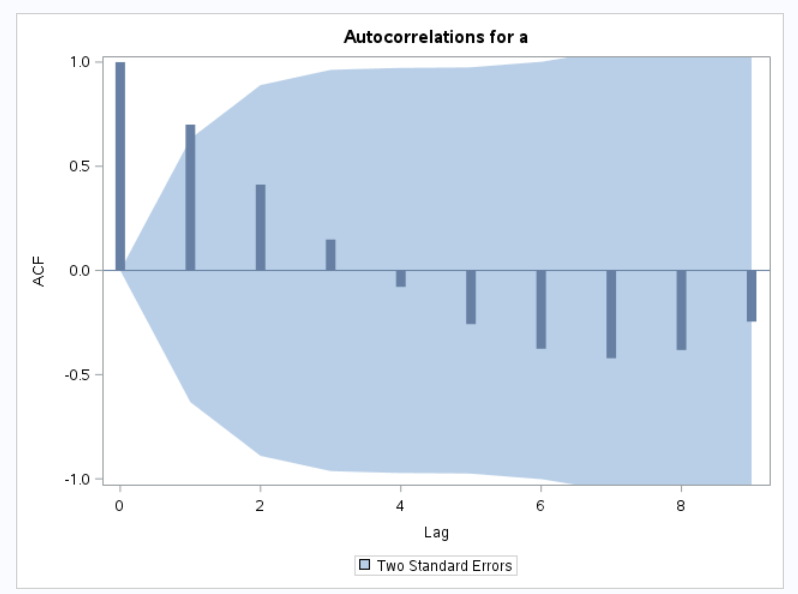

However, on the ACF plot, the autocorrelation at lag 1 is showing something close to 0.7:



temp 3.png



Do I have some misunderstanding on the definition of autocorrelation?



stat_sas
Ammonite | Level 13

Hi,



Autocorrelation calculation is different from pearson correlation coefficient. Below is the formula for autocorrelation.



Image result for autocorrelation formula



Please try this



data test;
input a b;
datalines;
1 2
2 3
3 4
4 5
5 6
6 7
7 8
8 9
9 10
10 .
;
run;



proc sql;
select mean(a) into :average from test;
quit;



data want;
set test;
a1 = (a-&average);
a2 = (b-&average);
a3 = a1*a2;
a4 = (a-&average)**2;
run;



proc means data=want sum;
var a1 a2 a3 a4;
run;



r1 =  sum(a3)/sum(a4) = 0.7
