Generate line a mean seperation line graph for Repeated measurement

[ngui]

Hi,

I have successfully executed the repeated measurement code. While using PROC PLM, I can visualize the mean separation by alphabet. However, the line graph generated by SAS is not what I wish to present in my thesis. Do you know how I can generate a line graph in SAS that looks similar to an Excel line graph that I show below?

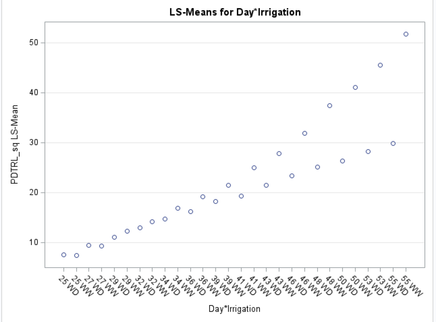

Line graphs from SAS

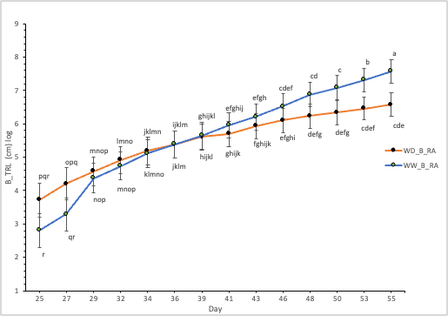

Line graph from Excel

Code for repeated measurement

Data RM;

  set RM;

  TRL_new = TRL ;

  TRL_sq = sqrt(TRL_new);

  TRL_log = log(TRL_new+1);

run;

ods graphics on;

proc sort data= RM;

by EU Day;

run;

%LET type=un; /*"Using the unstructured covariance matrix" */

proc mixed data= RM cl plots=residualpanel (conditional) plot=boxplot (conditional);

      class Block Day Accession Irrigation EU;

      model A_new = Accession Day Irrigation

                    Accession*Day Accession*Irrigation Irrigation*Day Accession*Irrigation*Day

                     / ddfm=satterth;

      Random Block;

      repeated Day / subject=EU type=&type r rcorr;

      lsmeans       Accession Day Irrigation

                    Accession*Day Accession*Irrigation Irrigation*Day Accession*Irrigation*Day

                     / adjust=Tukey;

   store ABCXYZ / label='PLM: Getting Started';  /* Store (Save the results from Proc Mixed) */

run;

proc plm restore=ABCXYZ; /* Use for Prost Hoc Analysis with PROC PLM */

   lsmeans Irrigation*day / lines linestable; /* Use for Prost Hoc Analysis for irrigation and day factors*/

   ods output LSMLines=LSMLines;

run;

/* end of program */

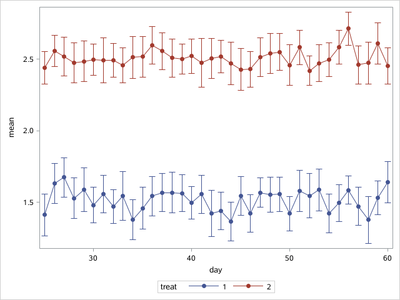

[Ksharp]

data have;
call streaminit(123);
do treat=1 to 2;
  do day=25 to 60;
    do i=1 to 20;
      x=rand('uniform')+treat;output;
	end;
  end;
end;
run;

proc summary data=have nway;
class treat day;
var x;
output out=want mean=mean lclm=lclm uclm=uclm;
run;

proc sgplot data=want;
series x=day y=mean/group=treat markers markerattrs=(symbol=circlefilled);
scatter x=day y=mean/yerrorlower=lclm yerrorupper=uclm group=treat markerattrs=(size=0);
run;

[sbxkoenk]

• https://support.sas.com/sassamples/graphgallery/PROC_SGPLOT.html
• Sample 42542: Plot means with standard error bars from calculated data with PROC SGPLOT
  https://support.sas.com/kb/42/542.html
• Sample 35053: Mean percent change in allergy relief
  https://support.sas.com/kb/35/053.html
• Sample 35169: Stock chart
  https://support.sas.com/kb/35/169.html

Koen
