Displaying Multiple Box Plots with Different Ranges in a same figure

[bhr-q]

Hello,

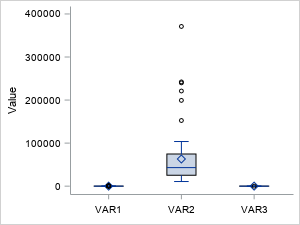

I have three variables (columns), and I was asked to create box plots for all three variables in the same figure. I used the below code, but due to the large differences in the ranges of these three variables, the box plots for var1 and var3 are not clear.

data long;
    set have;
    Variable = "Var1"; Value = Var1; output;
    Variable = "Var2"; Value = Var2; output;
    Variable = "Var3"; Value = Var3; output;
    drop Var1 Var2 Var3;
run;
proc sgplot data=long noborder;
    vbox Value / category=Variable;
run;

Could you please help me how to fix that?

Thank you,

[PaigeMiller]

In general the solution to having disparate scales is to change the scale of the Y axis. One was to do this is to use a logarithmic scale. This will fail if some of the data values are actually zero — and I also don't know if it will work for VBOX because I never tried it.

There are many options in PROC SGPLOT for creating logarithmic scales. For example:

proc sgplot data=long noborder;
    vbox Value / category=Variable;
    yaxis type=log logbase=10 logstyle=logexpand;
run;

[Ksharp]

You can suppress to print these outliers to make your graphic look better.

proc sgplot data=sashelp.heart;
vbox weight/category=bp_Status nooutliers;
run;

[BrunoMueller · Accepted solution]

You could use proc SGPANEL and have the the box plots as rows. See this example:

data long;
  set sashelp.cars;
  length variable $ 32;
  Variable = "msrp"; Value = msrp; output;
  Variable = "horsepower"; Value = horsepower; output;
  Variable = "mpg_city"; Value = mpg_city; output;
  keep variable value;
run;

proc sgpanel data=long ;
  panelby variable / uniscale=column columns=1 ;
  vbox value;
run;

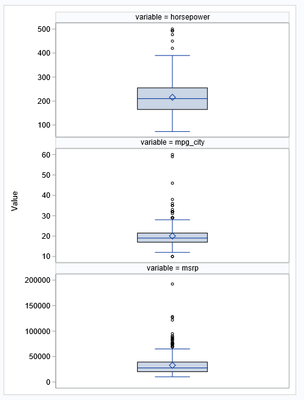

Which will create this:
