Hi,
I am generating a RTF report with 3 tables. I would like to put rows in bold-face if values in a p value column are lower than a threshold. What I have done is basically to duplicate the p value column, place it as the first variable in a SAS data set, and use it in a COMPUTE block. I ended up having to use the .sum keyword inconsistently in these 3 tables in order to correctly format my rows (i.e. only bold rows when p values are < a threshold). I haven't been able to figure out why such inconsistency. But I think the COMPUTE blocks in these 3 tables may explain why. I am giving a summary of my .sum usage in the three tables. I am hoping someone (Cynthia?) can show me the code that will result in consistent output.
| Table | syntax form of variable to evaluate | Result |
| Table S1 | dup_p_value.sum | Table rows correctly highlighted |
| Table S1 | dup_p_value | every Table row in boldface |
| Table S3 | dup_rG_p_value.sum | Sometimes Table rows correctly highlighted; sometimes an error returned |
| Table S3 | dup_rG_p_value | every Table row in boldface |
| Table S4 | pval_dup | Table rows correctly highlighted |
| Table S4 | pval_dup.sum | an error returned and blank table body |
I am copying the COMPUTE block code and a printscreen of a table (Table S1, Table S3, and Table S4). I will copy my full working SAS code at the end as it is lengthy.

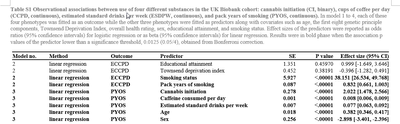

Table S1. Here is the SAS cod and output of Table S1 which rows with p values < a threshold are displayed correctly in bold-face
compute SE; /*compute predictor/character;*/
if dup_p_value.sum < 0.0125 then call define(_row_, 'style', 'style=[font_weight=bold]' );
endcomp;

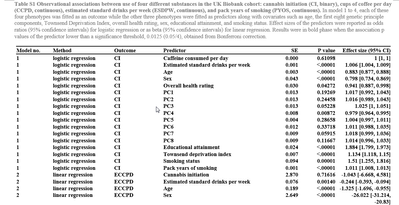

Table S1. Actually the use of .sum keyword is unnecessary, because the purpose of dup_p_value is for display, not summation. However, using dup_p_value in the COMPUTE block resulted in all the rows in boldface
compute SE; /*compute predictor/character;*/
if dup_p_value < 0.0125 then call define(_row_, 'style', 'style=[font_weight=bold]' );
endcomp;

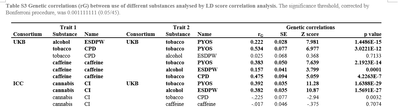

Table S3. Using .sum in the COMPUTE block yesterday returned an error: ERROR: The variable type of DUP_RG_P_VALUE.SUM is invalid in this context. But it is working now.
compute rG_esti;
if dup_rG_p_value.sum < 0.001111111 then
do;
call define(_row_, 'style', 'style=[font_weight=bold]' );
end;
endcomp;

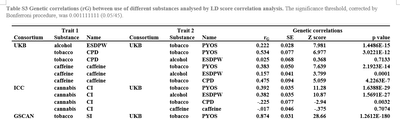

Table S3. After the removal of .sum, every row is in bold-face, even for those p values > the threshold.
compute rG_esti;
if dup_rG_p_value < 0.001111111 then
do;
call define(_row_, 'style', 'style=[font_weight=bold]' );
end;
endcomp;

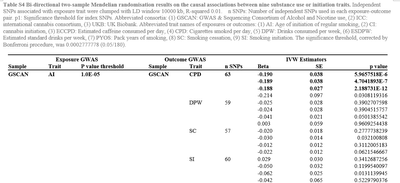

Table S4. This table is correctly formatted without the use of .sum
compute method_abbreviated/character ;
if pval_dup < 0.0002777778 then do;
call define(_row_, 'style', 'style=[font_weight=bold]' );
end;
endcomp;

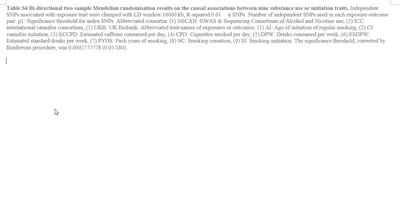

Table S4. Using .sum keyword returns the error: "ERROR: The variable type of PVAL_DUP.SUM is invalid in this context.
"
compute method_abbreviated/character ;
if pval_dup.sum < 0.0002777778 then do;
call define(_row_, 'style', 'style=[font_weight=bold]' );
end;
endcomp;
and results in blank table
My full code for Table S1 (working)
proc report data=tem._NU_manuscript04_table&table_order.
contents="" /*remove default 2nd node*/
nowd
split='|'
style(report)={width=100%
cellpadding=8px
font_face='Times New Roman'
font_size=10pt
borderwidth=1.5pt /* border thickness*/
background = TRANSPARENT}
style(header)={just=center
font_weight=bold
font_face='Times New Roman'
font_size=10pt
font_style=roman
protectspecialchars = OFF
background = TRANSPARENT}
style(column)={font_face='Times New Roman'
font_size=10pt
background = TRANSPARENT}
;
/*The COLUMN statement is used to list each report column*/
column OBSNO dup_p_value iteration model dep_var_label predictor SE p_value effect_size_95CI
;
/*Each column, in turn, has a DEFINE statement that describes how that column is created and formatted.*/
/*Every value of these two variables was displayed rather than just the first occurrence*/
%def_group( cVar=iteration
,option=group
,cName=Model no.
,isFmt=N
,cFmt=
,cWide=1.5 cm
,headerAlign=left
,colAlign=left );
%def_group( cVar=model
,option=group
,cName=Method
,isFmt=N
,cFmt=
,cWide=2.5 cm
,headerAlign=left
,colAlign=left );
DEFINE OBSNO/ ORDER NOPRINT ;
/*Set conditional variables to noprint*/
define dup_p_value /noprint;
%def_display( cVar=dep_var_label, cName=Outcome,isFmt=N,cFmt=,cWide=2 cm, headerAlign= left, colAlign= left); /*cFmt=$var_licit_substance_use_abb.*/
%def_display( cVar=predictor, cName=Predictor,isFmt=N,cFmt= ,cWide=4 cm, headerAlign= left, colAlign= left);
*%def_display( cVar=sample_size, cName=Sample size, cWide=1.5 cm, headerAlign= right, colAlign= right);
%def_display( cVar=SE, cName=SE,isFmt=Y, cFmt=5.3, cWide=1.5 cm, headerAlign= right, colAlign= right);
%def_display( cVar=p_value, cName=P value,isFmt=N, cFmt=, cWide=1.5 cm, headerAlign=right, colAlign=right);
%def_display( cVar=effect_size_95CI, cName=Effect size (95% CI),isFmt=N, cFmt=, cWide=2.25 cm, headerAlign=right, colAlign=right);
/*Bold rows if p values survive multiple testing 0.0125 (0.05/4)
condition variable dup_p_value must be on the left of the COMPUTE block variable predictor
call define(_col_) applies the format on the compute variable column-wide
call define(_row_) applies the format across entire row*/
compute SE; /*compute predictor/character;*/
if dup_p_value.sum < 0.0125 then call define(_row_, 'style', 'style=[font_weight=bold]' );
endcomp;
compute after _page_ /style={just=l
font_size=10pt
font_face='Times New Roman'
borderbottomcolor=white
bordertopcolor=black};
endcomp;
run;
My full code for Table S3 (working)
proc report data=tem._NU_manuscript04_table&table_order.
contents="" /*remove default 2nd node*/
nowd
split='|'
style(report)={width=100%
cellpadding=8px
font_face='Times New Roman'
font_size=10pt
borderwidth=1.5pt /* border thickness*/
background = TRANSPARENT}
style(header)={just=center
font_weight=bold
font_face='Times New Roman'
font_size=10pt
font_style=roman
protectspecialchars = OFF
background = TRANSPARENT}
style(column)={font_face='Times New Roman'
font_size=10pt
background = TRANSPARENT}
;
/*The COLUMN statement is used to list each report column*/
column gap01 ("\brdrb\brdrdot\brdrw5\brdrcf1 Trait 1" trait1_consortium trait1_substance trait1_name)
gap02 ("\brdrb\brdrdot\brdrw5\brdrcf1 Trait 2" trait2_consortium trait2_substance trait2_name)
OBSNO
gap03 ("\brdrb\brdrdot\brdrw5\brdrcf1 Genetic correlations" dup_rG_p_value rG_esti rG_SE rG_Z_score rG_p_value)
;
%def_group( cVar=trait1_consortium /*variable name*/
,option=group /*specify option=order if to order data alphabeticall; = group if not to order data*/
,cName=Consortium /*column header*/
,isFmt=N /*apply a format to the variable or not*/
,cFmt= /*which format*/
,cWide=1.25 cm
,headerAlign=left
,colAlign=left );
%def_display( cVar=trait1_substance, cName=Substance, cWide=1 cm, headerAlign= left, colAlign= left);
%def_display( cVar=trait1_name, cName=Name,isFmt=N,cFmt= ,cWide=1.25 cm, headerAlign= left, colAlign= left);
%def_group( cVar=trait2_consortium /*variable name*/
,option=group /*specify option=order if to order data alphabeticall; = group if not to order data*/
,cName=Consortium /*column header*/
,isFmt=N /*apply a format to the variable or not*/
,cFmt= /*which format*/
,cWide=1.25 cm
,headerAlign=left
,colAlign=left );
%def_display( cVar=trait2_substance, cName=Substance, cWide=1 cm, headerAlign= left, colAlign= left);
%def_display( cVar=trait2_name, cName=Name,isFmt=N,cFmt= ,cWide=1.25 cm, headerAlign= left, colAlign= left);
/*Each column, in turn, has a DEFINE statement that describes how that column is created and formatted.*/
DEFINE OBSNO/ ORDER NOPRINT ;
/*Set conditional variables to noprint*/
define dup_rG_p_value /noprint;
%def_display( cVar=rG_esti, cName=r^{sub G},isFmt=Y,cFmt=5.3, cWide=0.75 cm, headerAlign=right, colAlign=right);
%def_display( cVar=rG_SE, cName=SE,isFmt=Y,cFmt=5.3, cWide=0.75 cm, headerAlign=right, colAlign=right);
%def_display( cVar=rG_Z_score, cName=Z score,isFmt=Y,cFmt=5.3, cWide=1 cm, headerAlign=right, colAlign=right);
%def_display( cVar=rG_p_value, cName=p value, cWide=2 cm, headerAlign=right, colAlign=right);
/*define all the gap variables*/
%def_display( cVar=gap01 ,cName= ,isFmt=N ,cFmt= ,cWide=0.25%);
%def_display( cVar=gap02 ,cName= ,isFmt=N ,cFmt= ,cWide=0.25%);
%def_display( cVar=gap03 ,cName= ,isFmt=N ,cFmt= ,cWide=0.25%);
/*Bold rows if p values survive multiple testing 0.001111111 (0.05/45)
condition variable dup_rG_p_value must be on the left of the COMPUTE block variable rG_esti
call define(_col_) applies the format on the compute variable column-wide
call define(_row_) applies the format across entire row
Every row is bolded. why?
*/
compute rG_esti;
if dup_rG_p_value.sum < 0.001111111 then
do;
call define(_row_, 'style', 'style=[font_weight=bold]' );
end;
endcomp;
compute after _page_ /style={just=l
font_size=10pt
font_face='Times New Roman'
borderbottomcolor=white
bordertopcolor=black};
endcomp;
run;
My full code for Table S4 (working)
proc report data=tem._NU_manuscript04_table&table_order.
contents="" /*remove default 2nd node*/
nowd
split='|'
style(report)={width=100%
cellpadding=8px
font_face='Times New Roman'
font_size=10pt
borderwidth=1.5pt /* border thickness*/
background = TRANSPARENT}
style(header)={just=center
font_weight=bold
font_face='Times New Roman'
font_size=10pt
font_style=roman
protectspecialchars = OFF
background = TRANSPARENT}
style(column)={font_face='Times New Roman'
font_size=10pt
background = TRANSPARENT}
;
/*The COLUMN statement is used to list each report column*/
column ("\brdrb\brdrdot\brdrw5\brdrcf1 Exposure GWAS" exposure_consortium exposure exposure_clumping_p1 )
gap01 ("\brdrb\brdrdot\brdrw5\brdrcf1 Outcome GWAS" outcome_consortium outcome )
gap02 ("\brdrb\brdrdot\brdrw5\brdrcf1 IVW Estimators" nsnp OBSNO pval_dup method_abbreviated b se pval) /*ARROW, RIGHTWARDS 2192*/
;
/*Each column, in turn, has a DEFINE statement that describes how that column is created and formatted.*/
%def_group( cVar=exposure_consortium
,option=group
,cName=Sample
,isFmt=N
,cFmt=
,cWide=1.25 cm
,headerAlign=left
,colAlign=left );
%def_group( cVar=exposure
,option=group
,cName=Trait
,isFmt=N
,cFmt=
,cWide=1 cm
,headerAlign=left
,colAlign=left );
%def_group( cVar=exposure_clumping_p1 /*variable name*/
,option=group /*specify option=order if to order data alphabeticall; = group if not to order data*/
,cName=P value threshold /*column header*/
,isFmt=Y /*apply a format to the variable or not*/
,cFmt= e7. /*which format? Ew. Format writes numeric values in scientific notation. range: 7-32*/
,cWide=2 cm
,headerAlign=left
,colAlign=left );
%def_group( cVar=outcome_consortium /*variable name*/
,option=group /*specify option=order if to order data alphabeticall; = group if not to order data*/
,cName=Sample /*column header*/
,isFmt=N /*apply a format to the variable or not*/
,cFmt= /*which format*/
,cWide=1.25 cm
,headerAlign=left
,colAlign=left );
%def_group( cVar=outcome /*variable name*/
,option=group /*specify option=order if to order data alphabeticall; = group if not to order data*/
,cName=Trait /*column header*/
,isFmt=N /*apply a format to the variable or not*/
,cFmt= /*which format*/
,cWide=1 cm
,headerAlign=left
,colAlign=left );
%def_group( cVar=nsnp /*variable name*/
,option=group /*specify option=order if to order data alphabeticall; = group if not to order data*/
,cName=n SNPs /*column header*/
,isFmt=N /*apply a format to the variable or not*/
,cFmt= /*which format*/
,cWide=1 cm
,headerAlign=left
,colAlign=left );
/*Set conditional variables to noprint. Place these variables after the group variables*/
DEFINE OBSNO / ORDER NOPRINT;
DEFINE pval_dup/display noprint;
DEFINE method_abbreviated/display noprint;
%def_display( cVar=b, cName= Beta, isFmt=Y, cFmt=7.3, cWide=1 cm, headerAlign=left, colAlign=left);
%def_display( cVar=se, cName= SE, isFmt=Y, cFmt=7.3, cWide=1 cm, headerAlign=right);
%def_display( cVar=pval, cName= p value, cWide=2 cm, headerAlign=right);
/*define all the gap variables*/
%def_display( cVar=gap01 ,cName= ,isFmt=N ,cFmt= ,cWide=0.25%);
%def_display( cVar=gap02 ,cName= ,isFmt=N ,cFmt= ,cWide=0.25%);
/*Conditionally highlight rows with p value < 0.0002777778 (0.05/180)
condition variable pvalueAge must be on the left of the COMPUTE block variable betaEstiAge
call define(_col_) applies the format on the compute variable column-wide
call define(_row_) applies the format across entire row
*/
compute method_abbreviated/character ;
if pval_dup < 0.0002777778 then do;
call define(_row_, 'style', 'style=[font_weight=bold]' );
end;
endcomp;
compute after _page_ /style={just=l
font_size=10pt
font_face='Times New Roman'
borderbottomcolor=white
bordertopcolor=black};
endcomp;
run;
