Personalized chart with stacked bar and line chart

[mm84]

Hi community,

 Is it possible in SAS Visual Analytics 7.4 to create a personalized chart with a stacked bar chart and a line chart with two axes?

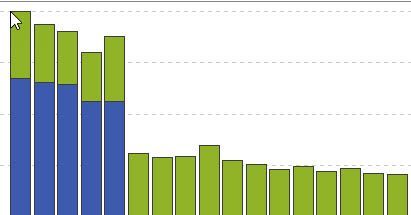

I was able to create a personalized chart, but when adding the bar chart I can't see the possibility to add more than one measure.

A normal bar chart let you add more than one measure, with the grouping style stacked.

Thanks,

[DmitryB · Accepted solution]

Hi,

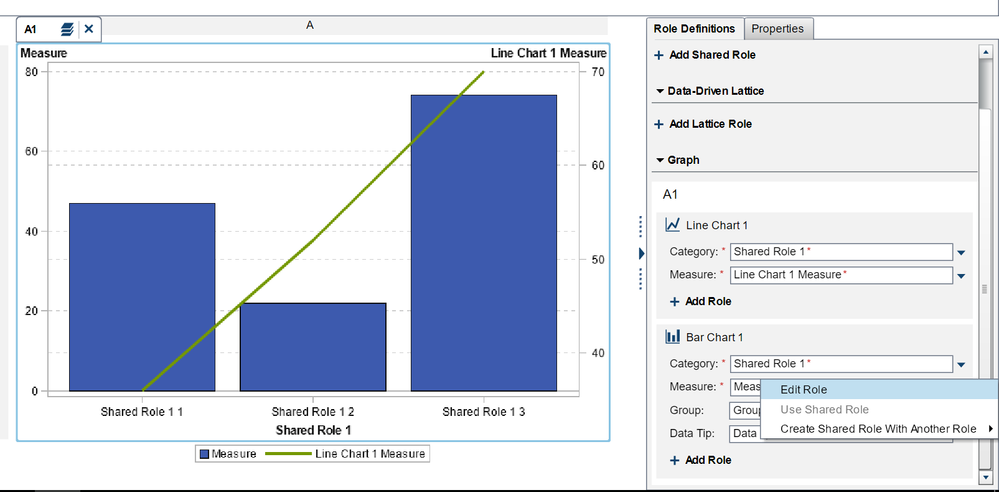

Yes, it is possible. Click "Edit Role" for the bar chart Measure in Graph Builder:

Check, that the "Allow multiple data assignments" option is selected in the appeared window:

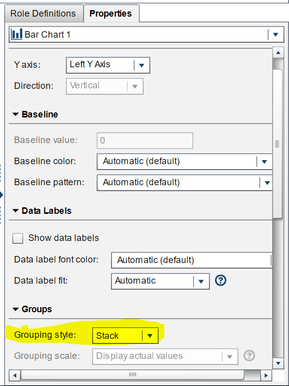

Then you would need to make sure that the Y axis and Grouping Style options are appropriate:

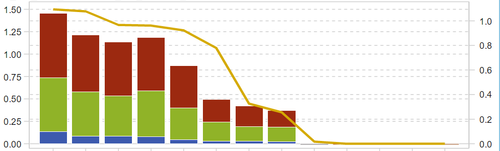

In Report Designer you will have the possibility to add several measures to the role, that corresponds to the bar chart measure.  Hopefully, the result is what you are looking for:

Dmitry

[mm84]

Perfect,it works.
Thanks
