put the histogram and distribution together

[Alexxxxxxx]

Hi all,

I use the following code to create a list of histograms and a distribution table

title 'The distribution of patent applied by companies in different industries';
proc sgpanel data=step7.Data_pat_matchresult93_21;
 panelby Division /
    uniscale=row;
 histogram sum_appln_hrm;
 density sum_appln_hrm;
 LABEL sum_appln_hrm='number of patents applied by the company';
run;

proc means data=step7.Data_pat_matchresult93_21;
	class Division;
	var sum_appln_hrm;
run;

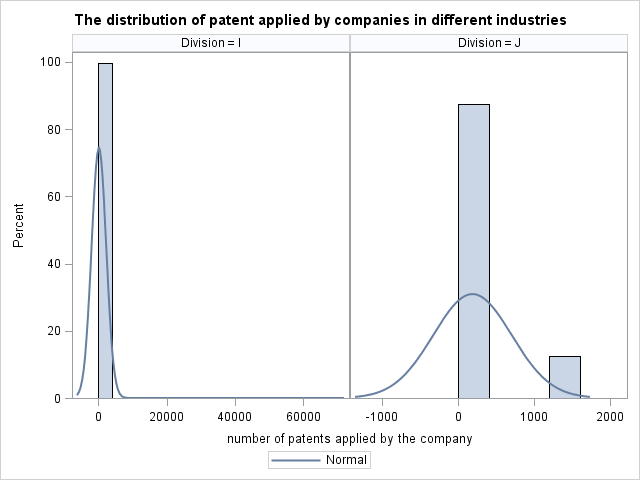

the following are two histograms,



and

Analysis Variable : sum_appln_hrmDivision N Obs N Mean Std Dev Minimum MaximumA 36B 261C 235D 8309E 480F 273G 145H 262I 1677J 8

36	20.9166667	50.3577913	1.0000000	264.0000000
261	20.8888889	56.8066822	1.0000000	542.0000000
235	28.7021277	91.0871460	1.0000000	1042.00
8309	206.9959081	1524.66	1.0000000	70641.00
480	66.8791667	336.3023201	1.0000000	4051.00
273	40.6483516	227.8560420	1.0000000	2909.00
145	14.9172414	66.6418186	1.0000000	754.0000000
262	26.7442748	128.8751492	1.0000000	1630.00
1677	133.6833631	2142.31	1.0000000	71910.00
8	186.1250000	515.9450241	1.0000000	1463.00

is there any method to put them together? I expect to put the 'N obs', 'N', 'Mean', 'Min' and 'Max' on the top right of each histogram.

Could you pelase give me some suggestions about this?

thanks in advance.

[Reeza]

Use an Inset.

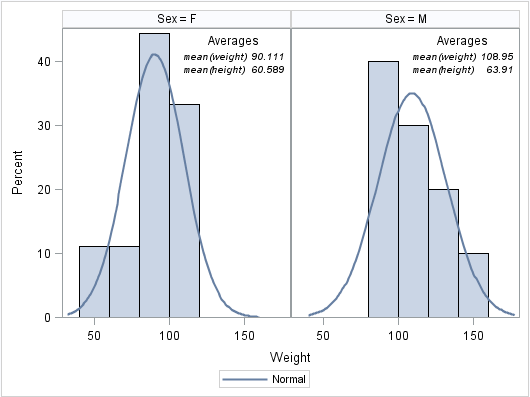

See the example here which generates this, you can customize it.

https://documentation.sas.com/?docsetId=grstatproc&docsetTarget=n19gxtzyuf79t3n16g5v26b73ckv.htm&doc...

---

@Alexxxxxxx wrote:

Hi all,

I use the following code to create a list of histograms and a distribution table

title 'The distribution of patent applied by companies in different industries';
proc sgpanel data=step7.Data_pat_matchresult93_21;
 panelby Division /
    uniscale=row;
 histogram sum_appln_hrm;
 density sum_appln_hrm;
 LABEL sum_appln_hrm='number of patents applied by the company';
run;

proc means data=step7.Data_pat_matchresult93_21;
	class Division;
	var sum_appln_hrm;
run;

the following are two histograms,



and

Analysis Variable : sum_appln_hrmDivision N Obs N Mean Std Dev Minimum MaximumA 36B 261C 235D 8309E 480F 273G 145H 262I 1677J 8

36	20.9166667	50.3577913	1.0000000	264.0000000
261	20.8888889	56.8066822	1.0000000	542.0000000
235	28.7021277	91.0871460	1.0000000	1042.00
8309	206.9959081	1524.66	1.0000000	70641.00
480	66.8791667	336.3023201	1.0000000	4051.00
273	40.6483516	227.8560420	1.0000000	2909.00
145	14.9172414	66.6418186	1.0000000	754.0000000
262	26.7442748	128.8751492	1.0000000	1630.00
1677	133.6833631	2142.31	1.0000000	71910.00
8	186.1250000	515.9450241	1.0000000	1463.00

is there any method to put them together? I expect to put the 'N obs', 'N', 'Mean', 'Min' and 'Max' on the top right of each histogram.

Could you pelase give me some suggestions about this?

thanks in advance.

---

[Alexxxxxxx]

Dear @Reeza ,

Thanks for your advice.

appreciate your link, I use the following code, which works well.

proc means data=step7.Data_pat_matchresult93_21 nway;
	class Division_description;
	var sum_appln_hrm;
	output out=Data_pat N(sum_appln_hrm)=N_obs
	mean(sum_appln_hrm)=Mean_appln Min(sum_appln_hrm)=Min_appln
	Max(sum_appln_hrm)=Max_appln;
run;

proc sort data=step7.Data_pat_matchresult93_21 out=Data_pat1;
  by Division_description;
run;

data merged;
  merge Data_pat Data_pat1;
  by Division_description;
  label N_obs = "N obs";
  label Mean_appln = "Mean";
  label Min_appln  = "Min";
  label Max_appln  = "Max";
run;
proc sgpanel data=merged;
  panelby Division_description /
    uniscale=row;
  histogram sum_appln_hrm;
  density sum_appln_hrm;
  inset N_obs Mean_appln Min_appln Max_appln/
      position=topright textattrs=(style=italic) ;
      label sum_appln_hrm='Number of applications';
run;

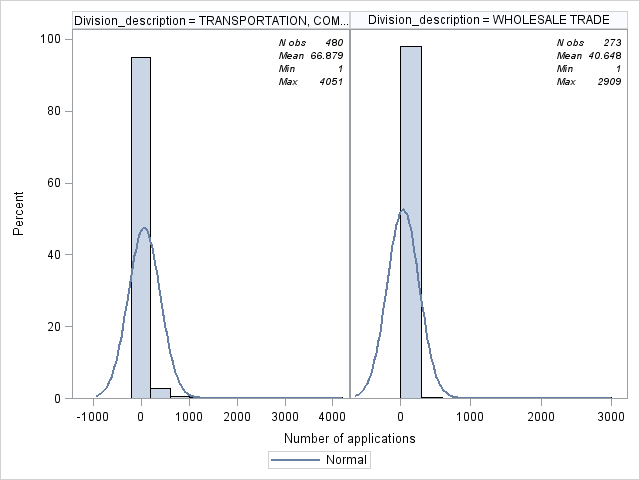

and get the result as below,



However, the title of each histogram cannot show the total strings. Could you please give me some suggestions about this?

for 'Division_description=WHOLESALE TRADE' I expect to only have 'WHOLESALE TRADE' for each division histogram

is that possible?

thanks in advance.

[Reeza · Accepted solution]

NOVARNAME on the PANELBY statement.
In general, check the docs for the statements used and look at the options to see if what you want exists. Since those titles are part of the BY group, I checked the PANELBY statement and found it has the NOVARNAME option (which I didn't know about before this).

https://documentation.sas.com/?docsetId=grstatproc&docsetTarget=n0wqazuv6959fnn1fask7mi68lla.htm&doc...
