tarheel13
Rhodochrosite | Level 12

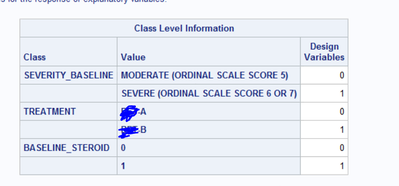

Can anyone explain the design variables to me? I want to use moderate severity_baseline as reference, treatment A as reference, and 0 or no steroid use as reference. If the design variables is 0, does that mean it's reference?

1 ACCEPTED SOLUTION

Accepted Solutions
FreelanceReinh
Jade | Level 19

Hello @tarheel13,



Your design variable values look like you're using what is called reference cell coding (see documentation of the CLASS statement and section "REFERENCE | REF" in "Other Parameterizations"). Then PROC LOGISTIC creates one design variable with values 0 and 1 for each of the three dichotomous CLASS variables and, yes, the reference level is that where the design variable is 0. By default, the procedure would use the last ordered level (formatted value) as the reference level, so I assume that you (correctly) specified ref=first or individual reference levels, e.g., baseline_steroid(ref='0') in your code. The parameter estimate will then refer to the other level, meaning that, e.g., for a patient with treatment ...B the corresponding estimate is added to the remaining terms in the linear function modeling the logit. Hence, if the estimate is positive, the modeled probability is increased (compared to the reference level, treatment ...A), everything else being the same.

View solution in original post

6 REPLIES 6
FreelanceReinh
Jade | Level 19

Hello @tarheel13,



Your design variable values look like you're using what is called reference cell coding (see documentation of the CLASS statement and section "REFERENCE | REF" in "Other Parameterizations"). Then PROC LOGISTIC creates one design variable with values 0 and 1 for each of the three dichotomous CLASS variables and, yes, the reference level is that where the design variable is 0. By default, the procedure would use the last ordered level (formatted value) as the reference level, so I assume that you (correctly) specified ref=first or individual reference levels, e.g., baseline_steroid(ref='0') in your code. The parameter estimate will then refer to the other level, meaning that, e.g., for a patient with treatment ...B the corresponding estimate is added to the remaining terms in the linear function modeling the logit. Hence, if the estimate is positive, the modeled probability is increased (compared to the reference level, treatment ...A), everything else being the same.

tarheel13
Rhodochrosite | Level 12

Thank you so much! I am newer to proc logistic. Yes, the values are 2 for moderate and 3 for severe in severity_baseline and I need moderate so I put ref=first as you said.




FreelanceReinh
Jade | Level 19

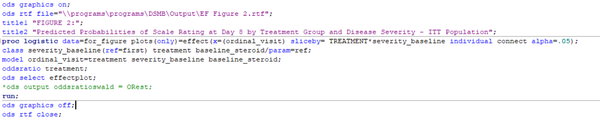

You're welcome. I think the output shown in your initial post doesn't match your code, though: The output indicates that ref=first was specified for all three CLASS variables (which can be done easily by putting ref=first to the end of the CLASS statement, i.e., after the slash), whereas your code specifies it for severity_baseline only (and leaves the default, ref=last, for the other two variables unchanged).

tarheel13
Rhodochrosite | Level 12

Yes, I actually left them alone because I don't know which drug is placebo and then in the specs I have, it did not say what ref to use for baseline steroid use. I just need the predicted probability plot from proc logistic. What is the best way to output that? I am trying to put it in an RTF and think I got it but it's still keeping "The Logistic Procedure" and I don't need that in there. I just need my title statements and the graph itself.




FreelanceReinh
Jade | Level 19

To suppress the unwanted "procedure title" just add

ods noproctitle;

before the PROC LOGISTIC step.

tarheel13
Rhodochrosite | Level 12
Thanks! I found that too after I already replied to this haha
