## correct graphics program

``````Data MCint;
seed1=12345;
do isim=1 to 100000;
Ux=ranuni(seed1);
Uy=ranuni(seed1);
Under = (Uy<=sqrt(1-Ux**2));
drop isim;
output;
end;

ODS OUTPUT OneWayFreqs=data_freq;
proc freq;
table Under;
run;
ODS OUTPUT CLOSE;

proc print data =data_freq;run;
data summary; set data_freq;
if under=1;
PI_est=4*Percent/100;
prop_est=Percent/100;
SE_PI_EST=4*sqrt(prop_est*(1-pop_est)/10000);
PI_CI_Low=PI_est-2*SE_PI_EST;
PI_CI_Up=PI_est-2*SE_PI_EST;
put ' ------------------------------------------';
put ' | MC Integration estimate of PI        |';
put ' ------------------------------------------';
put ' PI(estimate)=' PI_est;
put ' SE[PI(estimate)]=' SE_PI_EST;
put ' Approx. 95% CI=' PI_CI_Low' ,' PI_CI_Up;
put ' ' ;
put ' Based on 10,000 simulated points.' ;
put ' ------------------------------------------' ;
run;

ODS RTF file= ' C:\SAS-programs\MC-fig.rtf';
proc gplot data=MCint;
plot Uy*Ux=Under ;
ods graphics / reset width=50px height=300px;
symbol1 value=dot color=black;
symbol2 value=dot color=yellow;
run;
ODS RTF CLOSE;``````

I have few queestion.

First, why the lines after 'put' don't appear?

Secon, how should I control the graph size?  It seems that I can't perfectly graph square by chnging the width and height.

Finally, I want to mark the coordinate with cross rather than dot but I can't control it by rewriting cross.

1 ACCEPTED SOLUTION

Accepted Solutions
Opal | Level 21

## Re: correct graphics program

The data _null_ step still needs some tweaking, but it should be something like:

``````Data MCint;
call streaminit(12345);
do isim=1 to 10000;
Ux = rand("UNIFORM");
Uy = rand("UNIFORM");
Under = (Uy<=sqrt(1-Ux**2));
drop isim;
output;
end;
run;

ODS OUTPUT OneWayFreqs=data_freq;
proc freq;
table Under;
run;

proc print data =data_freq;run;

data _null_;
set data_freq;
if under=1;
PI_est=4*Percent/100;
prop_est=Percent/100;
SE_PI_EST=4*sqrt(prop_est*(1-pop_est)/10000);
PI_CI_Low=PI_est-2*SE_PI_EST;
PI_CI_Up=PI_est-2*SE_PI_EST;
file print;
put ' ------------------------------------------';
put ' | MC Integration estimate of PI          |';
put ' ------------------------------------------';
put ' PI(estimate)=' PI_est;
put ' SE[PI(estimate)]=' SE_PI_EST;
put ' Approx. 95% CI=' PI_CI_Low' ,' PI_CI_Up;
put ' ' ;
put ' Based on 10,000 simulated points.' ;
put ' ------------------------------------------' ;
run;

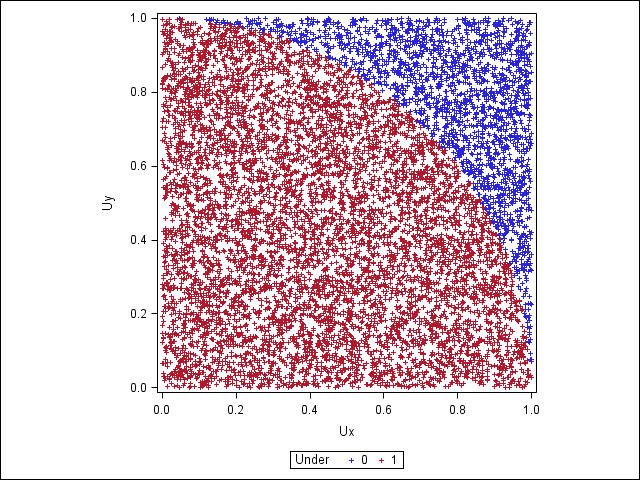

ods graphics / imagename="Circle" antialiasmax=11000;
proc sgplot data=MCint aspect=1;
scatter x=Ux y=Uy / group=Under markerattrs=(symbol=Plus size=5);
xaxis min=0 max=1;
yaxis min=0 max=1;
run;
``````

PG
5 REPLIES 5
Super User

## Re: correct graphics program

Couple of issues.

Don't include the ODS OUTPUT CLOSE statement. I'm not sure what you're expecting but it's unnecessary and can cause issues later on.

PUT outputs to the log, so check if the log has the information you're desiring. If that's not the functionality you want, clarify please.

SAS/Graph procs such as GPLOT Don't use ODS graphics options. And your ODS graphics options would have to be BEFORE the proc , order of operations issue.

I would recommend switching to SGPLOT for more functionality.

Place your ODS graphics statement before the proc. symbol statements work with GPlot but you need different statements for SGPLOT - see the docs.

If you need further help please post back.

Opal | Level 21

## Re: correct graphics program

The data _null_ step still needs some tweaking, but it should be something like:

``````Data MCint;
call streaminit(12345);
do isim=1 to 10000;
Ux = rand("UNIFORM");
Uy = rand("UNIFORM");
Under = (Uy<=sqrt(1-Ux**2));
drop isim;
output;
end;
run;

ODS OUTPUT OneWayFreqs=data_freq;
proc freq;
table Under;
run;

proc print data =data_freq;run;

data _null_;
set data_freq;
if under=1;
PI_est=4*Percent/100;
prop_est=Percent/100;
SE_PI_EST=4*sqrt(prop_est*(1-pop_est)/10000);
PI_CI_Low=PI_est-2*SE_PI_EST;
PI_CI_Up=PI_est-2*SE_PI_EST;
file print;
put ' ------------------------------------------';
put ' | MC Integration estimate of PI          |';
put ' ------------------------------------------';
put ' PI(estimate)=' PI_est;
put ' SE[PI(estimate)]=' SE_PI_EST;
put ' Approx. 95% CI=' PI_CI_Low' ,' PI_CI_Up;
put ' ' ;
put ' Based on 10,000 simulated points.' ;
put ' ------------------------------------------' ;
run;

ods graphics / imagename="Circle" antialiasmax=11000;
proc sgplot data=MCint aspect=1;
scatter x=Ux y=Uy / group=Under markerattrs=(symbol=Plus size=5);
xaxis min=0 max=1;
yaxis min=0 max=1;
run;
``````

PG
Obsidian | Level 7

## Re: correct graphics program

How can I change the color as the previous picture I made?

Opal | Level 21

## Re: correct graphics program

To change the color of markers, add the statement

styleattrs datacontrastcolors=(black yellow);

to proc sgplot.

PG
SAS Super FREQ

## Re: correct graphics program

You might be interested in reading the article "Monte Carlo estimates of pi."

BTW, you can use the OUT= option on the TABLES statement in PROC FREQ. Then you can suppress output by using the NOPRINT option on the PROC FREQ stmt. You don't need to use ODS output..
