Trying to Change Font to Times New Roman in SAS GTL LAYOUT OVERLAY

[DukeStats]

Hello SAS Users,

I am creating a Forest Plot for a project and have followed Sanjay's examples to do this. However, I am trying to change the font of the forest plot tick marks to Times New Roman so that the resulting figure looks consistent with the rest of the production work.

A snippet of the code I have so far is:

layout overlay / xaxisopts=(label=' ' type=linear linearopts=(tickvaluepriority=true tickvaluelist=(0.0 0.5 1.0 1.5 2.0 2.5 3.0)))
                 yaxisopts=(reverse=true display=none) walldisplay=none;
   highlowplot y=RECID low=RATIO_LCL high=RATIO_UCL;
   scatterplot y=RECID x=RATIO / markerattrs=(symbol=squarefilled) ;
   referenceline x=1;
endlayout;

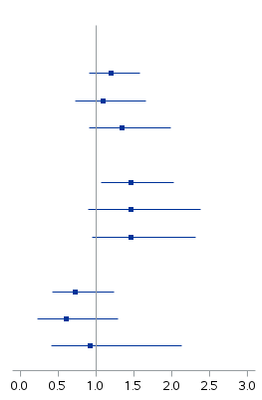

The plot looks like below (no numerical data shown).  I'm not sure what option will change the font family.  Any guidance is appreciated.

[ballardw]

The option TICKVALUEATTRS=(Family= "<name of font family goes here>") as part of the Linearopts should do it.

---

@DukeStats wrote:

Hello SAS Users,

I am creating a Forest Plot for a project and have followed Sanjay's examples to do this. However, I am trying to change the font of the forest plot tick marks to Times New Roman so that the resulting figure looks consistent with the rest of the production work.

A snippet of the code I have so far is:

layout overlay / xaxisopts=(label=' ' type=linear linearopts=(tickvaluepriority=true tickvaluelist=(0.0 0.5 1.0 1.5 2.0 2.5 3.0)))
                 yaxisopts=(reverse=true display=none) walldisplay=none;
   highlowplot y=RECID low=RATIO_LCL high=RATIO_UCL;
   scatterplot y=RECID x=RATIO / markerattrs=(symbol=squarefilled) ;
   referenceline x=1;
endlayout;

The plot looks like below (no numerical data shown).  I'm not sure what option will change the font family.  Any guidance is appreciated.

---

[DukeStats · Accepted solution]

Thank you @ballardw! The option TICKVALUEATTRS worked when I placed it within the XAXISOPTS.

[Ksharp]

proc template;
define style styles.garamond;
parent=styles.listing; /* Or your favorite style */

style graphfonts from graphfonts /
      'GraphDataFont' = ("TimesNewRoman, <MTsans-serif>",7pt)
      'GraphUnicodeFont' = ("<MTsans-serif-unicode>",9pt)
      'GraphValueFont' = ("TimesNewRoman, <MTsans-serif>",9pt)
      'GraphLabel2Font' = ("TimesNewRoman, <MTsans-serif>",10pt)
      'GraphLabelFont' = ("TimesNewRoman, <MTsans-serif>",10pt)
      'GraphFootnoteFont' = ("TimesNewRoman, <MTsans-serif>",10pt)
      'GraphTitleFont' = ("TimesNewRoman, <MTsans-serif>",11pt,bold)
      'GraphTitle1Font' = ("TimesNewRoman, <MTsans-serif>",14pt,bold)
      'GraphAnnoFont' = ("TimesNewRoman, <MTsans-serif>",10pt);
end;
run;

ods listing style=garamond;
ods html  style=garamond;

proc sgplot data=sashelp.class;
scatter x=weight y=height/group=sex datalabel=name;
run;
