quickbluefish
Barite | Level 11

Is there any way to get the band generated by the BAND statement to *smoothly* follow the line generated by SERIES when the SERIES statement is making use of the SMOOTHCONNECT option?  I have tried referencing the named line with the 'modelname' option in the BAND statement, but it seems to ignore that -- i.e., the band is still jagged while the line is smooth.  I realize that if I knew what algorithm was used by SMOOTHCONNECT, I could probably generate the upper and lower limits of the band manually, but I'm wondering if there's a simpler way?

The below code generates some test data and illustrates the issue.  Thanks for any help!

data test;
call streaminit(123456);
y=0;
pop=5000;
do x=1 to 50;
	y+rand('normal')*10;
	sd=500+rand('uniform')*250;
	l95=y-sd/sqrt(pop);
	u95=y+sd/sqrt(pop);
	output;
	pop+(-rand('integer',15,35));
end;
run;

proc sgplot data=test noautolegend;
series x=x y=y / smoothconnect name="line" lineattrs=(color=black thickness=2);
band x=x lower=l95 upper=u95 / modelname="line"
	fillattrs=(color=red) transparency=0.6;
run;

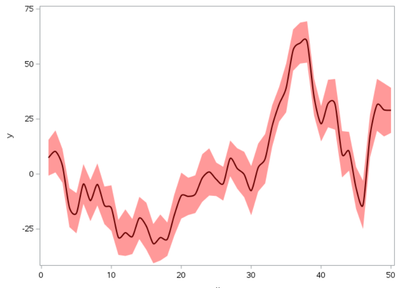

The result:




1 ACCEPTED SOLUTION

Accepted Solutions
Ksharp
Super User
data test;
call streaminit(123456);
y=0;
pop=5000;
do x=1 to 50;
	y+rand('normal')*10;
	sd=500+rand('uniform')*250;
	l95=y-sd/sqrt(pop);
	u95=y+sd/sqrt(pop);
	output;
	pop+(-rand('integer',15,35));
end;
run;



proc sql noprint;
select count(*) into :nobs from test;
select min(x),max(x) into :x_min, :x_max from test;
select x into :x separated by ',' from test;
select y into :mean separated by ',' from test;
select l95 into :l95 separated by ',' from test;
select u95 into :u95 separated by ',' from test;
quit;

data msplint;
do x=&x_min. to &x_max. by 0.1;
spline_mean=msplint(x, &nobs.,&x., &mean.);
spline_l95=msplint(x, &nobs.,&x., &l95.);
spline_u95=msplint(x, &nobs.,&x., &u95.);
output;
end;
run;

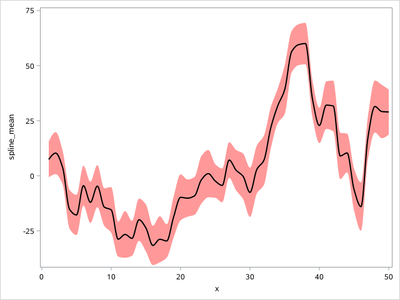

proc sgplot data=msplint noautolegend;
band x=x lower=spline_l95 upper=spline_u95/fillattrs=(color=red) transparency=0.6;
series x=x y=spline_mean / smoothconnect lineattrs=(color=black thickness=2);
run;





View solution in original post

3 REPLIES 3
quickbluefish
Barite | Level 11
Realize I forgot the '1.96' multiplier in generating the CIs, but same idea.
Ksharp
Super User
data test;
call streaminit(123456);
y=0;
pop=5000;
do x=1 to 50;
	y+rand('normal')*10;
	sd=500+rand('uniform')*250;
	l95=y-sd/sqrt(pop);
	u95=y+sd/sqrt(pop);
	output;
	pop+(-rand('integer',15,35));
end;
run;



proc sql noprint;
select count(*) into :nobs from test;
select min(x),max(x) into :x_min, :x_max from test;
select x into :x separated by ',' from test;
select y into :mean separated by ',' from test;
select l95 into :l95 separated by ',' from test;
select u95 into :u95 separated by ',' from test;
quit;

data msplint;
do x=&x_min. to &x_max. by 0.1;
spline_mean=msplint(x, &nobs.,&x., &mean.);
spline_l95=msplint(x, &nobs.,&x., &l95.);
spline_u95=msplint(x, &nobs.,&x., &u95.);
output;
end;
run;


proc sgplot data=msplint noautolegend;
band x=x lower=spline_l95 upper=spline_u95/fillattrs=(color=red) transparency=0.6;
series x=x y=spline_mean / smoothconnect lineattrs=(color=black thickness=2);
run;





quickbluefish
Barite | Level 11

Wow, very nice! Had never heard of the msplint function - thank you!
