Hello,
I have the following sample data pchg has both positive and negative values ranging from -100 to 1000. I wanted plot a spaghetti plot and to have legend as cohort and each cohort has unique color irrespective of number of subjects in it. I am using the following code but unable to do coloring by cohort, is there any option in series line group = id, cohort. or is there any other option plot by id but color code by cohort and legend to be cohort.
proc sgplot data=dta;
format visitc $visitfmt.;
series x=visitc y=pchg / group=id lineattrs=(pattern=solid thickness=1) break markers markerattrs=(symbol=circlefilled size=1.5);
xaxis type=discrete label='Visits' offsetmax=0.02 offsetmin=0.02;
yaxis label='Percent Change' ;
run;

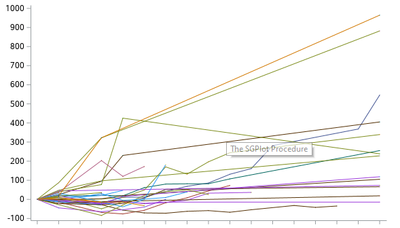

circlefilled option is not getting applied and hard to read this graph.
Use the GROUPLC= option to specify that the line colors should be set by using the COHORT variable instead of the ID variable:
proc sgplot data=dta;
*format visitc $visitfmt.;
series x=visitc y=pchg / group=id GROUPLC=COHORT
lineattrs=(pattern=solid thickness=1)
break markers markerattrs=(symbol=circlefilled size=2);
xaxis type=discrete label='Visits' offsetmax=0.02 offsetmin=0.02;
yaxis label='Percent Change' ;
keylegend / type=linecolor title="";
run;
You can also use the TYPE=LINECOLOR option on the KEYLEGEND statement to add a legend for the cohorts.
You'll probably want to control the colours manually in this case.
You can use a data attribute map to assign colours.
If you're not sure of what colours to use, I would suggest getting a set of 12 different colours from here and assign them as needed.
https://colorbrewer2.org/#type=qualitative&scheme=Paired&n=12
Use the GROUPLC= option to specify that the line colors should be set by using the COHORT variable instead of the ID variable:
proc sgplot data=dta;
*format visitc $visitfmt.;
series x=visitc y=pchg / group=id GROUPLC=COHORT
lineattrs=(pattern=solid thickness=1)
break markers markerattrs=(symbol=circlefilled size=2);
xaxis type=discrete label='Visits' offsetmax=0.02 offsetmin=0.02;
yaxis label='Percent Change' ;
keylegend / type=linecolor title="";
run;
You can also use the TYPE=LINECOLOR option on the KEYLEGEND statement to add a legend for the cohorts.
Thank you very much Rick. This is working but somehow circle filled is not populating in the figure. Do you have any suggestions please.
use SIZE=6 instead of SIZE=2.
Great, this is working great. Thank you so much Rick.
