SAS map for spatialreg

[Cruise]

I'm trying to run a demo below to create a matrix weight data to feed proc spatialreg model, in Paper 2481-2018
Creating a Spatial Weights Matrix for the SPATIALREG Procedure, Alan Ricardo da Silva.

However, I get below error:

 "237  %WMATRIX(map=columbus, id=code, lat=y, long=x, type=contiguity,
238  out=neighbor_columbus); run;
ERROR: File WORK.COLUMBUS.DATA does not exist."

 Do you know how to get hold of map data? My project is concerned with New York not Columbus

I suspect there must be SAS map library

that I have to specify to the macro? Could you please show me how to do it for New York?

Thanks for help.

%macro Wmatrix(map=,id=,lat=,long=,type=contiguity,centroid_lat=,
centroid_long=, distance=,neighbors=,out=neighbor);

%if %upcase(&type)=CONTIGUITY %then %do;
%if &neighbors = %then %do;
/********Defining the Neighborhood for contiguity ***********/
proc sort data=&map out=&map.2 nodupkey; by &long &lat &id;run;
data _hashmap_ (keep=&long &lat z &id);
retain z;
set &map.2(where=(&long NE . and &lat NE .));
by &long ⪫
if first.&long or first.&lat then z=1;
z=z+1;
run;
proc means data=_hashmap_ noprint;
output out=maxz max(z)=mz; run;
/*put the maximum value of z into macro variable maxnb*/
data _null_;
set maxz;
call symputx("maxnb",mz);
run;
%put &maxnb;
proc sort data=&map.2; by &id;run;
data nonb (keep=myid);
/*length &long &lat z 8; format &id 16.;*/
if _n_=1 then do;
/*this hash object holds a second copy of the entire map for comparison*/
declare hash fc(dataset: "_hashmap_");
fc.definekey("&long","&lat","z");
fc.definedata("&long","&lat","z","&id");
fc.definedone();
call missing (&long,&lat,z,&id);
/*this hash object will hold the rook neighbors for each area: they have two
points in common*/
declare hash rook();
rook.definekey("&id","myid");
rook.definedata("&id","myid");
rook.definedone();
end;
/*this hash object holds the bishop neighbors for each area: they have a
point
in common*/
declare hash bishop();
bishop.definekey("&id","myid");
bishop.definedata("&id","myid");
bishop.definedone();
foundnb="N";
do until (last.myid);
set &map.2 (keep=&id &long &lat rename=(&id=myid &long=myx &lat=myy)
where=(myx NE .
and myy NE .)) end=eof;
by myid;
do n=1 to &maxnb.; /*this is max number of points in common =max z*/
rc=fc.find(key:myx, key:myy, key:n);
if rc=0 and myid NE &id then do;
nbrc=rook.check(key:&id, key:myid);
if nbrc=0 then do;
rc2=rook.add(key:&id, key:myid, data:&id, data:myid);
foundnb="Y";
end;
else rc1=rook.add(key:&id, key:myid, data:&id, data:myid);
end;
end;*do &maxnb.;
end;*end DOW loop;
if foundnb="N" then output nonb;
if eof then rook.output(dataset:"&out");
run;
proc sort data=&out;by &id myid;run;
proc sort data=&out(keep=&id) nodupkey out=_tab_;by &id;run;
data _tab_;set _tab_;idi=_n_;run;
proc sort data=&out;by &id;run;
data _tab2_;merge &out _tab_;by &id;run;
proc sort data=_tab2_;by myid;run;
data _tab2_;merge _tab2_ _tab_(rename=(idi=idj &id=myid));by myid;run;
proc sort data=_tab2_;by &id;run;
proc sql;drop table _tab_,_hashmap_,Nonb,Maxz,&map.2;quit;
data Wmatrix_compact;set &out(rename=myid=c&id);
value=1;
run;
%end;
%else %do;
%if &centroid_lat= or &centroid_long= %then %do;
%annomac;
proc sort data=&map(keep=&id &lat &long rename=(&long=y &lat=x)) out=_↦by
&id;run;
%centroid(_&map,&out,&id);
proc sql;drop table _↦quit;
%end;
%else %do;
data &out;set &map(keep=&id &centroid_lat &centroid_long
rename=(&centroid_long=y &centroid_lat=x));run;
%end;
proc iml;
use &out;
read all var{x y} into COORD;
n=nrow(coord[,1]);
*print n;
d=j(1,3,0);
nome={"idi" "idj" "d"};
create _dist_ from d[colname=nome];
do i=1 to n;
do j=1 to n;
d[1]=i;
d[2]=j;
d[3]=sqrt((COORD[i,1]-COORD[j,1])**2+(COORD[i,2]-COORD[j,2])**2);
append from d;
end;
end;
close _dist_;
data &out;set &map(keep=&id &centroid_lat &centroid_long
rename=(&centroid_long=y &centroid_lat=x));run;
%end;
proc iml;
use &out;
read all var{x y} into COORD;
n=nrow(coord[,1]);
*print n;
d=j(1,3,0);
nome={"idi" "idj" "d"};
create _dist_ from d[colname=nome];
do i=1 to n;
do j=i+1 to n;
d[1]=i;
d[2]=j;
d[3]=sqrt((COORD[i,1]-COORD[j,1])**2+(COORD[i,2]-COORD[j,2])**2);
append from d;
end;
end;
close _dist_;
quit;
data &out;set _dist_;run;
proc sql;drop table _dist_;quit;
data Wmatrix_compact;
set &out(rename=(idi=&id idj=c&id)) &out(rename=(idi=c&id idj=&id));
%if &distance= %then %do;
value=1/d;
%end;
%else %do;
if d<=&distance then value=1;
if value=. then delete;
%end;
keep &id c&id value;
run;
proc sort data=Wmatrix_compact;by &id c&id;run;
/********creating W Matrix ***********/
proc iml;
use &out var{idi idj d};
read all;
n=max(idj);
w=j(n,n,0);
do h=1 to nrow(idi);
%if &distance= %then %do;
w[idi[h],idj[h]]=1/d[h];
w[idj[h],idi[h]]=1/d[h];
%end;
%else %do;
if d[h]<=&distance then do;
w[idi[h],idj[h]]=1;
w[idj[h],idi[h]]=1;
end;
%end;
end;
wpdr=j(n,n,0);
soma=j(n,1,0);
do i=1 to n;
do j=1 to n;
soma[i]=soma[i]+w[i,j];
end;
end;
do i=1 to n;
do j=1 to n;
if soma[i]=0 then wpdr[i,j]=0;
else wpdr[i,j]=w[i,j]/soma[i];
end;
end;
create Wmatrix from w;
append from w;
create Wmatrix_sdr from wpdr;
append from wpdr;
quit;
%end;
%mend Wmatrix;

/*crime data*/
data crimeoh;
  input crime income hvalue lat lon;
datalines;
18.802 21.232 44.567 35.62 42.38
32.388  4.477 33.200 36.50 40.52
38.426 11.337 37.125 36.71 38.71
 0.178  8.438 75.000 33.36 38.41
15.726 19.531 80.467 38.80 44.07
30.627 15.956 26.350 39.82 41.18
50.732 11.252 23.225 40.01 38.00
26.067 16.029 28.750 43.75 39.28
48.585  9.873 18.000 39.61 34.91
34.001 13.598 96.400 47.61 36.42
36.869  9.798 41.750 48.58 34.46
20.049 21.155 47.733 49.61 32.65
19.146 18.942 40.300 50.11 29.91
18.905 22.207 42.100 51.24 27.80
27.823 18.950 42.500 50.89 25.24
16.241 29.833 61.950 48.44 27.93
 0.224 31.070 81.267 46.73 31.91
30.516 17.586 52.600 43.44 35.92
33.705 11.709 30.450 43.37 33.46
40.970  8.085 20.300 41.13 33.14
52.794 10.822 34.100 43.95 31.61
41.968  9.918 23.600 44.10 30.40
39.175 12.814 27.000 43.70 29.18
53.711 11.107 22.700 41.04 28.78
25.962 16.961 33.500 43.23 27.31
22.541 18.796 35.800 42.67 24.96
26.645 11.813 26.800 41.21 25.90
29.028 14.135 27.733 39.32 25.85
36.664 13.380 25.700 41.09 27.49
42.445 17.017 43.300 38.32 28.82
56.920  7.856 22.850 41.31 30.90
61.299  8.461 17.900 39.36 32.88
60.750  8.681 32.500 39.72 30.64
68.892 13.906 22.500 38.29 30.35
38.298 14.236 53.200 36.60 32.09
54.839  7.625 18.800 37.60 34.08
56.706 10.048 19.900 37.13 36.12
62.275  7.467 19.700 37.85 36.30
46.716  9.549 41.700 35.95 36.40
57.066  9.963 42.900 35.72 35.60
54.522 11.618 30.600 35.76 34.66
43.962 13.185 60.000 36.15 33.92
40.074 10.655 19.975 34.08 30.42
23.974 14.948 28.450 30.32 28.26
17.677 16.940 31.800 27.94 29.85
14.306 18.739 36.300 27.27 28.21
19.101 18.477 39.600 24.25 26.69
16.531 18.324 76.100 25.47 25.71
16.492 25.873 44.333 29.02 26.58
;

%WMATRIX(map=columbus, id=code, lat=y, long=x, type=contiguity,
out=neighbor_columbus); run;

[Reeza · Accepted solution]

A full installation of SAS has the SASmaps and mapsgsfk libraries with the data sets. SAS UE does not because those are included with SAS\GRAPH. From the macro definition and paper it doesn't seem like it uses those though, you get to provide the data and it needs latitude, longitude, an ID variable, centroid latitude/longitude. If you check Open Data portal, for New York you can get the map files. Download the non-geospatial type as a CSV usually at the bottom of the options listed, like here:
https://data.cityofnewyork.us/Housing-Development/NYCHA-PSA-Police-Service-Areas-/72wx-vdjr

[Cruise]

Hi @Reeza, would you please take a look at code below ? why I get error even though I have a dataset with centroids now.

Error I get:

ERROR: Variable X not found.
ERROR: Variable Y not found.
ERROR: Variable CODE not found.

From below code:

proc import datafile="\ ...\centroid\2017_ny_centroid.txt"
out=map1
dbms=tab replace;
getnames=yes;
run;

data columbus;
set map1(rename=(GEOID=id INTPTLAT=centroid_lat INTPTLONG=centroid_long));
run;

%macro Wmatrix(map=,id=,lat=,long=,type=contiguity,centroid_lat=,
centroid_long=, distance=,neighbors=,out=neighbor);

...hashtag macro here...

%WMATRIX(map=columbus, id=code, lat=y, long=x, type=contiguity,
out=neighbor_columbus); run;

[Reeza]

Full log please.

I see your centroids, but not xy. If you upload the csv I’ll try and run it a bit later.

If you copied and pasted the macro from the PDF make sure there’s no weird characters in there as well.

[Cruise]

@Reeza

Thanks a lot!

Below is a full log. To avoid strange characters from pdf I copied codes one page at a time to avoid characters from the parts where pages end and start in pdf document. Attached is newyork csv. I think, x and y are created from centroid_lat and centroid_long in the map dataset in the macro. See below.

data &out;set &map(keep=&id &centroid_lat &centroid_long
rename=(&centroid_long=y &centroid_lat=x));run;

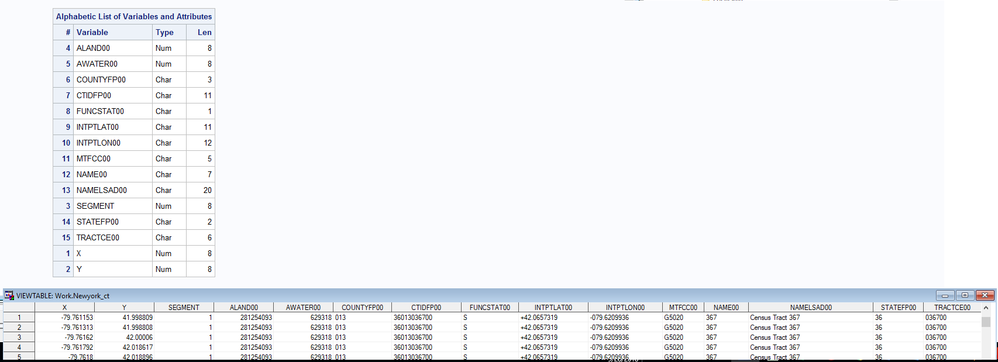

For your convenience, proc import for new york csv is following.

proc import datafile="...\newyork.csv"
out=newyork
dbms=csv replace;
getnames=yes;
run;

1270
1271  %macro Wmatrix(map=,id=,lat=,long=,type=contiguity,centroid_lat=,
1272  centroid_long=, distance=,neighbors=,out=neighbor);
1273
1274  %if %upcase(&type)=CONTIGUITY %then %do;
1275  %if &neighbors = %then %do;
1276  /********Defining the Neighborhood for contiguity ***********/
1277  proc sort data=&map out=&map.2 nodupkey; by &long &lat &id;run;
1278  data _hashmap_ (keep=&long &lat z &id);
1279  retain z;
1280  set &map.2(where=(&long NE . and &lat NE .));
1281  by &long ⪫
1282  if first.&long or first.&lat then z=1;
1283  z=z+1;
1284  run;
1285  proc means data=_hashmap_ noprint;
1286  output out=maxz max(z)=mz; run;
1287  /*put the maximum value of z into macro variable maxnb*/
1288  data _null_;
1289  set maxz;
1290  call symputx("maxnb",mz);
1291  run;
1292  %put &maxnb;
1293  proc sort data=&map.2; by &id;run;
1294  data nonb (keep=myid);
1295  /*length &long &lat z 8; format &id 16.;*/
1296  if _n_=1 then do;
1297  /*this hash object holds a second copy of the entire map for comparison*/
1298  declare hash fc(dataset: "_hashmap_");
1299  fc.definekey("&long","&lat","z");
1300  fc.definedata("&long","&lat","z","&id");
1301  fc.definedone();
1302  call missing (&long,&lat,z,&id);
1303  /*this hash object will hold the rook neighbors for each area: they have two
1304  points in common*/
1305  declare hash rook();
1306  rook.definekey("&id","myid");
1307  rook.definedata("&id","myid");
1308  rook.definedone();
1309  end;
1310  /*this hash object holds the bishop neighbors for each area: they have a
1311  point
1312  in common*/
1313  declare hash bishop();
1314  bishop.definekey("&id","myid");
1315  bishop.definedata("&id","myid");
1316  bishop.definedone();
1317  foundnb="N";
1318  do until (last.myid);
1319  set &map.2 (keep=&id &long &lat rename=(&id=myid &long=myx &lat=myy)
1320  where=(myx NE .
1321  and myy NE .)) end=eof;
1322  by myid;
1323  do n=1 to &maxnb.; /*this is max number of points in common =max z*/
1324  rc=fc.find(key:myx, key:myy, key:n);
1325  if rc=0 and myid NE &id then do;
1326  nbrc=rook.check(key:&id, key:myid);
1327  if nbrc=0 then do;
1328  rc2=rook.add(key:&id, key:myid, data:&id, data:myid);
1329  foundnb="Y";
1330  end;
1331  else rc1=rook.add(key:&id, key:myid, data:&id, data:myid);
1332  end;
1333  end;*do &maxnb.;
1334  end;*end DOW loop;
1335  if foundnb="N" then output nonb;
1336  if eof then rook.output(dataset:"&out");
1337  run;
1338  proc sort data=&out;by &id myid;run;
1339  proc sort data=&out(keep=&id) nodupkey out=_tab_;by &id;run;
1340  data _tab_;set _tab_;idi=_n_;run;
1341  proc sort data=&out;by &id;run;
1342  data _tab2_;merge &out _tab_;by &id;run;
1343  proc sort data=_tab2_;by myid;run;
1344  data _tab2_;merge _tab2_ _tab_(rename=(idi=idj &id=myid));by myid;run;
1345  proc sort data=_tab2_;by &id;run;
1346  proc sql;drop table _tab_,_hashmap_,Nonb,Maxz,&map.2;quit;
1347  data Wmatrix_compact;set &out(rename=myid=c&id);
1348  value=1;
1349  run;
1350  %end;
1351  %else %do;
1352  %if &centroid_lat= or &centroid_long= %then %do;
1353  %annomac;
1354  proc sort data=&map(keep=&id &lat &long rename=(&long=y &lat=x)) out=_↦by
1355  &id;run;
1356  %centroid(_&map,&out,&id);
1357  proc sql;drop table _↦quit;
1358  %end;
1359  %else %do;
1360  data &out;set &map(keep=&id &centroid_lat &centroid_long
1361  rename=(&centroid_long=y &centroid_lat=x));run;
1362  %end;
1363  proc iml;
1364  use &out;
1365  read all var{x y} into COORD;
1366  n=nrow(coord[,1]);
1367  *print n;
1368  d=j(1,3,0);
1369  nome={"idi" "idj" "d"};
1370  create _dist_ from d[colname=nome];
1371  do i=1 to n;
1372  do j=1 to n;
1373  d[1]=i;
1374  d[2]=j;
1375  d[3]=sqrt((COORD[i,1]-COORD[j,1])**2+(COORD[i,2]-COORD[j,2])**2);
1376  append from d;
1377  end;
1378  end;
1379  close _dist_;
1380  data &out;set &map(keep=&id &centroid_lat &centroid_long
1381  rename=(&centroid_long=y &centroid_lat=x));run;
1382  %end;
1383  proc iml;
1384  use &out;
1385  read all var{x y} into COORD;
1386  n=nrow(coord[,1]);
1387  *print n;
1388  d=j(1,3,0);
1389  nome={"idi" "idj" "d"};
1390  create _dist_ from d[colname=nome];
1391  do i=1 to n;
1392  do j=i+1 to n;
1393  d[1]=i;
1394  d[2]=j;
1395  d[3]=sqrt((COORD[i,1]-COORD[j,1])**2+(COORD[i,2]-COORD[j,2])**2);
1396  append from d;
1397  end;
1398  end;
1399  close _dist_;
1400  quit;
1401  data &out;set _dist_;run;
1402  proc sql;drop table _dist_;quit;
1403  data Wmatrix_compact;
1404  set &out(rename=(idi=&id idj=c&id)) &out(rename=(idi=c&id idj=&id));
1405  %if &distance= %then %do;
1406  value=1/d;
1407  %end;
1408  %else %do;
1409  if d<=&distance then value=1;
1410  if value=. then delete;
1411  %end;
1412  keep &id c&id value;
1413  run;
1414  proc sort data=Wmatrix_compact;by &id c&id;run;
1415  /********creating W Matrix ***********/
1416  proc iml;
1417  use &out var{idi idj d};
1418  read all;
1419  n=max(idj);
1420  w=j(n,n,0);
1421  do h=1 to nrow(idi);
1422  %if &distance= %then %do;
1423  w[idi[h],idj[h]]=1/d[h];
1424  w[idj[h],idi[h]]=1/d[h];
1425  %end;
1426  %else %do;
1427  if d[h]<=&distance then do;
1428  w[idi[h],idj[h]]=1;
1429  w[idj[h],idi[h]]=1;
1430  end;
1431  %end;
1432  end;
1433  wpdr=j(n,n,0);
1434  soma=j(n,1,0);
1435  do i=1 to n;
1436  do j=1 to n;
1437  soma[i]=soma[i]+w[i,j];
1438  end;
1439  end;
1440  do i=1 to n;
1441  do j=1 to n;
1442  if soma[i]=0 then wpdr[i,j]=0;
1443  else wpdr[i,j]=w[i,j]/soma[i];
1444  end;
1445  end;
1446  create Wmatrix from w;
1447  append from w;
1448  create Wmatrix_sdr from wpdr;
1449  append from wpdr;
1450  quit;
1451  %end;
1452  %mend Wmatrix;

1453  %WMATRIX(map=newyork, id=code, lat=y, long=x, type=contiguity,
1454  out=neighbor_columbus); run;
ERROR: Variable X not found.
ERROR: Variable Y not found.
ERROR: Variable CODE not found.

NOTE: The SAS System stopped processing this step because of errors.
WARNING: The data set WORK.NEWYORK2 may be incomplete.  When this step was stopped there were 0
         observations and 0 variables.
WARNING: Data set WORK.NEWYORK2 was not replaced because this step was stopped.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.03 seconds
      cpu time            0.00 seconds


ERROR: Variable x is not on file WORK.NEWYORK2.

WARNING: The variable x in the DROP, KEEP, or RENAME list has never been referenced.
WARNING: The variable y in the DROP, KEEP, or RENAME list has never been referenced.
WARNING: The variable code in the DROP, KEEP, or RENAME list has never been referenced.
NOTE: The SAS System stopped processing this step because of errors.
WARNING: The data set WORK._HASHMAP_ may be incomplete.  When this step was stopped there were 0
         observations and 1 variables.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: No observations in data set WORK._HASHMAP_.
NOTE: The data set WORK.MAXZ has 0 observations and 3 variables.
NOTE: PROCEDURE MEANS used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds



NOTE: There were 0 observations read from the data set WORK.MAXZ.
NOTE: DATA statement used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds


WARNING: Apparent symbolic reference MAXNB not resolved.
&maxnb
ERROR: Variable CODE not found.

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: Line generated by the invoked macro "WMATRIX".
6      (keep=&id &long &lat rename=(&id=myid &long=myx &lat=myy) where=(myx NE . and myy NE .))
6   ! end=eof; by myid; do n=1 to &maxnb.;  rc=fc.find(key:myx, key:myy, key:n); if rc=0 and myid
                                  -
                                  386
6   ! NE &id then do; nbrc=rook.check(key:&id, key:myid); if nbrc=0 then do;
ERROR 386-185: Expecting an arithmetic expression.

NOTE: Line generated by the invoked macro "WMATRIX".
6      (keep=&id &long &lat rename=(&id=myid &long=myx &lat=myy) where=(myx NE . and myy NE .))
6   ! end=eof; by myid; do n=1 to &maxnb.;  rc=fc.find(key:myx, key:myy, key:n); if rc=0 and myid
                                  -
                                  200
6   ! NE &id then do; nbrc=rook.check(key:&id, key:myid); if nbrc=0 then do;
ERROR 200-322: The symbol is not recognized and will be ignored.

ERROR: Variable code is not on file WORK.NEWYORK2.
ERROR: Variable x is not on file WORK.NEWYORK2.
ERROR: Variable y is not on file WORK.NEWYORK2.
ERROR: Invalid DROP, KEEP, or RENAME option on file WORK.NEWYORK2.
WARNING: Apparent symbolic reference MAXNB not resolved.
ERROR: DATA STEP Component Object failure.  Aborted during the COMPILATION phase.
NOTE: The SAS System stopped processing this step because of errors.
NOTE: DATA statement used (Total process time):
      real time           0.02 seconds
      cpu time            0.01 seconds



ERROR: Variable CODE not found.
ERROR: Variable MYID not found.

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds



ERROR: The variable code in the DROP, KEEP, or RENAME list has never been referenced.

NOTE: The SAS System stopped processing this step because of errors.
WARNING: The data set WORK._TAB_ may be incomplete.  When this step was stopped there were 0
         observations and 0 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.04 seconds
      cpu time            0.00 seconds


NOTE: There were 0 observations read from the data set WORK._TAB_.
NOTE: The data set WORK._TAB_ has 0 observations and 1 variables.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds


ERROR: Variable CODE not found.

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



ERROR: BY variable code is not on input data set WORK.NEIGHBOR_COLUMBUS.
ERROR: BY variable code is not on input data set WORK._TAB_.
NOTE: The SAS System stopped processing this step because of errors.
WARNING: The data set WORK._TAB2_ may be incomplete.  When this step was stopped there were 0
         observations and 3 variables.
WARNING: Data set WORK._TAB2_ was not replaced because this step was stopped.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds


ERROR: Variable MYID not found.

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



ERROR: Variable code is not on file WORK._TAB_.
ERROR: Invalid DROP, KEEP, or RENAME option on file WORK._TAB_.

NOTE: The SAS System stopped processing this step because of errors.
WARNING: The data set WORK._TAB2_ may be incomplete.  When this step was stopped there were 0
         observations and 1 variables.
WARNING: Data set WORK._TAB2_ was not replaced because this step was stopped.
NOTE: DATA statement used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds


ERROR: Variable CODE not found.

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds


NOTE: Table WORK._TAB_ has been dropped.
NOTE: Table WORK._HASHMAP_ has been dropped.
WARNING: File WORK.NONB.DATA does not exist.
WARNING: Table WORK.NONB has not been dropped.
NOTE: Table WORK.MAXZ has been dropped.
NOTE: Table WORK.NEWYORK2 has been dropped.
NOTE: PROCEDURE SQL used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds


ERROR: Variable myid is not on file WORK.NEIGHBOR_COLUMBUS.
ERROR: Invalid DROP, KEEP, or RENAME option on file WORK.NEIGHBOR_COLUMBUS.

NOTE: The SAS System stopped processing this step because of errors.
WARNING: The data set WORK.WMATRIX_COMPACT may be incomplete.  When this step was stopped there
         were 0 observations and 1 variables.
WARNING: Data set WORK.WMATRIX_COMPACT was not replaced because this step was stopped.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds


NOTE: IML Ready
WARNING: Data set WORK.NEIGHBOR_COLUMBUS is empty.

 statement : USE at line 2094 column 12
WARNING: End of File reached.

 statement : READ at line 2094 column 22
ERROR: (execution) Matrix has not been set to a value.

 operation : [ at line 2094 column 64
 operands  : coord, , *LIT1002

COORD      0 row       0 col     (type ?, size 0)


*LIT1002      1 row       1 col     (numeric)

         1

 statement : ASSIGN at line 2094 column 52
ERROR: DO expression not given value.

 statement : DO at line 2094 column 153
NOTE: The data set WORK._DIST_ has 0 observations and 3 variables.
NOTE: Exiting IML.
NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE IML used (Total process time):
      real time           0.15 seconds
      cpu time            0.01 seconds




NOTE: There were 0 observations read from the data set WORK._DIST_.
NOTE: The data set WORK.NEIGHBOR_COLUMBUS has 0 observations and 3 variables.
NOTE: DATA statement used (Total process time):
      real time           0.02 seconds
      cpu time            0.01 seconds


NOTE: Table WORK._DIST_ has been dropped.
NOTE: PROCEDURE SQL used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds



NOTE: There were 0 observations read from the data set WORK.NEIGHBOR_COLUMBUS.
NOTE: There were 0 observations read from the data set WORK.NEIGHBOR_COLUMBUS.
NOTE: The data set WORK.WMATRIX_COMPACT has 0 observations and 3 variables.
NOTE: DATA statement used (Total process time):
      real time           0.04 seconds
      cpu time            0.00 seconds



NOTE: Input data set is empty.
NOTE: The data set WORK.WMATRIX_COMPACT has 0 observations and 3 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.01 seconds
      cpu time            0.00 seconds


NOTE: IML Ready
WARNING: Data set WORK.NEIGHBOR_COLUMBUS is empty.

 statement : USE at line 2107 column 87
WARNING: End of File reached.

 statement : READ at line 2107 column 112
ERROR: (execution) Matrix has not been set to a value.

 operation : MAX at line 2107 column 127
 operands  : idj

idj      0 row       0 col     (numeric)


 statement : ASSIGN at line 2107 column 122
ERROR: (execution) Matrix has not been set to a value.

 operation : J at line 2107 column 137
 operands  : n, n, *LIT1002

n      0 row       0 col     (type ?, size 0)


n      0 row       0 col     (type ?, size 0)


*LIT1002      1 row       1 col     (numeric)

         0

 statement : ASSIGN at line 2107 column 134
ERROR: (execution) Matrix has not been set to a value.

 operation : J at line 2117 column 13
 operands  : n, n, *LIT1006

n      0 row       0 col     (type ?, size 0)


n      0 row       0 col     (type ?, size 0)


*LIT1006      1 row       1 col     (numeric)

         0

 statement : ASSIGN at line 2117 column 7
ERROR: (execution) Matrix has not been set to a value.

 operation : J at line 2117 column 28
 operands  : n, *LIT1007, *LIT1008

n      0 row       0 col     (type ?, size 0)


*LIT1007      1 row       1 col     (numeric)

         1

*LIT1008      1 row       1 col     (numeric)

         0

 statement : ASSIGN at line 2117 column 22
ERROR: DO expression not given value.

 statement : DO at line 2117 column 37
ERROR: DO expression not given value.

 statement : DO at line 2117 column 97
ERROR: Matrix w has not been set to a value.

 statement : CREATE at line 2117 column 195
ERROR: No data set is currently open for output.

 statement : APPEND at line 2117 column 218
ERROR: Matrix wpdr has not been set to a value.

 statement : CREATE at line 2117 column 233
ERROR: No data set is currently open for output.

 statement : APPEND at line 2118 column 8
NOTE: Exiting IML.
NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE IML used (Total process time):
      real time           0.03 seconds
      cpu time            0.03 seconds

[Reeza]

Were you able to get it solved?

I tried with both the sample data and got more errors and with your data and got more errors as well so I'm questioning if the macro is up to date. I would suggest contacting the authors at this point and ask if they can give you the demo code that works and then you can align your data to that.

The following does generate a weight data set, I have no idea if it's correct or not though and there are errors in the code.

proc import out=NY datafile='/folders/myfolders/newyork.csv'
 dbms=csv replace;
 guessingrows=max;
 run;

%Wmatrix(map=NY,id=id,lat=centroid_lat,long=centroid_long,out=neighbor);

[Cruise]

@Reeza

Your code outputs datasets:  neighbor Wmatrix_compact _tab2_ but all empty. It's great that you were able at least to produce a dataset. Do you mind to share your resulting matrix data in csv? or any idea what I'm doing differently from you?

1913
1914  %macro Wmatrix(map=,id=,lat=,long=,type=contiguity,centroid_lat=,
1915  centroid_long=, distance=,neighbors=,out=neighbor);
1916
1917  %if %upcase(&type)=CONTIGUITY %then %do;
1918  %if &neighbors = %then %do;
1919  /********Defining the Neighborhood for contiguity ***********/
1920  proc sort data=&map out=&map.2 nodupkey; by &long &lat &id;run;
1921  data _hashmap_ (keep=&long &lat z &id);
1922  retain z;
1923  set &map.2(where=(&long NE . and &lat NE .));
1924  by &long ⪫
1925  if first.&long or first.&lat then z=1;
1926  z=z+1;
1927  run;
1928  proc means data=_hashmap_ noprint;
1929  output out=maxz max(z)=mz; run;
1930  /*put the maximum value of z into macro variable maxnb*/
1931  data _null_;
1932  set maxz;
1933  call symputx("maxnb",mz);
1934  run;
1935  %put &maxnb;
1936  proc sort data=&map.2; by &id;run;
1937  data nonb (keep=myid);
1938  /*length &long &lat z 8; format &id 16.;*/
1939  if _n_=1 then do;
1940  /*this hash object holds a second copy of the entire map for comparison*/
1941  declare hash fc(dataset: "_hashmap_");
1942  fc.definekey("&long","&lat","z");
1943  fc.definedata("&long","&lat","z","&id");
1944  fc.definedone();
1945  call missing (&long,&lat,z,&id);
1946  /*this hash object will hold the rook neighbors for each area: they have two
1947  points in common*/
1948  declare hash rook();
1949  rook.definekey("&id","myid");
1950  rook.definedata("&id","myid");
1951  rook.definedone();
1952  end;
1953  /*this hash object holds the bishop neighbors for each area: they have a
1954  point
1955  in common*/
1956  declare hash bishop();
1957  bishop.definekey("&id","myid");
1958  bishop.definedata("&id","myid");
1959  bishop.definedone();
1960  foundnb="N";
1961  do until (last.myid);
1962  set &map.2 (keep=&id &long &lat rename=(&id=myid &long=myx &lat=myy)
1963  where=(myx NE .
1964  and myy NE .)) end=eof;
1965  by myid;
1966  do n=1 to &maxnb.; /*this is max number of points in common =max z*/
1967  rc=fc.find(key:myx, key:myy, key:n);
1968  if rc=0 and myid NE &id then do;
1969  nbrc=rook.check(key:&id, key:myid);
1970  if nbrc=0 then do;
1971  rc2=rook.add(key:&id, key:myid, data:&id, data:myid);
1972  foundnb="Y";
1973  end;
1974  else rc1=rook.add(key:&id, key:myid, data:&id, data:myid);
1975  end;
1976  end;*do &maxnb.;
1977  end;*end DOW loop;
1978  if foundnb="N" then output nonb;
1979  if eof then rook.output(dataset:"&out");
1980  run;
1981  proc sort data=&out;by &id myid;run;
1982  proc sort data=&out(keep=&id) nodupkey out=_tab_;by &id;run;
1983  data _tab_;set _tab_;idi=_n_;run;
1984  proc sort data=&out;by &id;run;
1985  data _tab2_;merge &out _tab_;by &id;run;
1986  proc sort data=_tab2_;by myid;run;
1987  data _tab2_;merge _tab2_ _tab_(rename=(idi=idj &id=myid));by myid;run;
1988  proc sort data=_tab2_;by &id;run;
1989  proc sql;drop table _tab_,_hashmap_,Nonb,Maxz,&map.2;quit;
1990  data Wmatrix_compact;set &out(rename=myid=c&id);
1991  value=1;
1992  run;
1993  %end;
1994  %else %do;
1995  %if &centroid_lat= or &centroid_long= %then %do;
1996  %annomac;
1997  proc sort data=&map(keep=&id &lat &long rename=(&long=y &lat=x)) out=_↦by
1998  &id;run;
1999  %centroid(_&map,&out,&id);
2000  proc sql;drop table _↦quit;
2001  %end;
2002  %else %do;
2003  data &out;set &map(keep=&id &centroid_lat &centroid_long
2004  rename=(&centroid_long=y &centroid_lat=x));run;
2005  %end;
2006  proc iml;
2007  use &out;
2008  read all var{x y} into COORD;
2009  n=nrow(coord[,1]);
2010  *print n;
2011  d=j(1,3,0);
2012  nome={"idi" "idj" "d"};
2013  create _dist_ from d[colname=nome];
2014  do i=1 to n;
2015  do j=1 to n;
2016  d[1]=i;
2017  d[2]=j;
2018  d[3]=sqrt((COORD[i,1]-COORD[j,1])**2+(COORD[i,2]-COORD[j,2])**2);
2019  append from d;
2020  end;
2021  end;
2022  close _dist_;
2023  data &out;set &map(keep=&id &centroid_lat &centroid_long
2024  rename=(&centroid_long=y &centroid_lat=x));run;
2025  %end;
2026  proc iml;
2027  use &out;
2028  read all var{x y} into COORD;
2029  n=nrow(coord[,1]);
2030  *print n;
2031  d=j(1,3,0);
2032  nome={"idi" "idj" "d"};
2033  create _dist_ from d[colname=nome];
2034  do i=1 to n;
2035  do j=i+1 to n;
2036  d[1]=i;
2037  d[2]=j;
2038  d[3]=sqrt((COORD[i,1]-COORD[j,1])**2+(COORD[i,2]-COORD[j,2])**2);
2039  append from d;
2040  end;
2041  end;
2042  close _dist_;
2043  quit;
2044  data &out;set _dist_;run;
2045  proc sql;drop table _dist_;quit;
2046  data Wmatrix_compact;
2047  set &out(rename=(idi=&id idj=c&id)) &out(rename=(idi=c&id idj=&id));
2048  %if &distance= %then %do;
2049  value=1/d;
2050  %end;
2051  %else %do;
2052  if d<=&distance then value=1;
2053  if value=. then delete;
2054  %end;
2055  keep &id c&id value;
2056  run;
2057  proc sort data=Wmatrix_compact;by &id c&id;run;
2058  /********creating W Matrix ***********/
2059  proc iml;
2060  use &out var{idi idj d};
2061  read all;
2062  n=max(idj);
2063  w=j(n,n,0);
2064  do h=1 to nrow(idi);
2065  %if &distance= %then %do;
2066  w[idi[h],idj[h]]=1/d[h];
2067  w[idj[h],idi[h]]=1/d[h];
2068  %end;
2069  %else %do;
2070  if d[h]<=&distance then do;
2071  w[idi[h],idj[h]]=1;
2072  w[idj[h],idi[h]]=1;
2073  end;
2074  %end;
2075  end;
2076  wpdr=j(n,n,0);
2077  soma=j(n,1,0);
2078  do i=1 to n;
2079  do j=1 to n;
2080  soma[i]=soma[i]+w[i,j];
2081  end;
2082  end;
2083  do i=1 to n;
2084  do j=1 to n;
2085  if soma[i]=0 then wpdr[i,j]=0;
2086  else wpdr[i,j]=w[i,j]/soma[i];
2087  end;
2088  end;
2089  create Wmatrix from w;
2090  append from w;
2091  create Wmatrix_sdr from wpdr;
2092  append from wpdr;
2093  quit;
2094  %end;
2095  %mend Wmatrix;

2096  %Wmatrix(map=NY,id=id,lat=centroid_lat,long=centroid_long,out=neighbor); run;

NOTE: There were 1794 observations read from the data set WORK.NY.
NOTE: 0 observations with duplicate key values were deleted.
NOTE: The data set WORK.NY2 has 1794 observations and 5 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds



NOTE: There were 1794 observations read from the data set WORK.NY2.
      WHERE (centroid_long not = .) and (centroid_lat not = .);
NOTE: The data set WORK._HASHMAP_ has 1794 observations and 4 variables.
NOTE: DATA statement used (Total process time):
      real time           0.10 seconds
      cpu time            0.00 seconds



NOTE: There were 1794 observations read from the data set WORK._HASHMAP_.
NOTE: The data set WORK.MAXZ has 1 observations and 3 variables.
NOTE: PROCEDURE MEANS used (Total process time):
      real time           0.04 seconds
      cpu time            0.01 seconds



NOTE: There were 1 observations read from the data set WORK.MAXZ.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds


2

NOTE: There were 1794 observations read from the data set WORK.NY2.
NOTE: The data set WORK.NY2 has 1794 observations and 5 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: There were 1794 observations read from the data set WORK._HASHMAP_.
NOTE: The data set WORK.NEIGHBOR has 0 observations and 2 variables.
NOTE: There were 1794 observations read from the data set WORK.NY2.
      WHERE (myx not = .) and (myy not = .);
NOTE: The data set WORK.NONB has 1794 observations and 1 variables.
NOTE: DATA statement used (Total process time):
      real time           1.09 seconds
      cpu time            1.09 seconds



NOTE: Input data set is empty.
NOTE: The data set WORK.NEIGHBOR has 0 observations and 2 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds



NOTE: Input data set is empty.
NOTE: 0 observations with duplicate key values were deleted.
NOTE: The data set WORK._TAB_ has 0 observations and 1 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.01 seconds
      cpu time            0.00 seconds


NOTE: There were 0 observations read from the data set WORK._TAB_.
NOTE: The data set WORK._TAB_ has 0 observations and 2 variables.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: Input data set is already sorted, no sorting done.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: There were 0 observations read from the data set WORK.NEIGHBOR.
NOTE: There were 0 observations read from the data set WORK._TAB_.
NOTE: The data set WORK._TAB2_ has 0 observations and 3 variables.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: Input data set is empty.
NOTE: The data set WORK._TAB2_ has 0 observations and 3 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.04 seconds
      cpu time            0.00 seconds



NOTE: There were 0 observations read from the data set WORK._TAB2_.
NOTE: There were 0 observations read from the data set WORK._TAB_.
NOTE: The data set WORK._TAB2_ has 0 observations and 4 variables.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds



NOTE: Input data set is empty.
NOTE: The data set WORK._TAB2_ has 0 observations and 4 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds


NOTE: Table WORK._TAB_ has been dropped.
NOTE: Table WORK._HASHMAP_ has been dropped.
NOTE: Table WORK.NONB has been dropped.
NOTE: Table WORK.MAXZ has been dropped.
NOTE: Table WORK.NY2 has been dropped.
NOTE: PROCEDURE SQL used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: There were 0 observations read from the data set WORK.NEIGHBOR.
NOTE: The data set WORK.WMATRIX_COMPACT has 0 observations and 3 variables.
NOTE: DATA statement used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds


NOTE: IML Ready
WARNING: Data set WORK.NEIGHBOR is empty.

 statement : USE at line 3335 column 12
WARNING: End of File reached.

 statement : READ at line 3335 column 22
ERROR: (execution) Matrix has not been set to a value.

 operation : [ at line 3335 column 64
 operands  : coord, , *LIT1002

COORD      0 row       0 col     (type ?, size 0)


*LIT1002      1 row       1 col     (numeric)

         1

 statement : ASSIGN at line 3335 column 52
ERROR: DO expression not given value.

 statement : DO at line 3335 column 153
NOTE: The data set WORK._DIST_ has 0 observations and 3 variables.
NOTE: Exiting IML.
NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE IML used (Total process time):
      real time           0.02 seconds
      cpu time            0.00 seconds




NOTE: There were 0 observations read from the data set WORK._DIST_.
NOTE: The data set WORK.NEIGHBOR has 0 observations and 3 variables.
NOTE: DATA statement used (Total process time):
      real time           0.01 seconds
      cpu time            0.00 seconds


NOTE: Table WORK._DIST_ has been dropped.
NOTE: PROCEDURE SQL used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds



NOTE: There were 0 observations read from the data set WORK.NEIGHBOR.
NOTE: There were 0 observations read from the data set WORK.NEIGHBOR.
NOTE: The data set WORK.WMATRIX_COMPACT has 0 observations and 3 variables.
NOTE: DATA statement used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds



NOTE: Input data set is empty.
NOTE: The data set WORK.WMATRIX_COMPACT has 0 observations and 3 variables.
NOTE: PROCEDURE SORT used (Total process time):
      real time           0.01 seconds
      cpu time            0.00 seconds


NOTE: IML Ready
WARNING: Data set WORK.NEIGHBOR is empty.

 statement : USE at line 3348 column 87
WARNING: End of File reached.

 statement : READ at line 3348 column 112
ERROR: (execution) Matrix has not been set to a value.

 operation : MAX at line 3348 column 127
 operands  : idj

idj      0 row       0 col     (numeric)


 statement : ASSIGN at line 3348 column 122
ERROR: (execution) Matrix has not been set to a value.

 operation : J at line 3348 column 137
 operands  : n, n, *LIT1002

n      0 row       0 col     (type ?, size 0)


n      0 row       0 col     (type ?, size 0)


*LIT1002      1 row       1 col     (numeric)

         0

 statement : ASSIGN at line 3348 column 134
ERROR: (execution) Matrix has not been set to a value.

 operation : J at line 3358 column 13
 operands  : n, n, *LIT1006

n      0 row       0 col     (type ?, size 0)


n      0 row       0 col     (type ?, size 0)


*LIT1006      1 row       1 col     (numeric)

         0

 statement : ASSIGN at line 3358 column 7
ERROR: (execution) Matrix has not been set to a value.

 operation : J at line 3358 column 28
 operands  : n, *LIT1007, *LIT1008

n      0 row       0 col     (type ?, size 0)


*LIT1007      1 row       1 col     (numeric)

         1

*LIT1008      1 row       1 col     (numeric)

         0

 statement : ASSIGN at line 3358 column 22
ERROR: DO expression not given value.

 statement : DO at line 3358 column 37
ERROR: DO expression not given value.

 statement : DO at line 3358 column 97
ERROR: Matrix w has not been set to a value.

 statement : CREATE at line 3358 column 195
ERROR: No data set is currently open for output.

 statement : APPEND at line 3358 column 218
ERROR: Matrix wpdr has not been set to a value.

 statement : CREATE at line 3358 column 233
ERROR: No data set is currently open for output.

 statement : APPEND at line 3359 column 8
NOTE: Exiting IML.
NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE IML used (Total process time):
      real time           0.04 seconds
      cpu time            0.04 seconds

[Cruise]

@Reeza, maybe SAS version I'm running is lack of functions? while your have? I'm using 9.4TS, 1M3

[Reeza]

Was running in SAS UE. Send me a DM and I’ll email the files tomorrow.

[Cruise]

@Reeza

Hi Reeza,

I'm revisiting this post to complete to troubleshoot the error.

As you suggested, I contacted the author of the SUGI paper and I should define four mandatory variables (map, id, lat and long) from the tiger shapefile to the macro. I'm using tiger shapefile for New York at census tract level. Shp is not a valid extension to post but included the link to the data here, just in case.

I used NAME00 or TRACTCE00 (see attached screenshot of dataview) to define ID.However, both of these variables are not specific to unique combination of X and Y but INTPTLAT00 and INTPTLON00. And I used NAME00 or TRACTCE00 with INTPTLAT00 and INTPTLON00 whit no success again.

What is likely done wrong here? Any ideas or hints appreciated.

PROC MAPIMPORT OUT=newyork_ct

DATAFILE="...\tl_2010_36_tract00.shp";

run;

:

This is tiger file link

https://www.census.gov/cgi-bin/geo/shapefiles/index.php?year=2010&layergroup=Census+Tracts

/*Full error log with

%Wmatrix(map=Newyork_ct,id=TRACTCE00,lat=INTPTLAT00,long=INTPTLON00,out=neighbor); run;

*/

%Wmatrix(map=Newyork_ct,id=TRACTCE00,lat=INTPTLAT00,long=INTPTLON00,out=neighbor); run;

NOTE: There were 751298 observations read from the data set WORK.NEWYORK_CT.

NOTE: 746391 observations with duplicate key values were deleted.

NOTE: The data set WORK.NEWYORK_CT2 has 4907 observations and 15 variables.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.14 seconds

cpu time 0.28 seconds

　

　

NOTE: There were 4907 observations read from the data set WORK.NEWYORK_CT2.

WHERE (INTPTLON00 not = ' ') and (INTPTLAT00 not = ' ');

NOTE: The data set WORK._HASHMAP_ has 4907 observations and 4 variables.

NOTE: DATA statement used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

　

NOTE: There were 4907 observations read from the data set WORK._HASHMAP_.

NOTE: The data set WORK.MAXZ has 1 observations and 3 variables.

NOTE: PROCEDURE MEANS used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

NOTE: There were 1 observations read from the data set WORK.MAXZ.

NOTE: DATA statement used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

2

NOTE: There were 4907 observations read from the data set WORK.NEWYORK_CT2.

NOTE: The data set WORK.NEWYORK_CT2 has 4907 observations and 15 variables.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.01 seconds

cpu time 0.00 seconds

　

　

NOTE: Character values have been converted to numeric values at the places given by: (Line):(Column).

6:182

ERROR: Type mismatch for key variable INTPTLON00 at line 4 column 194.

ERROR: Hash data set load failed at line 4 column 194.

ERROR: DATA STEP Component Object failure. Aborted during the EXECUTION phase.

NOTE: The SAS System stopped processing this step because of errors.

NOTE: There were 1 observations read from the data set WORK.NEWYORK_CT2.

WHERE (myx not = ' ') and (myy not = ' ');

WARNING: The data set WORK.NONB may be incomplete. When this step was stopped there were 0

observations and 1 variables.

NOTE: DATA statement used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

ERROR: Variable TRACTCE00 not found.

ERROR: Variable MYID not found.

NOTE: The SAS System stopped processing this step because of errors.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

　

ERROR: The variable TRACTCE00 in the DROP, KEEP, or RENAME list has never been referenced.

NOTE: The SAS System stopped processing this step because of errors.

WARNING: The data set WORK._TAB_ may be incomplete. When this step was stopped there were 0

observations and 0 variables.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

NOTE: There were 0 observations read from the data set WORK._TAB_.

NOTE: The data set WORK._TAB_ has 0 observations and 1 variables.

NOTE: DATA statement used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

ERROR: Variable TRACTCE00 not found.

NOTE: The SAS System stopped processing this step because of errors.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

　

ERROR: BY variable TRACTCE00 is not on input data set WORK.NEIGHBOR.

ERROR: BY variable TRACTCE00 is not on input data set WORK._TAB_.

NOTE: The SAS System stopped processing this step because of errors.

WARNING: The data set WORK._TAB2_ may be incomplete. When this step was stopped there were 0

observations and 1 variables.

WARNING: Data set WORK._TAB2_ was not replaced because this step was stopped.

NOTE: DATA statement used (Total process time):

real time 0.01 seconds

cpu time 0.00 seconds

　

ERROR: Variable MYID not found.

NOTE: The SAS System stopped processing this step because of errors.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

　

ERROR: Variable TRACTCE00 is not on file WORK._TAB_.

ERROR: Invalid DROP, KEEP, or RENAME option on file WORK._TAB_.

NOTE: The SAS System stopped processing this step because of errors.

WARNING: The data set WORK._TAB2_ may be incomplete. When this step was stopped there were 0

observations and 1 variables.

WARNING: Data set WORK._TAB2_ was not replaced because this step was stopped.

NOTE: DATA statement used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

ERROR: Variable TRACTCE00 not found.

NOTE: The SAS System stopped processing this step because of errors.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

NOTE: Table WORK._TAB_ has been dropped.

NOTE: Table WORK._HASHMAP_ has been dropped.

NOTE: Table WORK.NONB has been dropped.

NOTE: Table WORK.MAXZ has been dropped.

NOTE: Table WORK.NEWYORK_CT2 has been dropped.

NOTE: PROCEDURE SQL used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

ERROR: Variable myid is not on file WORK.NEIGHBOR.

ERROR: Invalid DROP, KEEP, or RENAME option on file WORK.NEIGHBOR.

NOTE: The SAS System stopped processing this step because of errors.

WARNING: The data set WORK.WMATRIX_COMPACT may be incomplete. When this step was stopped there were

0 observations and 1 variables.

WARNING: Data set WORK.WMATRIX_COMPACT was not replaced because this step was stopped.

NOTE: DATA statement used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

ERROR: The SAS/IML product with which IML is associated is either not licensed for your system or the

product license has expired. Please contact your SAS installation representative.

ERROR: Bad product ID for procedure IML.

　

ERROR: File WORK._DIST_.DATA does not exist.

NOTE: The SAS System stopped processing this step because of errors.

WARNING: The data set WORK.NEIGHBOR may be incomplete. When this step was stopped there were 0

observations and 0 variables.

WARNING: Data set WORK.NEIGHBOR was not replaced because this step was stopped.

NOTE: DATA statement used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

WARNING: File WORK._DIST_.DATA does not exist.

WARNING: Table WORK._DIST_ has not been dropped.

NOTE: PROCEDURE SQL used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

ERROR: Variable idi is not on file WORK.NEIGHBOR.

ERROR: Variable idj is not on file WORK.NEIGHBOR.

ERROR: Invalid DROP, KEEP, or RENAME option on file WORK.NEIGHBOR.

ERROR: Variable idi is not on file WORK.NEIGHBOR.

ERROR: Variable idj is not on file WORK.NEIGHBOR.

ERROR: Invalid DROP, KEEP, or RENAME option on file WORK.NEIGHBOR.

WARNING: The variable TRACTCE00 in the DROP, KEEP, or RENAME list has never been referenced.

WARNING: The variable cTRACTCE00 in the DROP, KEEP, or RENAME list has never been referenced.

NOTE: The SAS System stopped processing this step because of errors.

WARNING: The data set WORK.WMATRIX_COMPACT may be incomplete. When this step was stopped there were

0 observations and 1 variables.

WARNING: Data set WORK.WMATRIX_COMPACT was not replaced because this step was stopped.

NOTE: DATA statement used (Total process time):

real time 0.01 seconds

cpu time 0.01 seconds

　

　

ERROR: Variable TRACTCE00 not found.

ERROR: Variable CTRACTCE00 not found.

NOTE: The SAS System stopped processing this step because of errors.

NOTE: PROCEDURE SORT used (Total process time):

real time 0.00 seconds

cpu time 0.00 seconds

　

ERROR: The SAS/IML product with which IML is associated is either not licensed for your system or the

product license has expired. Please contact your SAS installation representative.

ERROR: Bad product ID for procedure IML.

[Reeza]

　

ERROR: The SAS/IML product with which IML is associated is either not licensed for your system or the

product license has expired. Please contact your SAS installation representative.

ERROR: Bad product ID for procedure IML.

Do you have an IML license?

[Cruise]

@Reeza

Oops, thanks for pointing out to a Licencing issue. I'll have to switch over to the other station with a good licence. In the meanwhile my colleague commented below and I was just gonna try her suggestions.

Hi there,

‘TRACTCE00’ is not unique within the state, only within the county.  Try concatenating ‘COUNTYFP00’ with ‘TRACTCE00’ and using that for your ID.

I don’t see X & Y in the shapefile I downloaded from the Census that appears to be the one you are using.

If you are looking at the data in SAS, X & Y are variables SAS adds as part of the PROC MAPIMPORT procedure.
