SAS Heat Map

[Ihsan-Mahdi]

Hello,

I have a set containing 2 types of injuries (coded 0 & 1), and a date/time field. I'm interested in creating a heat map showing the frequency of occurrence of each injury type by time of day in a week, and another map showing frequency of occurrence by month of year.

Is that doable? If so, what would be the code?

This is a sample of my set:

data sample (compress=binary);

      INPUT record_id Injury1 Injury2 year InjuryDateTime:DATETIME20.;

  format InjuryDateTime datetime20.;

      DATALINES;

2497728 1 0 2021 27APR2021:15:00:00

2590114 1 0 2023 25NOV2023:20:20:00

2590765 1 0 2023 18AUG2023:17:20:00

2590842 1 0 2023 06JUL2023:10:00:00

2591821 1 0 2023 16AUG2023:18:36:00

2591839 1 0 2023 31JUL2023:14:46:00

2591860 1 0 2023 04JUL2023:17:59:00

2599177 1 0 2023 01OCT2023:18:00:00

2599305 1 0 2023 01OCT2023:14:00:00

2600027 1 0 2023 22OCT2023:19:00:00

2600280 1 0 2023 22OCT2023:19:00:00

2502863 0 1 2021 13NOV2021:13:00:00

2507650 0 1 2021 24SEP2021:16:25:00

2507987 0 1 2021 12AUG2021:14:21:00

2508819 0 1 2021 07MAY2021:18:15:00

2516706 0 1 2021 21SEP2021:09:07:00

2516721 0 1 2021 20SEP2021:21:00:00

2516869 0 1 2021 05SEP2021:09:40:00

2517049 0 1 2021 14AUG2021:08:18:00

2517142 0 1 2021 05AUG2021:22:00:00

2517187 0 1 2021 31JUL2021:00:40:00

    ;

    RUN;

Thank you!

[sbxkoenk]

Let this paper be an inspiration:

Paper SAS4341-2016

Graph A Million with the SGPLOT Procedure

Prashant Hebbar and Sanjay Matange, SAS Institute Inc.

https://support.sas.com/resources/papers/proceedings16/SAS4341-2016.pdf

It's using the HEATMAP statement on numerous occasions.

In the third maintenance release of SAS 9.4 (SAS 9.4 M3), the SGPLOT procedure supports a HEATMAP statement.

Koen

[Ihsan-Mahdi]

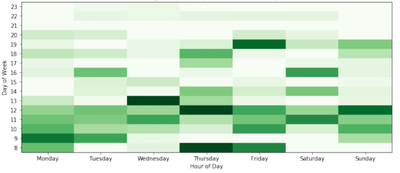

Thank you for responding. The referenced paper doesn't seem to contain a map similar to what I want, which would be something like this:

[Tom]

Did you try something like this?

data for_plot;
  set sample;
  day=weekday(datepart(InjuryDateTime));
  hour=hour(InjuryDateTime);
run;

proc sgplot;
  heatmap x=day y=hour / freq=Injury1;
run;
proc sgplot;
  heatmap x=day y=hour / freq=Injury2;
run;

[Ihsan-Mahdi]

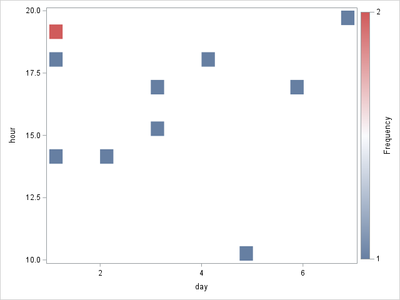

I did, but the graphs comes up weird:

I was hoping for Y axis labels of 0-23 and X axis labels of 1-7

[sbxkoenk]

• You can try DISCRETEX and DISCRETEY options on the heatmap statement.
• You can try min=, max=, or values=(list) or discreteorder= within the xaxis or yaxis statements to control the axes ranges better.
• You can also customize Ticks and Labels (tickvalueattrs= and display=).

Ciao,
Koen

[Ksharp · Accepted solution]

proc format;
value fmt
2='Monday'
3='Tuesday'
4='Wednesday'
5='Thursday'
6='Firday'
7='Saturday'
8='Sunday'
;
run;

data sample (compress=binary);
      INPUT record_id Injury1 Injury2 year InjuryDateTime:DATETIME20.;
	  weekday=weekday(datepart(InjuryDateTime));
	  if weekday=1 then weekday=8;   /*To make x value from Mon to Sun*/
	  hour=hour(timepart(InjuryDateTime));
  format InjuryDateTime datetime20. weekday fmt.;
      DATALINES;
2497728 1 0 2021 27APR2021:15:00:00
2590114 1 0 2023 25NOV2023:20:20:00
2590765 1 0 2023 18AUG2023:17:20:00
2590842 1 0 2023 06JUL2023:10:00:00
2591821 1 0 2023 16AUG2023:18:36:00
2591839 1 0 2023 31JUL2023:14:46:00
2591860 1 0 2023 04JUL2023:17:59:00
2599177 1 0 2023 01OCT2023:18:00:00
2599305 1 0 2023 01OCT2023:14:00:00
2600027 1 0 2023 22OCT2023:19:00:00
2600280 1 0 2023 22OCT2023:19:00:00
2502863 0 1 2021 13NOV2021:13:00:00
2507650 0 1 2021 24SEP2021:16:25:00
2507987 0 1 2021 12AUG2021:14:21:00
2508819 0 1 2021 07MAY2021:18:15:00
2516706 0 1 2021 21SEP2021:09:07:00
2516721 0 1 2021 20SEP2021:21:00:00
2516869 0 1 2021 05SEP2021:09:40:00
2517049 0 1 2021 14AUG2021:08:18:00
2517142 0 1 2021 05AUG2021:22:00:00
2517187 0 1 2021 31JUL2021:00:40:00
;



proc freq data=sample noprint;
table weekday*hour/out=freq1;
run;

proc sgplot data=freq1 noautolegend;
   heatmapparm x=weekday y=hour colorresponse=count / colormodel=(CXEDF8E9 CXC7E9C0 CXA1D99B CX74C476 CX31A354 CX006D2C );
   xaxis integer values=(2 to 8 by 1) valueshint;
   yaxis integer values=(0 to 24 by 1) valueshint;
run;

[Ihsan-Mahdi]

Thank you so much and my apologies for the delayed reply. This worked great!

[Ksharp]

Sorry. I just realize a BIG/SEVERITY issue.

Since SAS take Sunday as start of a week, the weak day of Sunday is 1, therefore the PROC FORMAT should be consist with it :

proc format;
value fmt
2='Monday'
3='Tuesday'
4='Wednesday'
5='Thursday'
6='Firday'
7='Saturday'
1='Sunday'
;
run;
