Log file into SAS Dataset

[jei]

Hi,

I need to convert the attached log file into dataset. The log file contains multiple delimiters such as "|" , tab, and a special character (please refer to the attached log file).

Thanks for your help in advance.

[ClarkLawson]

Would you be able to outline your target position for the dataset, as that would help someone being able to give you some assistance.

[jei]

Hi,

I wish to have the same format of the output on the attached file.

Thank you

[Kurt_Bremser]

Log files are text. Text manipulation is done with proper tools; SAS and Excel are not proper tools for text.

[Tom]

So what did you try?

Looking at the file you posted in the viewer on this site it looks like text file that delimited with a |.

It is trivial to read a file that is delimited with | in SAS.

data want ;
  infile 'myfile.txt' dsd dlm='|' truncover ;
  length var1-var5 $200 ;
  input var1-var5;
run;

It does appear that one of column appears to contain a list of values delimited by something that looks like a square in the view, but even that should not be hard to deal with once you have the data in a dataset instead of a text file.

[jei]

Hi @Tom

I tried the code below

DATA TEST_LOG;
    LENGTH
        STATUS           $ 13
        TIMESTAMP        8
        EVENT            $ 2577
        VAL		 8
       	;
    FORMAT
        STATUS           $CHAR13.
        TIMESTAMP        BEST14.
        EVENT            $CHAR2577.
        ;
    INFORMAT
        STATUS           $CHAR13.
        TIMESTAMP        BEST14.
        EVENT            $CHAR2577.
        ;
    INFILE 'E:\TEST.log'
	LRECL=32767
        FIRSTOBS=2
        DLMSTR='7C'x
        TRUNCOVER

		;
    INPUT
        STATUS           : $CHAR13.
        TIMESTAMP        : ?? BEST14.
        EVENT            : $CHAR2577.
	;
	ARRAY AR[1] EVENT;
		DO i=1 ;
		AR(i)=scan(EVENT, i, '09'X);
		END;


RUN;

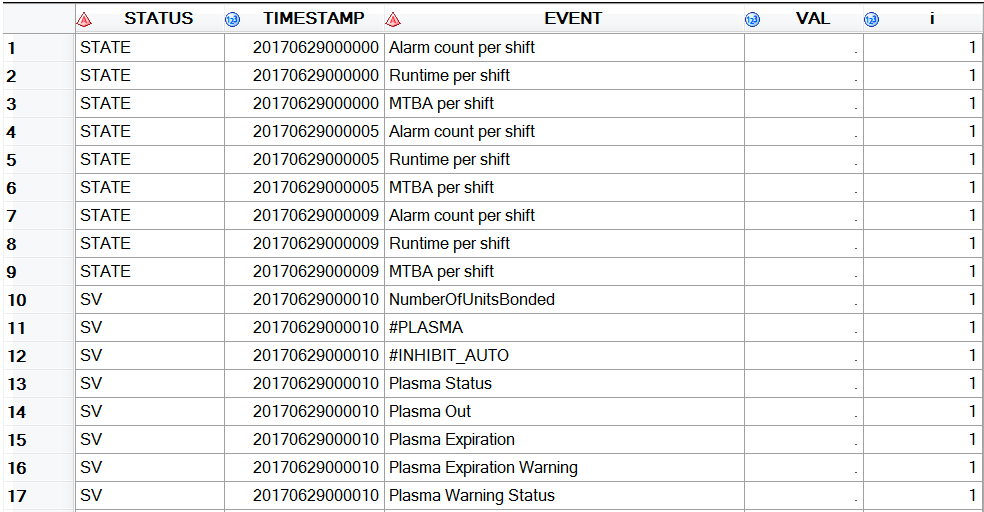

and gives the output below.

If you can notice, the value whose delimiter is a tab was gone.

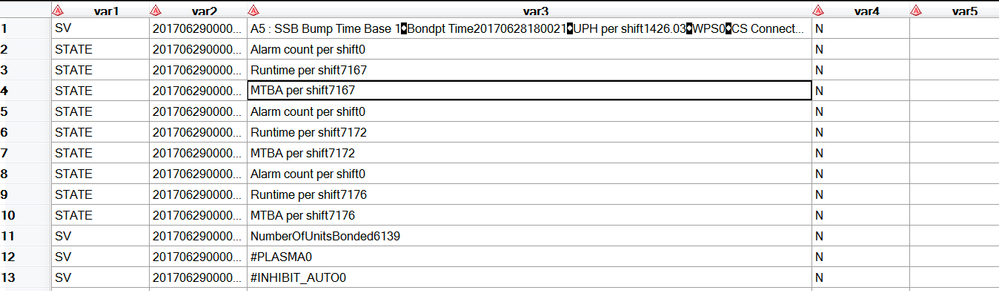

I tried your given code and it gives me the output below.

I want to have another column for the numeric values in var3 column - which are in the most right. In my code, these values did not appear.

So basically, I'm wishing to have like the output below.

Thank you!

[Patrick]

@jei

Just use DLM instead of DLMSTR and add all THREE delimiters as value (a pipe, backspace, tab).

DATA TEST_LOG;
    LENGTH
        STATUS           $ 13
        TIMESTAMP        8
        EVENT            $ 100
        VAL		 8
       	;
    FORMAT
        STATUS           $CHAR13.
        TIMESTAMP        BEST14.
        EVENT            $100.
        ;
    INFORMAT
        STATUS           $CHAR13.
        TIMESTAMP        BEST14.
        EVENT            $100.
        ;
    INFILE 'c:\temp\TEST.txt'
	      LRECL=32767
        FIRSTOBS=1
        DLM='7c0809'x
        dsd
        TRUNCOVER

		;
    INPUT
        STATUS           : $CHAR13.
        TIMESTAMP        : ?? BEST14.
        EVENT            : $100.
        val              : best15.
	;

RUN;


[Kurt_Bremser · Accepted solution]

Your infile actually has three delimiters:

- the pipe character

- hex 08 to separate items in the long string

- hex 09 to separate events and values within an item

So you need a do loop for the items and two different splits along these separators:

data jei;
infile '$HOME/sascommunity/jei.txt' dlmstr=CRLF dlm='|' truncover;
input
  status :$5.
  TIMESTAMP :$20.
  variablestr :$500.
  n :$1.
;
length
  event $50
  val 8
;
do i = 1 to countw(variablestr,'08'x);
  event = scan(scan(variablestr,i,'08'x),1,'09'x);
  val = input(scan(scan(variablestr,i,'08'x),2,'09'x),best.);
  output;
end;
drop i variablestr;
run;

proc print data=jei noobs;
run;

Partial result:

status      TIMESTAMP       n    event                              val

SV        20170629002459    N    NumberOfUnitsBonded               6729
SV        20170629002459    N    Previous Number of Unit Bonded    6732
SV        20170629002459    N    Number of Unit Bonded             6733
SV        20170629002459    N    UPS                               3433
SV        20170629002459    N    UOL                               6733
SV        20170629002501    N    NumberOfUnitsBonded               6730
SV        20170629002501    N    Previous Number of Unit Bonded    6733
SV        20170629002501    N    Number of Unit Bonded             6734
SV        20170629002501    N    UPS                               3434
SV        20170629002501    N    UOL                               6734
STATE     20170629002501    N    Alarm count per shift                0
STATE     20170629002501    N    Runtime per shift                 8668
STATE     20170629002501    N    MTBA per shift                    8668
SV        20170629002502    N    NumberOfUnitsBonded               6731
SV        20170629002503    N    Previous Number of Unit Bonded    6734
SV        20170629002503    N    Number of Unit Bonded             6735
SV        20170629002503    N    UPS                               3435
SV        20170629002503    N    UOL                               6735
SV        20170629002504    N    NumberOfUnitsBonded               6732
SV        20170629002504    N    Previous Number of Unit Bonded    6735
SV        20170629002504    N    Number of Unit Bonded             6736
SV        20170629002504    N    UPS                               3436
SV        20170629002504    N    UOL                               6736
STATE     20170629002505    N    Alarm count per shift                0
STATE     20170629002505    N    Runtime per shift                 8672
STATE     20170629002505    N    MTBA per shift                    8672
SV        20170629002506    N    NumberOfUnitsBonded               6733
SV        20170629002506    N    Previous Number of Unit Bonded    6736
SV        20170629002506    N    Number of Unit Bonded             6737
SV        20170629002506    N    UPS                               3437
SV        20170629002506    N    UOL                               6737
SV        20170629002508    N    NumberOfUnitsBonded               6734
SV        20170629002508    N    Previous Number of Unit Bonded    6737
SV        20170629002508    N    Number of Unit Bonded             6738
SV        20170629002508    N    UPS                               3438
SV        20170629002508    N    UOL                               6738

To make the data more analyzable for SAS, consider to convert the timestamp value to a SAS datetime value.
