Include graphs in results window

[michshoot]



 hiii

there is no setting to get the outputs only in the output window?
my problem that I do not see the plots in the output window but are stuck on the desktop

is there any setting in the tools that can make me change the destination of the plot?

[michshoot]

[Reeza]

Listing doesn't support graphs. Use HTML, PDF, RTF or a different ODS destination instead.

You can turn on ODS HTML using:

ODS HTML;

Or change it in your Preference>Results>Check the options you want.

---

@michshoot wrote:

---

[michshoot]

there is no setting to get the outputs only in the output window?
my problem that I do not see the plots in the output window but are stuck on the desktop

[Reeza · Accepted solution]

Did you try my earlier suggestion and did that not work?

Or change it in your Preference>Results>

Choose HTML, then it will show up all as one document.

---

@michshoot wrote:
there is no setting to get the outputs only in the output window?
my problem that I do not see the plots in the output window but are stuck on the desktop

---

[Cynthia_sas]

Hi:

  Unless you are using RTF or PDF or HTML5 destinations (where the image is embedded in the output file), the default behavior for Display Manager in Windows is to write your images to disk and then to build an IMG tag that points to the image location.

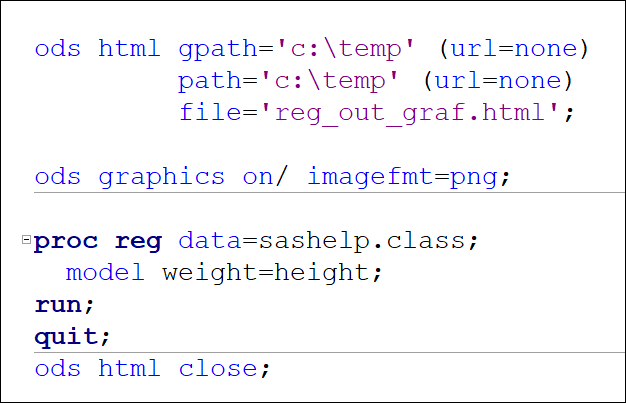

  When I use this code in ODS HTML (taking full control to specify the GPATH and PATH locations),

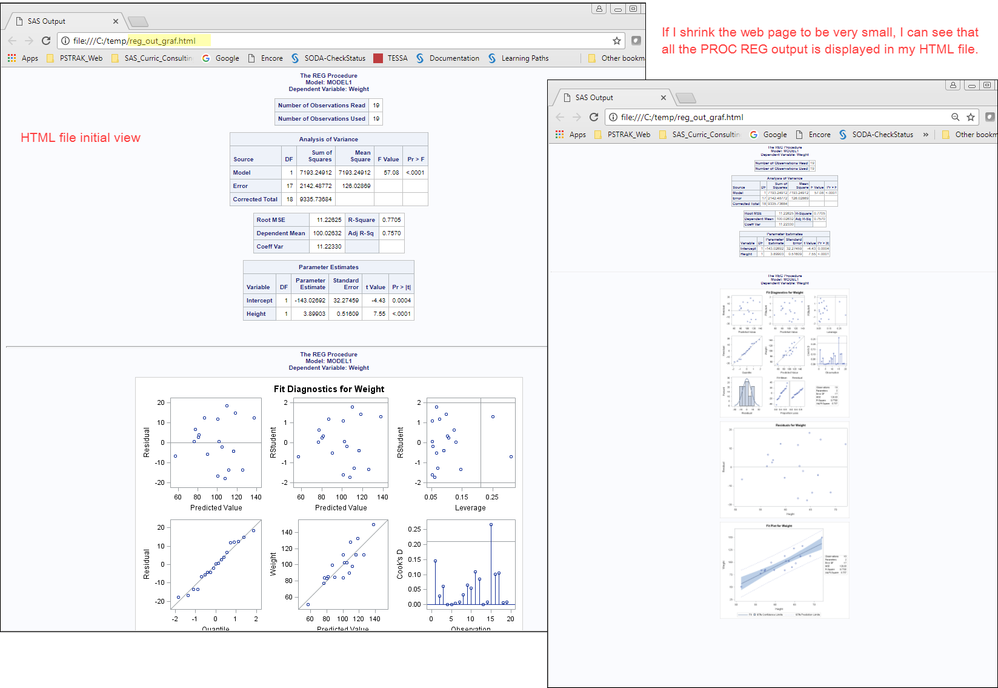

Then I do see ALL the output in my HTML file (sorry, to see ALL the output, I had to make the browser really, really small):

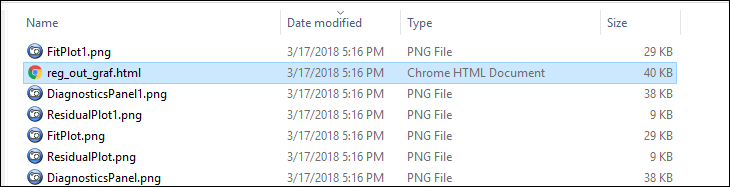

The images are still in my C:\temp folder, as shown here:

The image links may also appear in your Results Window if the LISTING destination is also open. When you click on the image icon, the default behavior is to open your system's designated picture viewer to show you the file. When you create RTF, PDF or HTML5 output, it is possible to create output where the image is embedded in the output. Please refer to the ODS documentation for more information about using these destinations.

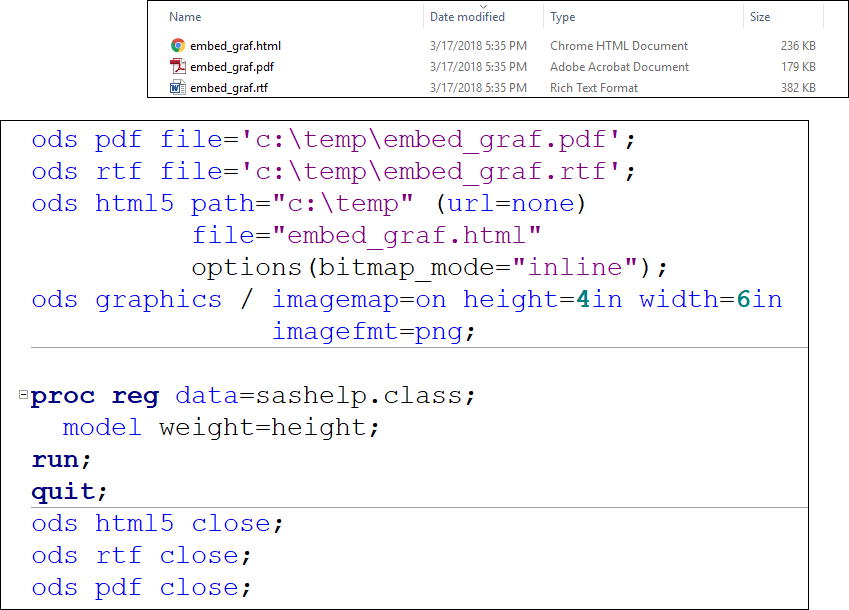

  When I use ODS RTF, ODS PDF or ODS HTML5, then I ONLY see the output files in my c:\temp folder:

Hope this is useful,

Cynthia

[michshoot]

there is no setting to get the outputs only in the output window?
my problem that I do not see the plots in the output window but are stuck on the desktop

is there any setting in the tools that can make me change the destination of the plot?

[Cynthia_sas]

Hi:
The "output" window in Display Manager is the LISTING destination. When you use GCHART, with the LISTING destination opened, the graph images will be sent to your GPATH= location, not the Output window. However, when you click on the icon in the Results pane, the images will open using your default picture viewer (the icon in my screen shot is for my picture viewer default of FullShot).

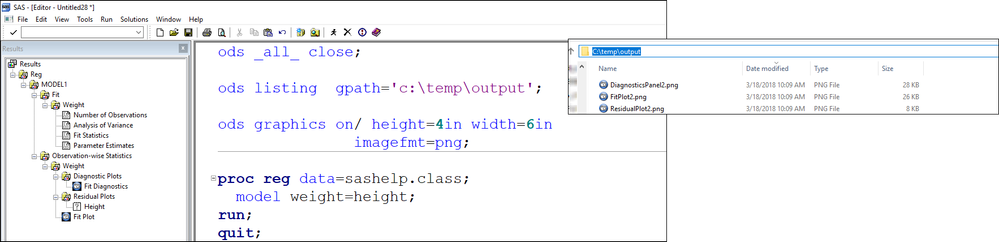

For example, see this code, where I have turned off all other destinations and then opened the LISTING destination and changed GPATH to c:\temp\output location.

The tabular output will appear in the Output Window, but the images will appear in my picture viewer, not in the Output Window. You have to use ODS HTML, PDF, HTML or other destinations, as I showed to get the Tables and Graphs together.

cynthia

Here's an example:

I don't actually recommend using LISTING unless you need to get the graphs into separate PNG files.

[michshoot]

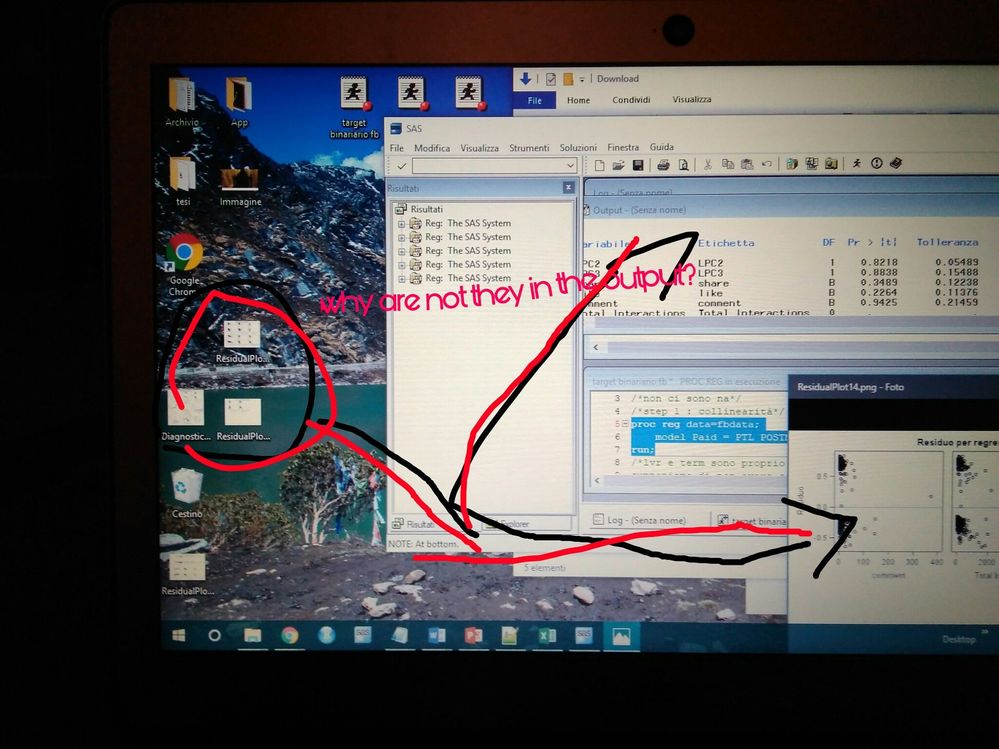

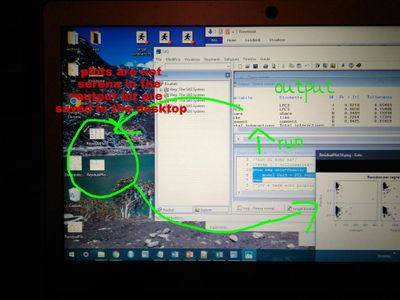

I made a small grammatical error in the photo:
plots are not saved in the output of sas but in the desktop .. the problem that I do not see the plots in the output window .. what setting should I convert ???

[PGStats]

Click on the + sign next to Reg in the Results window pane on the left. Develop the hierarchy, at one point you will see icons for the graphs.
