Adding column/row titles & graph colors via PROC GREPLAY

[Jack1]

I have the following data on quarterly sales by type (called WAM, SME and FS) by source of change: lost, new and top 10 gainers.  Using PROC GREPLAY I can place all the graphs on 1 slide using this code:

data trends;
length type $14.;
infile datalines missover;
input type $ period $ sme_adv fs_adv wam_adv;
datalines;
lost CY17Q1 -490 -39 -2
lost CY17Q2 -478 -38 -3
lost CY17Q3 -505 -78 -2
lost CY17Q4 -491 -44 -43
lost CY18Q1 -491 -44 -1
lost CY18Q2 -485 -46 -10
lost CY18Q3 -460 -181 -13
lost CY18Q4 -442 -387 -12
lost CY19Q1 -407 -468 -21
lost CY19Q2 -433 -178 -5
lost CY19Q3 -447 -181 -5
lost CY19Q4 -421 -298 -2
lost CY20Q1 -395 -286 -3
lost CY20Q2 -410 -259 -19
lost CY20Q3 -411 -359 -25
lost CY20Q4 -537 -427 -10
new CY17Q1 19 206 26
new CY17Q2 428 264 2
new CY17Q3 397 496 1
new CY17Q4 460 888 2
new CY18Q1 492 1047 100
new CY18Q2 531 522 12
new CY18Q3 568 490 50
new CY18Q4 414 810 1
new CY19Q1 427 685 1
new CY19Q2 468 750 8
new CY19Q3 439 687 7
new CY19Q4 581 404 52
new CY20Q1 961 246 97
new CY20Q2 960 130 110
new CY20Q3 1136 246 110
new CY20Q4 831 289 150
top_10_gainers CY17Q1 60 345 1038
top_10_gainers CY17Q2 35 254 1043
top_10_gainers CY17Q3 80 517 579
top_10_gainers CY17Q4 55 436 267
top_10_gainers CY18Q1 110 377 190
top_10_gainers CY18Q2 122 433 993
top_10_gainers CY18Q3 150 521 682
top_10_gainers CY18Q4 100 420 1320
top_10_gainers CY19Q1 90 336 1518
top_10_gainers CY19Q2 75 364 1189
top_10_gainers CY19Q3 50 602 560
top_10_gainers CY19Q4 55 377 1969
top_10_gainers CY20Q1 80 636 3655
top_10_gainers CY20Q2 92 1431 3114
top_10_gainers CY20Q3 111 2359 8896
top_10_gainers CY20Q4 150 1859 4191
;

%macro mylist(name,type,measure);
ODS tagsets.sasreport13(ID=EGSR) gtitle; * Puts the title inside the graph (https://communities.sas.com/t5/SAS-Enterprise-Guide/Locating-titles-inside-of-chart-area-in-proc-sgplot/td-p/229762?nobounce) see Feb 10, 2017 note from SAS;
ods graphics / reset=all imagename=&name. height=3.75in width=6.5in;

title4 FONT='Arial Narrow/Bold' HEIGHT=20 PT COLOR=Black ;
PROC SGPLOT DATA = trends noborder noautolegend nowall noborder pad=0;
where type=&type.;
SERIES X = period Y = &measure. / LINEATTRS = (color=blue THICKNESS = 5);
XAXIS DISPLAY=(NOLABEL) GRID valueattrs=(color=black size=12pt) LABELATTRS=(color=black size=12pt weight=bold) fitpolicy=thin;
YAXIS DISPLAY=(NOLABEL) GRID valueattrs=(color=blue size=12pt weight=bold) LABELATTRS=(color=blue size=12pt weight=bold);
RUN;
title4;
%mend;
%mylist('sme_adv_lost','lost',sme_adv);
%mylist('sme_adv_new','new',sme_adv);
%mylist('sme_adv_top10_gainers','top_10_gainers',sme_adv);
%mylist('wam_adv_lost','lost',WAM_adv);
%mylist('wam_adv_new','new',WAM_adv);
%mylist('wam_adv_top10_gainers','top_10_gainers',WAM_adv);


******End of data generation********************;
* Create graphical catalogue to place multiple charts on one page;
%macro delcat(catname);

%if %sysfunc(cexist(&catname))
%then %do;
proc greplay nofs igout=&catname;
delete _all_;
run;
quit;
%end;
%mend delcat;
%delcat(work.gseg)

* Create graphical catalogue to place multiple charts on one page;
proc greplay tc=work.tmplt nofs;
tdef PK1
1 / llx = 0 lly = 51 ulx = 0 uly = 100 lrx = 33 lry = 51 urx = 33 ury = 100
2 / llx = 34 lly = 51 ulx = 34 uly = 100 lrx = 66 lry = 51 urx = 66 ury = 100
3 / llx = 67 lly = 51 ulx = 67 uly = 100 lrx = 100 lry = 51 urx = 100 ury = 100
4 / llx = 0 lly = 0 ulx = 0 uly = 50 lrx = 33 lry = 0 urx = 33 ury = 50
5 / llx = 34 lly = 0 ulx = 34 uly = 50 lrx = 66 lry = 0 urx = 66 ury = 50
6 / llx = 67 lly = 0 ulx = 67 uly = 50 lrx = 100 lry = 0 urx = 100 ury = 50 ;
run;
quit;

ods _all_ close;
ods listing;
options orientation=landscape topmargin=.25IN bottommargin=.25IN
leftmargin=.25IN rightmargin=.25IN ;
goptions reset=all device=PNG300 nodisplay hsize=6.5in vsize=3.75in;


%let workdir=%trim(%sysfunc(pathname(work)));
ods listing gpath="&workdir" image_dpi=100;

goptions reset=all device=PNG300 nodisplay vsize=3.75in hsize=6.5in imagestyle=fit;

goptions iback="&workdir.\sme_adv_lost.png";
proc gslide name='sgplot1'; run; quit;

goptions iback="&workdir.\sme_adv_new.png";
proc gslide name='sgplot2'; run; quit;

goptions iback="&workdir.\sme_adv_top10_gainers.png";
proc gslide name='sgplot3'; run; quit;

goptions iback="&workdir.\wam_adv_lost.png";
proc gslide name='sgplot4'; run; quit;

goptions iback="&workdir.\wam_adv_new.png";
proc gslide name='sgplot5'; run; quit;

goptions iback="&workdir.\wam_adv_top10_gainers.png";
proc gslide name='sgplot6'; run; quit;

goptions reset=all device=png300 hsize=8in vsize=5.5in;
ods _all_ close;
ODS rtf file='C:\user\SAS_Customer_Data\base_analysis\sales_segment.rtf' image_dpi=300 ;

* Place first 4 charts onto one page;
proc greplay igout=work.gseg
tc=work.tmplt nofs;
template PK1;
treplay 1:1 2:2 3:3 4:4 5:5 6:6 ;
run;
quit;
ods _all_ close;
ods listing;

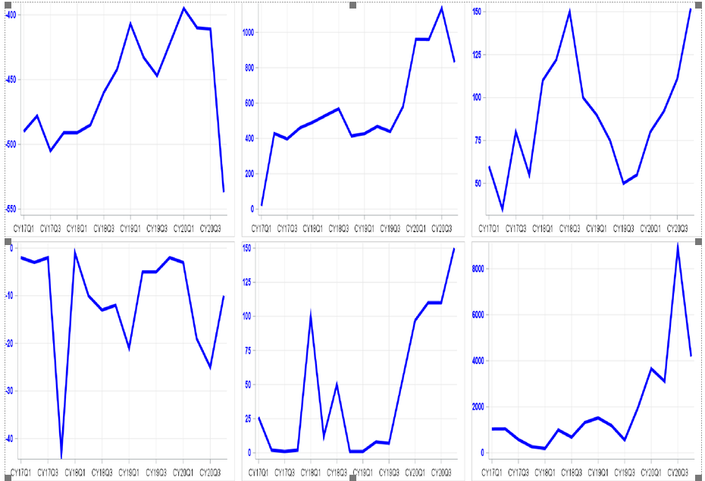

Which gives me the following image:

However I need to enhance this group of graphs with the following:

1. Main title

2. Row and column titles

3. Color each graph using a stop light analogy.  Using the latest reported quarter I want the entire graph to be colored in the following way based on CY20Q4 values vs CY19Q4 values (which are YoY changes):

           if CY20Q4 > CY19Q4 then color = green

           if CY20Q4 < CY19Q4 then color = red

           if CY20Q4 = CY19Q4 then color = yellow

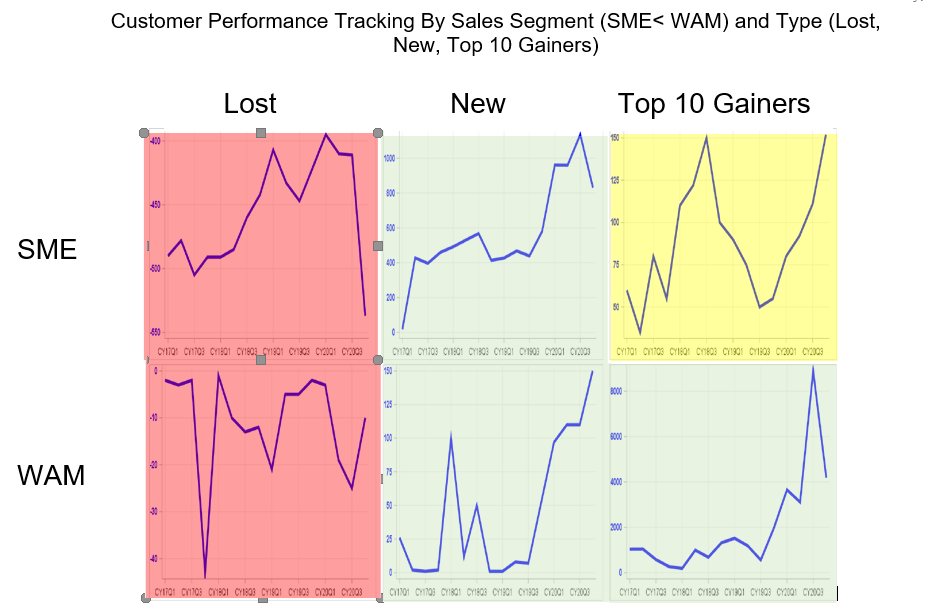

So the end graph looks like this:

How do I do this?

Thanks.

[AhmedAl_Attar]

The techniques in this paper https://www.lexjansen.com/phuse/2006/cc/CC07.pdf

might work for you,

Hope this helps,

Ahmed
