Hi,
My code runs, yay! But doesn't get me the desired results...

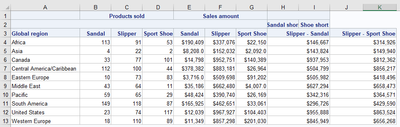

I currently get:
But I'd like the top two header rows put into one.
And I'd like the last two of those column headers to be in red font and merged across 2 cells, to line up with the columns below them.

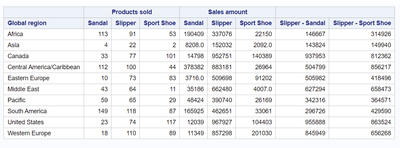

Like this:
I know that's a few things together, but I'm worried that they'll interact and so can't be considered separetly.
Thanks
Rodney
%let PathAndFile = 'c:\MyFolder\Shoes Test.xlsx';
data shoes_raw;
set sashelp.shoes;
where product in ('Sandal' 'Slipper' 'Sport Shoe');
run;
ODS excel
file = "&PathAndFile."
options ( embedded_titles='OFF' /*On means text in TITLE statement of proc tabulate will show in excel file*/
sheet_interval="none" /*when to split off to a new page - "none" means not at all*/
sheet_name='Shoes Tests' /*Name of Sheet*/
gridlines ='off' /*set printable gridlines*/
absolute_column_width='23, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10' /*setting column widths*/
absolute_row_height='15.75' /*setting column height*/
);
proc report data = shoes_raw missing;
*stating columns to be in the report and their order;
column region ('Products sold' stores,product)
('Sales amount' Sales,product)
('Sandal short' Sandal_Diff)
('Shoe short' Shoe_Diff)
;
*define columns directly from dataset variables;
define region / 'Global region' group
style(header)=[just=left borderbottomstyle=solid bordertopstyle=solid];
define stores / ' ' analysis sum format=comma.
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2'];
define Sales / ' ' analysis sum format=dollar.2
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2'];
define product / ' ' across order=internal
style(header)=[borderbottomstyle=solid bordertopstyle=solid just=right.];
*define cumputed columns;
define Sandal_Diff / "Slipper - Sandal" computed format=dollar.2
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2']
style(column)=[ tagattr='MERGEACROSS:2'];
define Shoe_Diff / "Slipper - Sport Shoe" computed format=dollar.2
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2']
style(column)=[tagattr='MERGEACROSS:2'];
*computing columns (that are based off other columns);
*columns produced from the across option of the 'month' variable do not have a name so must be reffered to by their column number, as can be counted in the column statement;
compute Sandal_Diff;
Sandal_Diff = _c6_ - _c5_;
endcomp;
compute Shoe_Diff;
Shoe_Diff = _c6_ - _c7_;
endcomp;
run;
ods excel close;
Thanks Athenkosi,
That's certainly covered the first step of getting all the heading on the correct lines.
I then realised I could do all my header cell merging using the report level header style with a traffic lighting version of tagattr = mergeaccross.
This did bring about a strange quirk, when the last header (Slipper - Sport shoe) was merged across cells it did the same to cell A1
That's why I added a Dummy Value label and coloured it white.
The code below carries on from Athenkosi code, and answers everything I need (it doesn't have the red colouring, but that'll be easy enough... fingers crossed)
Thanks everyone
ODS excel
file = "C:\My Folder\Shoes Test.xlsx"
options ( embedded_titles='OFF'
sheet_interval="none"
sheet_name='Shoes Tests'
gridlines ='off'
absolute_column_width='23, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10'
absolute_row_height='15.75'
);
proc format;
value $MergeAcross_Headers
'Sandal short' , 'Slipper - Sandal', 'Shoe short', 'Slipper - Sport shoe' = MERGEACROSS:2
;
value $DummyWhiteOut
'Dummy Value' = white
;
run;
proc report data=sashelp.shoes
style(header)=[tagattr=$MergeAcross_Headers. color=$DummyWhiteOut.];
where product in ('Sandal' 'Slipper' 'Sport Shoe');
column ('Dummy Value'(''('Global Regions' Region))) ('Products sold' Product),stores ('Sales amount' Product), sales
('Sandal short' ('' ('Slipper - Sandal' Sandal_Diff))) ('Shoe short' ('' ('Slipper - Sport shoe' Shoe_Diff)));
define Region / group order=internal;
define Product / across '';
define Region / '';
define stores / '';
define sales / '';
define Sandal_Diff / computed format=dollar.2 ''
style(column)=[ tagattr='MERGEACROSS:2'];
define Shoe_Diff / computed format=dollar.2 ''
style(column)=[ tagattr='MERGEACROSS:2'];
compute Shoe_Diff;
Shoe_Diff = _c6_ - _c7_;
Sandal_Diff = _c6_ - _c5_;
endcomp;
run;
ods excel close;
For the last two columns, I could not get a second set of labels (what you have shown in red). I guess you could do a combined label spanning the two columns.
proc report data = shoes_raw missing;
*stating columns to be in the report and their order;
column region ('Products sold' stores, product)
('Sales amount' Sales, product)
/*
('Sandal short' Sandal_Diff)
('Shoe short' Shoe_Diff)
*/
( Sandal_Diff Shoe_Diff)
;
*define columns directly from dataset variables;
define region / group 'Global region'
style(header)=[just=left borderbottomstyle=solid bordertopstyle=solid];
define stores / analysis sum format=comma. ''
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2'];
define Sales / analysis sum format=dollar.2 ''
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2'];
define product / across order=internal ''
style(header)=[borderbottomstyle=solid bordertopstyle=solid just=right.];
*define cumputed columns;
define Sandal_Diff / "Slipper - Sandal" computed format=dollar.2
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2']
style(column)=[ tagattr='MERGEACROSS:2'];
define Shoe_Diff / "Slipper - Sport Shoe" computed format=dollar.2
style(header)=[just=right borderbottomstyle=solid bordertopstyle=solid tagattr='MERGEACROSS:2']
style(column)=[tagattr='MERGEACROSS:2'];
*computing columns (that are based off other columns);
*columns produced from the across option of the 'month' variable do not have a name so must be reffered to by their column number, as can be counted in the column statement;
compute Sandal_Diff;
Sandal_Diff = _c6_ - _c5_;
endcomp;
compute Shoe_Diff;
Shoe_Diff = _c6_ - _c7_;
endcomp;
run;
ods excel close;
Thanks ghosh,
I actually want individual titles for Sandal_Diff and Shoe_Diff (as per my original code).
I just want the whole of Sandal_Diff (data, and 2 levels of header) to span 2 Excel columns. And then likewise for Shoe_Diff.
The reason is that when using my real world (confidential) data then I need the header words to be across 2 columns to fit the words into the cells.
But I don't want to change the column width as that will muck up subsequent tables on the same sheet.
Frustratingly, this all looks fine in the SAS (HTML) output, it's just when I open the Excel spreadsheet that it doesn't work.
If you just need to fit in a long label just use the split option on the proc report line and embed the chosen split character in the label
Sorry I inserted the wrong code, and accepted it as the solution, doh!!!
This is the correct solution:
ODS excel
file = "C:\My Folder\Shoes Test.xlsx"
options ( embedded_titles='OFF'
sheet_interval="none"
sheet_name='Shoes Tests'
gridlines ='off'
absolute_column_width='23, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10'
absolute_row_height='15.75'
);
proc format;
value $MergeAcross_Headers
'Sandal short' , 'Slipper - Sandal', 'Shoe short', 'Slipper - Sport shoe' = MERGEACROSS:2
;
value $DummyWhiteOut
'Dummy Value' = white
;
run;
proc report data=sashelp.shoes
style(header)=[tagattr=$MergeAcross_Headers. color=$DummyWhiteOut.];
where product in ('Sandal' 'Slipper' 'Sport Shoe');
column ('Dummy Value'(''('Global Regions' Region))) ('Products sold' Product),stores ('Sales amount' Product), sales
('Sandal short' ('' ('Slipper - Sandal' Sandal_Diff))) ('Shoe short' ('' ('Slipper - Sport shoe' Shoe_Diff)));
define Region / group order=internal;
define Product / across '';
define Region / '';
define stores / '';
define sales / '';
define Sandal_Diff / computed format=dollar.2 ''
style(column)=[ tagattr='MERGEACROSS:2'];
define Shoe_Diff / computed format=dollar.2 ''
style(column)=[ tagattr='MERGEACROSS:2'];
compute Shoe_Diff;
Shoe_Diff = _c6_ - _c7_;
Sandal_Diff = _c6_ - _c5_;
endcomp;
run;
ods excel close;
Try this.
ODS excel
file = "c:\MyFolder\Shoes Test.xlsx"
options ( embedded_titles='OFF'
sheet_interval="none"
sheet_name='Shoes Tests'
gridlines ='off'
absolute_column_width='23, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10'
absolute_row_height='15.75'
);
proc report data=sashelp.shoes;
where product in ('Sandal' 'Slipper' 'Sport Shoe');
column ('Global Regions' Region) ('Products sold' Product),stores ('Sales amount' Product), sales
('Sandal short' ('' ('Slipper - Sandal' Sandal_Diff))) ('Shoe short' ('' ('Slipper - Sport shoe' Shoe_Diff)));
define Region / group order=internal;
define Product / across '';
define Region / '';
define stores / '';
define sales / '';
define Sandal_Diff / computed format=dollar.2 '';
define Shoe_Diff / computed format=dollar.2 '';
compute Shoe_Diff;
Shoe_Diff = _c6_ - _c7_;
Sandal_Diff = _c6_ - _c5_;
endcomp;
run;
ods excel close;
Thanks Athenkosi,
That's certainly covered the first step of getting all the heading on the correct lines.
I then realised I could do all my header cell merging using the report level header style with a traffic lighting version of tagattr = mergeaccross.
This did bring about a strange quirk, when the last header (Slipper - Sport shoe) was merged across cells it did the same to cell A1
That's why I added a Dummy Value label and coloured it white.
The code below carries on from Athenkosi code, and answers everything I need (it doesn't have the red colouring, but that'll be easy enough... fingers crossed)
Thanks everyone
ODS excel
file = "C:\My Folder\Shoes Test.xlsx"
options ( embedded_titles='OFF'
sheet_interval="none"
sheet_name='Shoes Tests'
gridlines ='off'
absolute_column_width='23, 10, 10, 10, 10, 10, 10, 10, 10, 10, 10'
absolute_row_height='15.75'
);
proc format;
value $MergeAcross_Headers
'Sandal short' , 'Slipper - Sandal', 'Shoe short', 'Slipper - Sport shoe' = MERGEACROSS:2
;
value $DummyWhiteOut
'Dummy Value' = white
;
run;
proc report data=sashelp.shoes
style(header)=[tagattr=$MergeAcross_Headers. color=$DummyWhiteOut.];
where product in ('Sandal' 'Slipper' 'Sport Shoe');
column ('Dummy Value'(''('Global Regions' Region))) ('Products sold' Product),stores ('Sales amount' Product), sales
('Sandal short' ('' ('Slipper - Sandal' Sandal_Diff))) ('Shoe short' ('' ('Slipper - Sport shoe' Shoe_Diff)));
define Region / group order=internal;
define Product / across '';
define Region / '';
define stores / '';
define sales / '';
define Sandal_Diff / computed format=dollar.2 ''
style(column)=[ tagattr='MERGEACROSS:2'];
define Shoe_Diff / computed format=dollar.2 ''
style(column)=[ tagattr='MERGEACROSS:2'];
compute Shoe_Diff;
Shoe_Diff = _c6_ - _c7_;
Sandal_Diff = _c6_ - _c5_;
endcomp;
run;
ods excel close;
can i get this output on this format column first merge with cells
