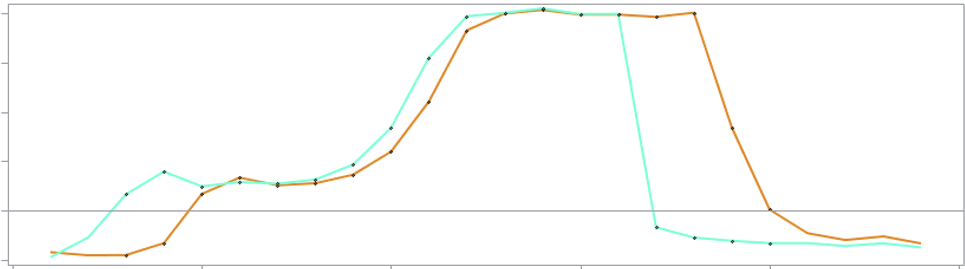

What I have is two signals in time (x=time in seconds, y=Force) and they are lagged (see graph bellow). The lag is unknown to me and I have more than 5000 of this pair of curves. I need to align all this pairs or curves to enable other posterior analysis.

To do that, I would normally use the cross correlation method to find the the point in time where the two signals are best aligned in seconds . After I have the this optimal set point, I can use this number to correct one of the time series and make them match.

The problem is that I never did this in sas and I was wondering if there is a procedure that I can use or I need to code this in sas base from scratch myself. I google quite a bit and I'm not sure if what I call a cross correlation could be done with proc timeseries, or proc ARIMA in EG or even with some TS node in EM.

I would take any recommendation regardless of it is the name of a procedure, a sas base program, or an em node.

Thanks!!

1 ACCEPTED SOLUTION

Accepted Solutions

- Mark as New
- Bookmark
- Subscribe
- Mute
- RSS Feed
- Permalink
- Report Inappropriate Content

You can use PROC TIMESERIES to compute crosscorrelations. You need to use the CROSSCORR and CROSSVAR statements. Here is simple example.

```
data temp;
call streaminit(123);
do i=1 to 103;
x = rand("Uniform");
y = lag3(x);
if i > 3 then output;
end;
drop i;
run;
proc timeseries data = temp crossplot=all outcrosscorr=outcrosscorr;
crosscorr lag n ccov ccf ccfstd;
var x;
crossvar y;
run;
```

I am not sure exactly what the purpose of your analysis is, but you may want to look also at the SIMILARITY procedure. It allows you to compute a distance matrix between series using time warping rather than cross-correlation.
