How to read the result of GRJ-GARCH model?

[Gigiwen]

Dear Helpers, I want to run GRJ-Garch model. Two versions of code I have tried:

Version 1: from the following webpage

https://communities.sas.com/t5/SAS-Code-Examples/Estimating-GARCH-Models/ta-p/905609#ets_webex.garch...

  /* Estimate GJR-GARCH Model */
   proc model data = gjrgarch ;
      parms arch0 .1 arch1 .2 garch1 .75 phi .1;
      /* mean model */
      y = intercept ;
      /* variance model */
      if zlag(resid.y) > 0 then
         h.y = arch0 + arch1*xlag(resid.y**2,mse.y) + garch1*xlag(h.y,mse.y)  ;
      else
         h.y = arch0 + arch1*xlag(resid.y**2,mse.y) + garch1*xlag(h.y,mse.y) +
               phi*xlag(resid.y**2,mse.y) ;
      /* fit the model */
      fit y / method = marquardt fiml ;
   run ;
   quit ;

Version 2: I modified from what I read from the manual. "type = grjgarch"

proc autoreg data=oneCoin ;
   model ret =    / nlag=1 garch=(p=1, q=1, type=gjrgarch) ;
run ;

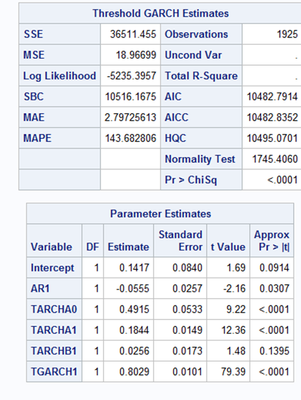

In the version 1, I understand the variable of interest is phi. But I do not know how to read the output of the Version 2. Although I read page 402 in the below manual, I do not know what shows in my below snapshot. Could you please help me understand?

https://support.sas.com/documentation/onlinedoc/ets/132/autoreg.pdf

Besides, I also wish to understand whether Version 1 and 2 are exactly the same? Thank you!

[SASCom1 · Accepted solution]

Hello @Gigiwen

In your version 1 PROC MODEL code, you specified a pure GJR-GARCH model without autoregressive errors; in your version 2 PROC AUTOREG code, you specified a GJR-GARCH model with autoregressive errors(with the NLAG = option in your code). If you intended to specify a pure GJR-GARCH model without autoregressive errors, then you may want to remove the NLAG = option in your version 2 PROC AUTOREG code.

Once you have removed the NLAG = option in your version 2 PROC AUTOREG code, then both versions specify a GJR-GARCH model without AR errors, but they are equivalent with some re-parameterization as discussed below:

In your version 1 PROC MODEL code, it specifies that:

      if zlag(resid.y) > 0 then
         h.y = arch0 + arch1*xlag(resid.y**2,mse.y) + garch1*xlag(h.y,mse.y)  ;
      else
         h.y = arch0 + arch1*xlag(resid.y**2,mse.y) + garch1*xlag(h.y,mse.y) +
               phi*xlag(resid.y**2,mse.y) ;

*Note: the resid.y is an internal variable in PROC MODEL defined as:

resid.y = pred.y - actual.y

SAS Help Center: Equation Translations

this means that resid.y in PROC MODEL is the negative of the residual usually defined in the literature(which is actual - predicted).  So the variance equation in the version 1 PROC MODEL code is defined as

if epsilon_t-1  < 0 , then

h_t = arch0 + arch1*(epsilon_t-1)**2 + garch1*h_t-1 ;

else if epsilon_t-1 >=0 then

h_t = arch0 + arch1*(epsilon_t-1)**2 + garch1*h_t-1 + phi*(epsilon_t-1)**2

While in version 2 PROC AUTOREG code(after removing NLAG = 1 option from your code), the GJR-GARCH model specifies the variance equation as discussed in the following section:

SAS Help Center: GARCH Models

h_t = omega + (alpha1 + I_{epsilon_t-1 < 0}*psi1)*(epsilon_t-1)**2 + gamma1*h_t-1

 where I_{epsilon_t-1<0} is the indicator that takes the value 1 when epsilon_t-1 <0, and takes the value of 0 when epsilon_t-1 > = 0. The above variance equation is thus translated as:

if epsilon_t-1 < 0, then

h_t = omega + (alpha1 + psi1)*(epsilon_t-1)**2 + gamm1*h_t-1 ;

else if epsilon_t-1 >=0 then

h_t = omega + alpha1*(epsilon_t-1)**2 + gamma1*h_t-1 ;

Corresponding to the parameter names in PROC AUTOREG parameter estimates table,

omega = TARCHA0

alpha1 = TARCHA1

psi1     = TARCHB1

gamma1 = TGARCH1

Comparing the variance equations in the two versions, they are equivalent with the following reparameterization:

Version 1  PROC MODEL                                        Version 2 PROC AUTOREG(after removing NLAG = option)

arch0                                                                             TARCHA0

arch1                                                                              TARCHA1 + TARCHB1

arch1 + phi                                                                    TARCHA1

garch1                                                                            TGARCH1

From row 2 and row 3 above, you can see that phi and TARCHB1 is negative of each other:

phi = -TARCHB1

******************************************************

Or alternatively, you may simply modify your version 1 PROC MODEL code by reversing the variance equations between the cases zlag(resid.y) >0 and  zlag(resid.y)<=0, i.e., specify the following variance equations instead:

      /* variance model */
      if zlag(resid.y) <= 0 then
         h.y = arch0 + arch1*xlag(resid.y**2,mse.y) + garch1*xlag(h.y,mse.y)  ;
      else
         h.y = arch0 + arch1*xlag(resid.y**2,mse.y) + garch1*xlag(h.y,mse.y) +
               phi*xlag(resid.y**2,mse.y) ;

then the two versions will have one on one matching on all the parameters.

I hope this helps.

Wen

[Gigiwen]

hi, Wen, thanks for your detailed replies.  Following your advise, I have change into the following:

/* Verion 1 */
proc model data = oneCoin ;
   parms arch0 .1 arch1 .2 garch1 .75 phi .1;
   /* mean model */
   ret = intercept ;
   /* variance model */
   if zlag(resid.ret) <= 0 then
      h.ret = arch0 + arch1*xlag(resid.ret**2,mse.ret) + garch1*xlag(h.ret,mse.ret)  ;
   else
      h.ret = arch0 + arch1*xlag(resid.ret**2,mse.ret) + garch1*xlag(h.ret,mse.ret) +
            phi*xlag(resid.ret**2,mse.ret) ;
   /* fit the model */
   fit ret / method = marquardt fiml ;
run ;
quit ;

/* Verion 2 */
proc autoreg data=oneCoin ;
   model ret =    / garch=(p=1, q=1, type=gjrgarch) ;
run ;

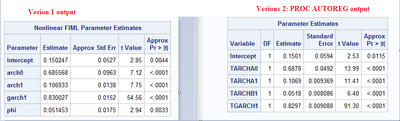

The output are not identical, but I guess they are close enough. Thank you!
