Using DS2 to parse JSON from a REST API
SAS 9.4 introduced PROC JSON, which allows you to create JSON output from a data set. But it wasn't until SAS 9.4 Maint 3 that we have a built-in method to parse JSON content. That method was added as a DS2 package: the JSON package.
About JSON
JSON (JavaScript Object Notation) is the most common response type from REST-based web services. It's a simple plain text format that structures data into name-value pairs, along with some metadata, to communicate "answers" to the questions that you ask via HTTP calls. But the data structures can be nested, and the text is delimited with special characters such as braces, quotes, commas, and colons. Here is an example snippet of JSON that describes part of a message object from this community, including details about the author and the time stamp of the message:
"response": {
"status": "success",
"messages": {
"message": [
{
"last_edit_author": {
"type": "user",
"href": "\/users\/id\/1184",
"login": {
"type": "string",
"$": "Kanyange"
}
},
"post_time": {
"type": "date_time",
"$": "2015-10-03T15:44:28+00:00"
},
}
]
}
}
About DS2
PROC DS2 is part of Base SAS. DS2 is a procedural programming language that is similar to DATA step and that has access to your favorite DATA step functions, but it's much more. With DS2, you can define program variables that aren't part of your data, you can define methods, and use control flow logic. DS2 also has packages: predefined collections of capabilities for special purposes. Some built-in packages include HTTP (for web calls), MATRIX for matrix programming, and now JSON. Learn more about DS2 from the SAS online documentation.
The JSON parser in DS2 frees you from the worry of parsing the syntax of a JSON object (with its various delimiters) and provides simple access to the data portion of JSON tokens: those name-value combinations that represent the data you want.
To use the JSON package, you first declare an object of type json. From that object you can use the createParser() method to create an instance of the parser that will do the work for you. After you initialize the parser with the JSON content, you can use getNextToken to navigate through the JSON structure to get to the values you want. (There are many more methods in the JSON package, but these are the basic building blocks.
Here's a simple DS2 segment that shows how you would use the http package to call an API, then navigate the API response with the JSON parser:
dcl package json j();
dcl package http webQuery();
webQuery.createGetMethod('http://webservice.com/?response_style=json');
webQuery.executeMethod();
webQuery.getResponseBodyAsString(response, rc);
rc = j.createParser( response );
do while (rc=0);
j.getNextToken( rc, token, tokenType, parseFlags);
* subject line;
if (token eq 'subject') then
do;
j.getNextToken( rc, token, tokenType, parseFlags);
subject=token;
end;
end;
A complete example of the JSON parser with a REST API
Here's an example of the method working -- using an API that powers this very community! (That's "meta" for you.)
The program requires SAS 9.4 Maint 3. It also works fine in the most recent version of SAS University Edition (using SAS Studio 3.4). All of the code runs using just Base SAS procedures.
/* DS2 program that uses a REST-based API */
/* Uses http package for API calls */
/* and the JSON package (new in 9.4m3) */
/* to parse the result. */
proc ds2;
data messages (overwrite=yes);
/* Global package references */
dcl package json j();
/* Keeping these variables for output */
dcl double post_date having format datetime20.;
dcl int views;
dcl nvarchar(128) subject author board;
/* these are temp variables */
dcl varchar(65534) character set utf8 response;
dcl int rc;
drop response rc;
method parseMessages();
dcl int tokenType parseFlags;
dcl nvarchar(128) token;
rc=0;
* iterate over all message entries;
do while (rc=0);
j.getNextToken( rc, token, tokenType, parseFlags);
* subject line;
if (token eq 'subject') then
do;
j.getNextToken( rc, token, tokenType, parseFlags);
subject=token;
end;
* board URL, nested in an href label;
if (token eq 'board') then
do;
do while (token ne 'href');
j.getNextToken( rc, token, tokenType, parseFlags );
end;
j.getNextToken( rc, token, tokenType, parseFlags );
board=token;
end;
* number of views (int), nested in a count label ;
if (token eq 'views') then
do;
do while (token ne 'count');
j.getNextToken( rc, token, tokenType, parseFlags );
end;
j.getNextToken( rc, token, tokenType, parseFlags );
views=inputn(token,'5.');
end;
* date-time of message (input/convert to SAS date) ;
* format from API: 2015-09-28T10:16:01+00:00 ;
if (token eq 'post_time') then
do;
j.getNextToken( rc, token, tokenType, parseFlags );
post_date=inputn(token,'anydtdtm26.');
end;
* user name of author, nested in a login label;
if (token eq 'author') then
do;
do while (token ne 'login');
j.getNextToken( rc, token, tokenType, parseFlags );
end;
* get the author login (username) value;
j.getNextToken( rc, token, tokenType, parseFlags );
author=token;
output;
end;
end;
return;
end;
method init();
dcl package http webQuery();
dcl int rc tokenType parseFlags;
dcl nvarchar(128) token;
dcl integer i rc;
/* create a GET call to the API */
/* 'sas_programming' covers all SAS programming topics from communities */
webQuery.createGetMethod(
'http://communities.sas.com/kntur85557/' ||
'restapi/vc/categories/id/sas_programming/posts/recent' ||
'?restapi.response_format=json' ||
'&restapi.response_style=-types,-null&page_size=100');
/* execute the GET */
webQuery.executeMethod();
/* retrieve the response body as a string */
webQuery.getResponseBodyAsString(response, rc);
rc = j.createParser( response );
do while (rc = 0);
j.getNextToken( rc, token, tokenType, parseFlags);
if (token = 'message') then
parseMessages();
end;
end;
method term();
rc = j.destroyParser();
end;
enddata;
run;
quit;
/* Add some basic reporting */
proc freq data=messages noprint;
format post_date datetime11.;
table post_date / out=message_times;
run;
ods graphics / width=2000 height=600;
title '100 recent message contributions in SAS Programming';
title2 'Time in GMT';
proc sgplot data=message_times;
series x=post_date y=count;
xaxis minor label='Time created';
yaxis label='Messages' grid;
run;
title 'Board frequency for recent 100 messages';
proc freq data=messages order=freq;
table board;
run;
title 'Detailed listing of messages';
proc print data=messages;
run;

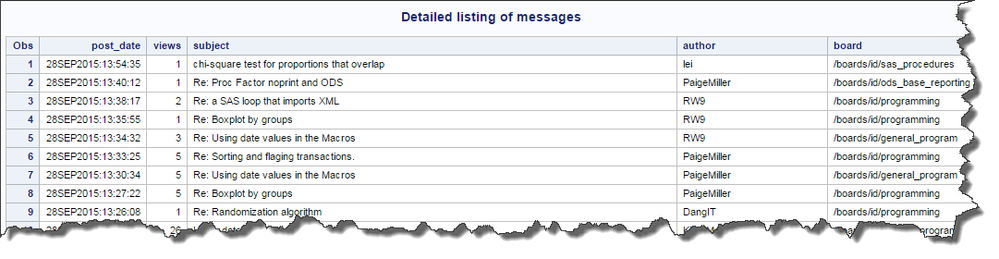

title;Here is some partial output:
A note about "destructors"... You might notice that the example includes a call to destroyParser().
method term();
rc = j.destroyParser();
end;It's not strictly necessary in this example, as the parser object will be cleaned up when the object goes out of scope at the end of the DS2 program. But as some DS2 programs can be long-running and memory intensive, cleaning up allocated objects is a best practice.
