Overview of the article series of the Monopoly board game simulation in SAS Viya

Monopoly #1 - Basic Example for the Visit Frequency of the Fields: Gives a basic introduction into the simulation architecture using a SAS datastep and shows how you can generate first simulations and visualization of the visit distributions.
Monopoly #2 - Consider "Go-to-Jail" for the Visit Frequency of the Fields: Extends the simulation by considering the Go-to-Jail directive in your simulation
Monopoly #3 - Create a visualization dashboard in SAS Visual Analytics: Shows how you can store the simulation results in a repository to compare the results from different simulations settings and how to create a visualization dashboard in SAS Visual Analytics
This article: Monopoly #4 - Consider Chance Cards and Community Chest Cards for the Visit Frequency: Explains how you can additionally consider the instructions from chance and community chest cards for the simulation by extending the SAS datastep
Monopoly #5 - Calculate the Profit per Field and per Player: Extends the simulation by considering purchase options of properties and houses, as well as rent payment obligations. This article also explains how you can extend your vizualisation dashboard in SAS Visual Analytics to show the profitability per field and per player number.

Introduction

This article extends the work from article Monopoly #1 - Basic Example for the Visit Frequency of the Fields and from Monopoly #2 - Consider "Go-to-Jail" for the Visit Frequency of the Fields by considering the Chance and the Community Chest Cards.

Note that the full code is provided in the attached SAS program. In this article only those code elements are explained that differ from the version shown in the article Monopoly #1 - Basic Example for the Visit Frequency of the Fields and Monopoly #2 - Consider "Go-to-Jail" for the Visit Frequency of the Fields.

1. Considering the Chance and Community Chest Fields

1.1 Macro Variable &ConsiderChance

In the macro variables an additional macro parameter &ConsiderChance is defined.

%let cnt_players = 5;
%let cnt_games   = 1000;
%let cnt_rounds  = 100;
%let ConsiderJail = yes;
%let Doublet3Jail = no;
%let ConsiderChance = Yes;
%let seed  = 1;

%let ScenarioName = "4. Jail, 3Doublet and ChanceCards";

This variable is used in the code to control if the statements to consider the Chance Cards and the Community Chest cards are processed or not.

                %if %upcase(&ConsiderChance) = YES %then %do;

1.2 (Pseudo)Mixing the Cards

At the beginning of each game the community chest cards and the chance cards are mixed. Note that only a "pseudo-mixing" of the cards is performed here. The order of the cards 1-16 is maintained, but the card id, which is on top of the pile, is randomly generated and stored in the ActualCommChestID and ActualChanceID variable. These variables contain the values 1-16.

You could improve and program a true mixing of the cards, by creating a lookup table and assigning randomly generated sort values for it. However for the simulation purposes that are considered here, it will not make a big difference if the order of the cards is maintained or not.

        *** Mix CommunityChest and Chance cards. Here: leave the order as is (should be fine for the simulation),
            but define a new start in the stack of cards;
        ActualCommChestID = ceil(rand('Uniform')*16);
        ActualChanceID    = ceil(rand('Uniform')*16);

        do Round = 1 to &cnt_rounds;
            do Player = 1 to &cnt_players;

2. Considering the Cards

2.1 Considering the Community Chest Cards

The community chest fields are located at fields 3, 18, and 34. Only 2 of the 16 cards relocate the token:

Card 1 relocates you to the start field (field 1)
Cards 6 sends you to jail.


                %if %upcase(&ConsiderChance) = YES %then %do;

                 if PlayerPos[Player] in (3, 18, 34) then do; ** Pick CommunityChest Cards;

                  if ActualCommChestID=1 then PlayerPos[Player] = 1; *** Goto Field 1;
                  else if ActualCommChestID=6 then PlayerPos[Player] = 11; *** Goto Field 11 = jail;
                  ActualCommChestID = mod(ActualCommChestID+1,16); *** Move to of pile to next card;

                 end; ** Community Chest Card;

In the code you query the actual value of the community chest cards (ActualCommChestID). In case of 1 or 6 you relocated.

At the end, you move the card at the bottom of the pile and the next card is ready for a future draw.

2.1 Considering the Chance Cards

The "chance" fields are located at fields 8, 23, and 37. The same procedure is applied as with the community chest cards. Here 10 out of 16 cards relocate the token in different ways:

Cards 1, 2, 3, 4, 11, and 14 relocate the token to a specific field.
Cards 5,6, and 7 relocate to the "nearest" utility or railroad. (Note that in the simulation "nearest" is interpreted as the next utility (railroad) in the direction how tokens move in the game.) Here you need to take into account where the token is currently located to determine the target.
Card 10 relocates you 3 spaced backward. Here this is implemented by using the absolute number of fields numbers of the chance cards. You could also implement this with the MOD function.

At the end, you move the card at the bottom of the pile and the next card is ready for a future draw.

                 else if PlayerPos[Player] in (8, 23, 37) then do; ** Pick Chance Cards;

                        select (ActualChanceID);

                        when (1) PlayerPos[Player] = 40;  /* Take a walk on the Boardwalk */
                        when (2) PlayerPos[Player] = 1;    /* Advance to GO */
                        when (3) PlayerPos[Player] = 25;   /* Advance to Illinois Avenue */
                        when (4) PlayerPos[Player] = 12;   /* Advance to St. Charles Place */

                        when (5,6) do; /* Advance to nearest Railroad */
                            if PlayerPos[Player] = 8 then PlayerPos[Player] = 16;
                            else if PlayerPos[Player] = 23 then PlayerPos[Player] = 26;
                            else if PlayerPos[Player] = 37 then PlayerPos[Player] = 6;
                        end;

                        when (7) do; /* Advance to nearest Utility */
                            if PlayerPos[Player] in (8,37)  then PlayerPos[Player] = 13;
                            else if PlayerPos[Player] = 23 then PlayerPos[Player] = 29;
                        end;

                        when (8) ;   /* Bank pays you dividend of $50 – no move */
                        when (9) ;   /* Get Out of Jail Free – no move */

                        /* Go Back 3 Spaces */
                        when (10) do;
                            if PlayerPos[Player] = 8  then PlayerPos[Player] = 5;
                            else if PlayerPos[Player] = 23 then PlayerPos[Player] = 20;
                            else if PlayerPos[Player] = 37 then PlayerPos[Player] = 34;
							*** Alternative would be to use: PlayerPos[Player] = mod(PlayerPos[Player]-1,40)+1+3;
                        end;

                        when (11) PlayerPos[Player] = 11;   /* Go to Jail */
                        when (12) ;  /* General repairs – no move */
                        when (13) ;  /* Speeding fine - no move */
                        when (14) PlayerPos[Player] = 6;   /* Take a trip to Reading Railroad */
                        when (15) ;  /* Chairman of the Board – no move */
                        when (16) ;  /* Building loan matures – no move */

                        otherwise;
                        end;

                  ActualChanceID = mod(ActualChanceID+1,16); *** Move to of pile to next card;


                 end; ** Chance Card;

3. Reviewing the Results

After performing post-processing using a SAS datastep and the TRANSPOSE procedures you can plot the results using the SGPLOT procedure.

proc sgplot data=work.player_location;
 title Scenario: &scenarioname.;
 histogram value / binstart=1 binwidth=1;
 yaxis max = 6;
run;
title;

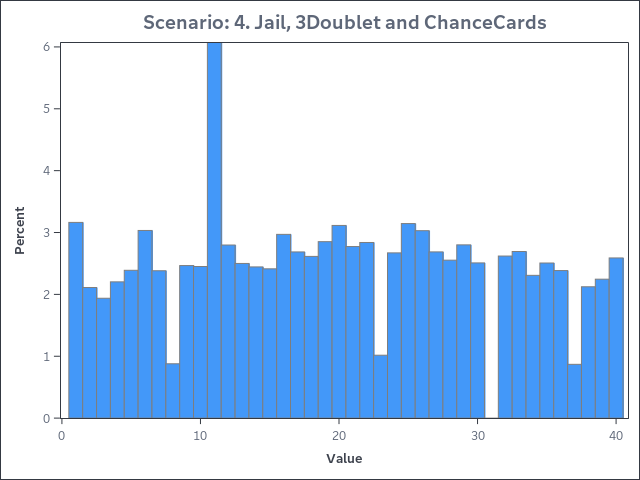

From the result you can see:

The visit frequency of the "Jail" field increases compared to Scenario 3 "Go-to-jail" as one community chest card and one chance card relocate the token to jail.
The visit frequency of the community chest card fields 3, 18, and 34 and one chance card fields 8, 23, and 37 decreased because the token is moved aways from there in some cases.
The visit frequency of the target fields, e.g. 1, 6, 12, 25, ... increase because the token is sent there.

Scenario 4.png

4. Video

The following video illustrates the changes for the coding as described above.

Note that the video is taken from an earlier version of the code, where some of the relocation targets differ from the final (correct) version.

(view in My Videos)
