Obsidian | Level 7

Fix code to calculate minimizer value in non linear optimization problem

hi,

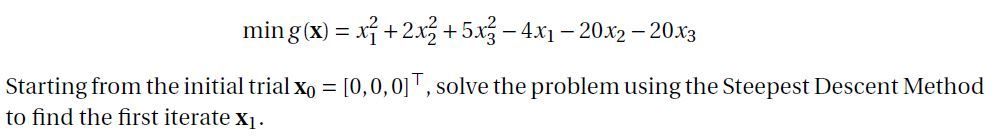

I am trying to solve the following problem

The initial point is =(0 0 0)

My code is the following

```proc optmodel;
var x{1..3};
min f = x[1]^2  + 2*x[2]^2 + 5*x[3]^2 - 4*x[1] - 20*x[2] - 20*x[3] ;

/* starting point */
x[1]= 0;
x[2]= 0;
x[3]=0;
solve;
print x x.dual;
quit;```

This code works fine

Now if P is the descent direction of f at Xo then

I need to find the minimizer Aplha for this problem

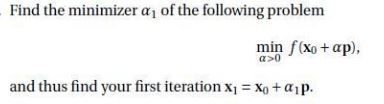

I mean to say that I am trying to solve this question:

I have tried the following code to calculate Alpha

```proc optmodel;
num n = 3;
var x {1..n};
min f = x[1]^2  + 2*x[2]^2 + 5*x[3]^2 - 4*x[1] - 20*x[2] - 20*x[3] ;

/* starting point */
x[1]= 0;
x[2]= 0;
x[3]=0;
solve;
print x x.dual;

num p {1..n};
for {j in 1..n} p[j] = -x[j].dual;
var alpha >= 0;
min g  = (x[1]+alpha*p[1])^2 + 2*(x[2]+alpha*p[1])^2 + 5*(x[3]+alpha*p[1])^2-4*(x[1]+alpha*p[1]) -20*(x[2]+alpha*p[1]) -20*(x[3]+alpha*p[1])
solve;
print alpha;
quit;```

But this code is giving me wrong value of alpha...its showing alpha=0

1 ACCEPTED SOLUTION

Accepted Solutions
SAS Super FREQ

Re: Fix code to calculate minimizer value in non linear optimization problem

You still need to correct the first error by adding a FIX statement.

4 REPLIES 4
SAS Super FREQ

Re: Fix code to calculate minimizer value in non linear optimization problem

There are three errors:

1. You need to FIX x for the first solve, as in the previous examples.

2. You need a semicolon at the end of the declaration of g.

3. Some of the appearances of p[1] in g should instead be p[2] or p[3].

The corrected statement is:

``````min g = (x[1]+alpha*p[1])^2 + 2*(x[2]+alpha*p[2])^2 + 5*(x[3]+alpha*p[3])^2-4*(x[1]+alpha*p[1]) -20*(x[2]+alpha*p[2]) -20*(x[3]+alpha*p[3]);
``````
Obsidian | Level 7

Re: Fix code to calculate minimizer value in non linear optimization problem

Thanks for the quick response.

I fixed the code now like this:

```proc optmodel;
num n = 3;
var x {1..n};
min f = x[1]^2  + 2*x[2]^2 + 5*x[3]^2 - 4*x[1] - 20*x[2] - 20*x[3] ;

/* starting point */
x[1]= 0;
x[2]= 0;
x[3]=0;
solve;
print x x.dual;

num p {1..n};
for {j in 1..n} p[j] = -x[j].dual;
var alpha >= 0;
min g = (x[1]+alpha*p[1])^2 + 2*(x[2]+alpha*p[2])^2 + 5*(x[3]+alpha*p[3])^2-4*(x[1]+alpha*p[1]) -20*(x[2]+alpha*p[2]) -20*(x[3]+alpha*p[3]);

solve;
print alpha;
quit;```

but when I run it. I get the value of alpha=0. Is it ok or need some adjustment in the code please?

thanks

SAS Super FREQ

Re: Fix code to calculate minimizer value in non linear optimization problem

You still need to correct the first error by adding a FIX statement.

Obsidian | Level 7

Re: Fix code to calculate minimizer value in non linear optimization problem

thank you so much..i fixed it like this

``````proc optmodel;
num n = 3;
var x {1..n};
min f = x[1]^2  + 2*x[2]^2 + 5*x[3]^2 - 4*x[1] - 20*x[2] - 20*x[3] ;

/* starting point */
fix x[1] = 0;
fix x[2] = 0;
fix x[3] = 0;

solve;
print x x.dual;

num p {1..n};
for {j in 1..n} p[j] = -x[j].dual;
var alpha >= 0;
min g = (x[1]+alpha*p[1])^2 + 2*(x[2]+alpha*p[2])^2 + 5*(x[3]+alpha*p[3])^2-4*(x[1]+alpha*p[1]) -20*(x[2]+alpha*p[2]) -20*(x[3]+alpha*p[3]);

solve;
print alpha;
quit;``````
