line shift on y-axis tick label

[Claus_Stenberg]

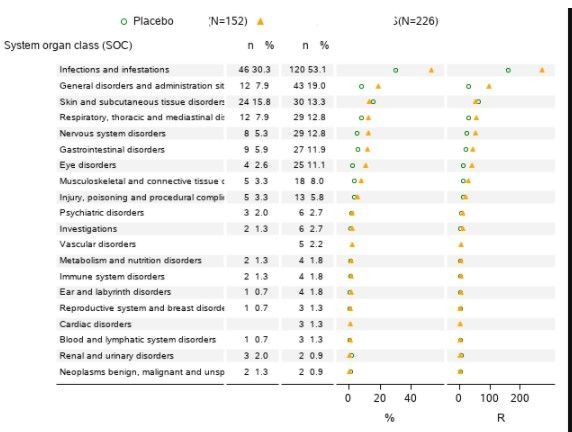

I am doing an template for an AE dotplot for clinical trials. The text string for a preferred term is shown on the y axis. Often the text string is very long why I want have a line break so the term will be on two lines (the y axis tick mark label). I have tried to get force a line shift in the text string by setting in the unicode for a line break  - (*ESC*){unicode '000a'x} - but that does not work.

I am doing the plot in GTL

proc template;
   define statgraph aedotplot;

      begingraph ;


         layout lattice /columns=5
                         columnweights = (0.4 0.1 0.1 0.2 0.2)
                         rowdatarange=unionall
                         columngutter=0
                         ;


            layout overlay / walldisplay=none
                             border=false
                             x2axisopts=(display=(tickvalues )
                             displaysecondary=(line))
                             yaxisopts=(linearopts=(tickvaluesequence=(start=1 end=&count increment=1))
                                       display=none
                                       displaysecondary=none
                                       );

      /*--Draw alternating bands using referenceline--*/
               referenceline y = display2nd/ lineattrs=(thickness=&RefThickness.PCT) datatransparency=0.9;
/*             left colum with text box */
               scatterplot y=display x=display_label / markercharacter=display MARKERCHARACTERPOSITION=right yaxis=Y xaxis=X2 markerattrs=(size=0) includemissinggroup=true;

            endlayout;
......

Any ideas ?



[Rick_SAS]

Try adding LABELFITPOLICY=SPLIT iIn the YAXISOPTS=(...) list of options.

And instead of unicode, define

labelsplitchar=";"

(or some other character) and imbed the split character into the labels.

[Claus_Stenberg · Accepted solution]

Thanks for the suggestion Rick.

However, can't get it to work....... Is it like this you would suggest (don't mind the plot - give no meaning what so ever ! - should give a tick label with two line with the name of students).:

proc template;
   define statgraph plot;
   begingraph ;
      layout overlay /   YAXISOPTS = (LABELFITPOLICY=SPLIT
                                       labelsplitchar="|" )
                                      ;
             scatterplot y=name2 x=age;
      endlayout;
   Endgraph;
   end;
 run;

 data class2;
    set sashelp.class;
    name2=name||"|"||name;
run;

 proc sgrender data=class2 template=plot;
 run;

[ballardw]

Try

template;
   define statgraph plot;
   begingraph ;
      layout overlay /   YAXISOPTS = (discreteopts =( tickvaluefitpolicy=splitalways
                                       tickvaluesplitchar="|"

                                       )
                                     )
                                      ;
             scatterplot y=name2 x=age;
      endlayout;
   Endgraph;
   end;
 run;

Make sure your graph has enough vertical space for all the split lines.

LABEL policies are for the thing like "Student name" that describes the axis as a whole. TICKVALUE policies affect the tick value text appearance.
