hide statement title in ods result

[Quodly]

hello,

data have;
  input pred resp;
  datalines;
0 1
1 1
2 0
3 1
4 1
5 1
6 1
7 0
8 0
9 1
;

ods graphics on;

ods select roccurve;

ods noproctitle;

proc logistic;
  model resp = pred / nofit;
  roc "have" pred = pred;
run;

ods graphics off;

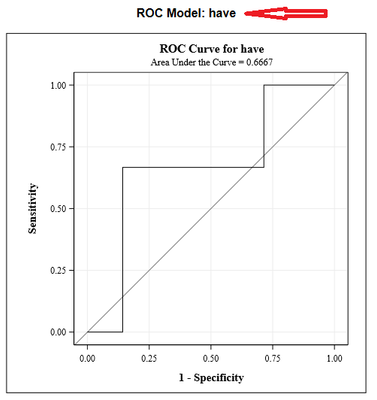

how can one get rid of the model statement title above the figure?

[sbxkoenk]

I have moved this post to the 'Graphics Programming' board.

I'm confident that it will get an answer here.

I can start the discussion by saying you need to do this by changing the GRAPH(ic) template used by the LOGISTIC procedure.

I have not done that since years, so it would take me too long to offer you a ready-made solution.

But here are some references :

SAS® 9.4 and SAS® Viya® 3.5 Programming Documentation | SAS 9.4 / Viya 3.5
SAS/STAT User's Guide
ODS Graphics Template Modification
Graph Templates
https://go.documentation.sas.com/doc/en/pgmsascdc/9.4_3.5/statug/statug_templt_sect001.htm

Tiptoe through the Templates
Cynthia L. Zender, SAS Institute, Inc., Cary, NC
https://www.lexjansen.com/nesug/nesug10/gr/gr10.pdf

SAS® 9.4 and SAS® Viya® 3.5 Programming Documentation | SAS 9.4 / Viya 3.5
SAS Output Delivery System: Procedures Guide
Using the TEMPLATE Procedure
https://go.documentation.sas.com/doc/en/pgmsascdc/9.4_3.5/odsproc/p0qwdi9bxpdaxyn1jji920q0c8s4.htm

Introduction to the Graph Template Language
Sanjay Matange, SAS Institute, Cary, NC
https://www.lexjansen.com/wuss/2009/dpr/DPR-Matange1.pdf

Koen

[GraphGuy]

I'm not 100% sure, but you'll probably have to modify the template something like this...

https://support.sas.com/kb/34/186.html

[ballardw]

Not the most obvious but you can send the data from the graph to a data set using ODS OUTPUT and then create your own graph in Sgplot. Though that typically involves investigating the actual contents of the data set as the plotted values are likely not to stay the same name as your analysis variables.

[Quodly]

thank you for your suggestions. i've tried

ods text = " ";

before proc logistic to hide the title - it somehow works for one procedure but not for multiple.

[bobderr · Accepted solution]

This is a title added because you specified a ROC statement, and is not controlled by the "title;" statement.  The trick is to use PROC DOCUMENT to store the plot, then replay it and remove the title with OBSTITLE:

ods graphics on;
ods select roccurve;
ods noproctitle;
ods document name=myroc(write);
proc logistic data=have;
  model resp = pred / nofit;
  roc "have" pred = pred;
run;
ods document close;
ods graphics on;
proc document name=myroc;
   obstitle \Logistic#1\ROC1#1\ROCCurve#1;
   replay \Logistic#1\ROC1#1\ROCCurve#1;
quit;
ods graphics off;
