enhance sgplot graph by controlling spaces, line breaks and titles

[acordes]

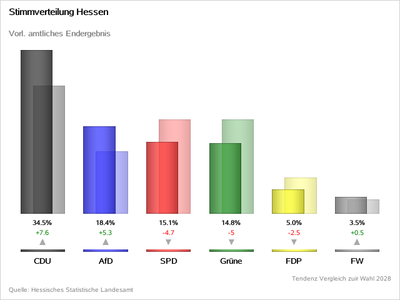

I've seen a nice visualisation about election results that I want to reproduce with ods graphics. The original graph is attached second.

I'm getting close but there are still some things that need fixes.

The pending challenges are remarked in my sgplot output.

• The footnote is cut off
• The footnotes should be placed much below the graph space
• the color coding of the political parties in the original graph repeats as a bold line below the xaxistable, I don't know how to do that, I fake these lines by creating a second bar chart with equal value for all parties and shrinking it through min and max settings in a yaxis2
• The title should be left-aligned and I need a line break between title1 and title2

data wahl;
i=1;
format _2023 _2019 percent9.1 _delta 9.1 party $20.;
do party='CDU', 'AfD', 'SPD', 'Grüne', 'FDP', 'FW';
_2023=choosen(i, .345, .184, .151, .148, .05, .035);
_delta=choosen(i, 7.6, 5.3, -4.7, -5, -2.5, .5);
arrow=(_delta > 0)+1;
_2019=_2023 - _delta/100;
fake=-.5;
i+1;
dummy='all';
output;
end;
run;

data myattrmap;
set wahl(rename=(party=value));
length id $9 linecolor markersymbol textcolor $20;
fillcolor=choosec(_n_, "black", "blue", "red", "green", "yellow", "grey");
markersymbol=choosec(_n_, "star", "triangle", "starfilled", "home", "squarefilled", "hash");
textcolor=choosec(arrow, "red", "green");
id="id1";
run;

proc format;
value grp
	1 = "(*ESC*){unicode '25BC'x}"
	2 = "(*ESC*){unicode '25B2'x}";
run;

proc format;
picture signy
0<-high='009.9'( prefix='+');
run;

data anno_footnote1;
length function $10 anchor $20 drawspace $20;
function='text';
drawspace='GraphPercent';
x1=80; y1=3;
label= "Tendenz Vergleich zuir Wahl 2028";
textcolor='gray77'; textsize=6;
width=100;
run;

data anno_footnote2;
length function $10 anchor $20 drawspace $20;
function='text';
drawspace='GraphPercent';
x1=10; y1=1;
label="Quelle: Hessisches Statistische Landesamt";
textcolor='gray77'; textsize=6;
width=5000;
run;

data anno_footnote;
	set anno_footnote1 anno_footnote2;
run;


title 'Stimmverteilung Hessen' bold justify=left;
title2 '';
title3 'Vorl. amtliches Endergebnis'  ;

ods graphics on / noborder;
proc sgplot data=wahl  dattrmap=myattrmap noautolegend noborder nowall  sganno=anno_footnote;
ods output sgplot=sg;
format arrow grp. _delta signy.;

vbar party / response=_2023 group=party dataskin=pressed attrid=id1 barwidth=0.5   categoryorder=respdesc legendlabel='now'  ;
vbar party / response=_2019 group=party dataskin=pressed attrid=id1 transparency=0.7 barwidth=0.5  discreteoffset=0.15 legendlabel='last' ;
vbar party / response=fake group=party attrid=id1 barwidth=0.85  y2axis ;


xaxistable _2023 / classdisplay=cluster  VALUEATTRS=(SIZE=14 ) nolabel location=inside  ;
xaxistable _delta / classdisplay=cluster VALUEATTRS=(SIZE=11 ) nolabel textgroupid=id1 textgroup=party location=inside name='txt'   ;
xaxistable arrow / classdisplay=cluster VALUEATTRS=(SIZE=11 ) nolabel location=inside  ;
xaxis valueattrs=(size=14 weight=bold) display=(NOLINE NOTICKS nolabel )  ;
yaxis display=none offsetmin=0.1 min=0 max=0.4;
y2axis display=none offsetmax=0.2 max=50 min=-.5;

run;

[Ksharp · Accepted solution]

data wahl;
i=1;
format _2023 _2019 percent9.1 _delta 9.1 party $20.;
do party='CDU', 'AfD', 'SPD', 'Grüne', 'FDP', 'FW';
_2023=choosen(i, .345, .184, .151, .148, .05, .035);
_delta=choosen(i, 7.6, 5.3, -4.7, -5, -2.5, .5);
arrow=(_delta > 0)+1;
_2019=_2023 - _delta/100;
fake=-.08;
i+1;
dummy='all';
output;
end;
run;
data wahl2;
 set wahl;
 fake2=-0.075;
 y_percent=-0.02;
 green_red_y=-0.04;
 green_delta=ifc(_delta>=0,cats('+',_delta),' ');
 red_delta=ifc(_delta<0,cats(_delta),' ');
 arrow_y_up=-0.06;
 arrow_party_up=ifc(arrow=2,party,' ');
 arrow_y_down=-0.06;
 arrow_party_down=ifc(arrow=1,party,' ');
 text_y=-0.1;
run;


title j=l "Stimmverteilung Hessen";
title2 ' ';
title3 j=l c=gray 'Vorl. amtliches Endergebnis';
footnote j=r c=gray h=0.8 'Tendenz Vergleich zuir Wahl 2028';
footnote2 j=l c=gray h=0.8 'Quelle: Hessisches Statistische Landesamt';
proc sgplot data=wahl2 noautolegend noborder;
styleattrs datacolors=("black" "blue" "red" "green" "yellow" "grey");
vbarparm category=party response=fake/group=party barwidth=0.7 dataskin=pressed nooutline displaybaseline=off  transparency=0.3;
vbarparm category=party response=fake2/group=party barwidth=1 displaybaseline=off nooutline fillattrs=(color=white) ;
vbarparm category=party response=_2019/group=party dataskin=pressed displaybaseline=off nooutline displaybaseline=off
      discreteoffset=0.1 barwidth=0.5 transparency=0.7;
vbarparm category=party response=_2023/group=party dataskin=pressed displaybaseline=off nooutline displaybaseline=off
      discreteoffset=-0.1 barwidth=0.5 transparency=0.3 ;
scatter x=party y=y_percent /markerchar=_2023 markercharattrs=(weight=bold size=8) labelstrip;
scatter x=party y=green_red_y/markerchar=green_delta markercharattrs=(color=green size=8) labelstrip ;
scatter x=party y=green_red_y/markerchar=red_delta markercharattrs=(color=red size=8) labelstrip ;
scatter x=arrow_party_up y=arrow_y_up/markerattrs=(symbol=trianglefilled color=greyaa size=10) ;
scatter x=arrow_party_down y=arrow_y_down/markerattrs=(symbol=triangledownfilled color=greyaa size=10) ;
scatter x=party y=text_y/markerchar=party markercharattrs=(color=black weight=bold size=10) labelstrip ;
yaxis display=none ;
xaxis display=none;
run;

[acordes]

you're brilliant
