data_null__
Jade | Level 19

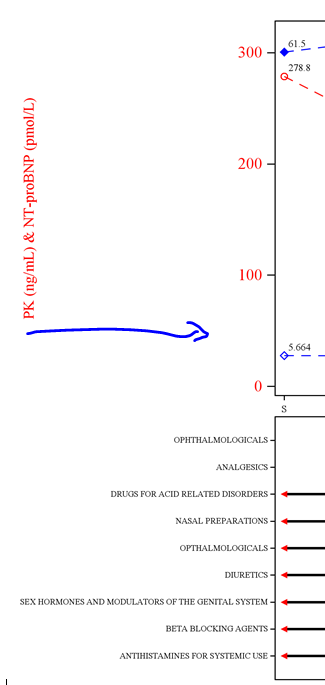

Is there a way to get the Y axis label in the top figure to move closer to the tick labels.  I get why it is positioned this way because of the tick values in the bottom figure.  I'm using GTL.


1 ACCEPTED SOLUTION

Accepted Solutions
Ksharp
Super User

John.King ,

That would be better if you could post some data and your GTL code to test your problem.

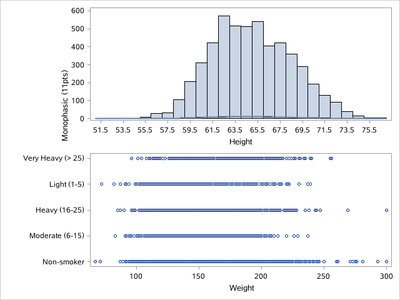

Here I make some dummy code to give you some help.





%sganno
data sganno;
 %SGTEXT(LABEL="Monophasic (11pts)",WIDTH=40,DRAWSPACE="LAYOUTPERCENT",ID="BAR",ROTATE=90,X1=15,Y1=30)
run;


proc template;
define statgraph y2axis;
begingraph;
layout lattice / rows=2 rowgutter=10
rowdatarange=union row2datarange=union;


layout overlay /  yaxisopts=( label=" " )  ;
histogram height / scale=count ;
histogram height / scale=percent;
densityplot height / normal();
annotate / id="BAR";
endlayout;

layout overlay /  yaxisopts=( label=" " )  ;
scatterplot y=smoking_Status x=weight;
endlayout;

endlayout;
endgraph;
end;
proc sgrender data=sashelp.heart template=y2axis sganno=sganno;
run;






View solution in original post

2 REPLIES 2
ballardw
Super User

Look at annotation to place text at arbitrary locations. Start here for some details: https://documentation.sas.com/doc/en/pgmsascdc/v_057/grstatgraph/p0rgjcddtqwpyin1ro3kvrksd6js.htm



Without data and complete template code I wouldn't even make an attempt at some other work around as there are just too many moving parts with GTL to have a chance of getting a working alternative.

Ksharp
Super User

John.King ,

That would be better if you could post some data and your GTL code to test your problem.

Here I make some dummy code to give you some help.





%sganno
data sganno;
 %SGTEXT(LABEL="Monophasic (11pts)",WIDTH=40,DRAWSPACE="LAYOUTPERCENT",ID="BAR",ROTATE=90,X1=15,Y1=30)
run;


proc template;
define statgraph y2axis;
begingraph;
layout lattice / rows=2 rowgutter=10
rowdatarange=union row2datarange=union;


layout overlay /  yaxisopts=( label=" " )  ;
histogram height / scale=count ;
histogram height / scale=percent;
densityplot height / normal();
annotate / id="BAR";
endlayout;

layout overlay /  yaxisopts=( label=" " )  ;
scatterplot y=smoking_Status x=weight;
endlayout;

endlayout;
endgraph;
end;
proc sgrender data=sashelp.heart template=y2axis sganno=sganno;
run;
