Separating the same dates in a graph

[mmohotsi]

I am trying to draw a graph whose dates are the same in a large data set. The data set attached is only a subset of a large data set. What SAS does is that it adds the Y values and plot them as one point and this distorts the results. I have used the code below to draw the corresponding plot

proc sgplot data=reset ;
vline Date / response=Result group=Structure groupdisplay=cluster;
xaxis interval=Auto type=time label='Sampled Date' LABELATTRS=(weight=bold size=9)
VALUEATTRS=(family=arial size=9 style=normal weight=normal );
yaxis values=(0 to 100 by 5) LABELATTRS=(weight=bold size=9)
VALUEATTRS=(family=arial size=9 style=normal weight=normal );;
refline 29 / axis=y label=('Expected Result') lineattrs=(color=red pattern=dash)
labelattrs=(size=12) labelloc=outside;
title1 j=c " design Structure" bold;
run;

Is there a way to avert this problem? Maybe draw a statistic like the Mean, Max of the results corresponding to the dates OR perhaps have the same dates included in the x-axis the with their distinct values?

[sbxkoenk · Accepted solution]

It adds the Y-values (for same date) because the default STAT displayed is SUM when you have specified the RESPONSE= option.

Here are all the statistics  you can display:

STAT=FREQ | MEAN | MEDIAN | PERCENT | SUM

You can add this STAT= option after the forward slash in your vline statement.

BR,

Koen

[sbxkoenk]

Maybe you want a vbox instead of a vline statement?

Here's the

Graphics Samples Output Gallery

Every graph comes with its code.

Specifically for PROC SGPLOT:

https://support.sas.com/sassamples/graphgallery/PROC_SGPLOT.html

BR,

Koen

[Ksharp]

Why are you using VLINE ? why not use SCATTER?

VLINE would get MEAN of obs which have the same date.

And you'd post a desired graph to explain what you are looking for ?

libname x  v9 'C:\Users\xiakeshan\Documents\Downloads';

data reset;
 set x.reset;
run;

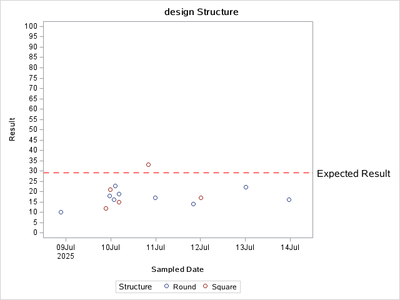

proc sgplot data=reset ;
scatter x=Date y=Result/jitter group=Structure ;
xaxis interval=Auto type=time label='Sampled Date' LABELATTRS=(weight=bold size=9)
VALUEATTRS=(family=arial size=9 style=normal weight=normal );
yaxis values=(0 to 100 by 5) LABELATTRS=(weight=bold size=9)
VALUEATTRS=(family=arial size=9 style=normal weight=normal );;
refline 29 / axis=y label=('Expected Result') lineattrs=(color=red pattern=dash)
labelattrs=(size=12) labelloc=outside;
title1 j=c " design Structure" bold;
run;
