SGPLOT line type and thickness

[emaneman]

hello.

I am plotting regressions in SGPANEL:

proc sgpanel data=dataset ;
panelby type ;
reg x=IV y=DV /group=group ;

The variable group has four levels (A B C D), and thus i get four separate regression lines.

I would like to control the the color (red, orange, yellow, green), line type (solid, dot, dash, longdash) and line thickness as well as the type of markers for the observed values and their color (matching the colors of the corresponding line, of course).

I am having a really hard time making that work.

If you have any suggestion, I'd very much appreciate.

Ideally a solution that would work also with SGPANEL.

I used SAS Studio.

Best,

Eman

[Ksharp · Accepted solution]

data have;
call streaminit(123);
do type='A','B','C','D';
  do group='A','B','C','D';
    do obs=1 to 20;
      x=rand('normal');
	  y=rand('normal');
      output;
	end;
  end;
end;
run;

data dattrmap;
id='id';
input value $ linecolor $ LINEPATTERN $ LINETHICKNESS   MARKERCOLOR $ MARKERSYMBOL :$20.;
cards;
A red  solid  4  red circlefilled
B orange  dot 6  orange triangleFilled
C yellow  dash 8 yellow starfilled
D green   longdash 10  green  DiamondFilled
;

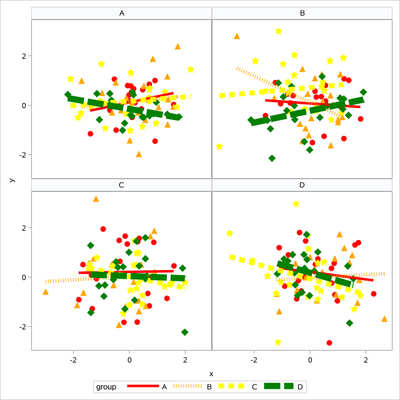

proc sgpanel data=have dattrmap=dattrmap;
panelby type/novarname ;
reg x=x y=y /group=group markerattrs=(size=12) attrid=id;
run;

[emaneman]

hello,

thanks for the reply, and sorry for the late response on my end.

I wanted to have only one group/regression line in each quadrant, so I adjusted the syntax, and it works well!

Thank you

Emanuele
