PROC SGSCATTER: MATRIX plot is missing tick values when used with option DIOGANAL=(histogram)

[A_Kh]

Hello Community,

While creating matrix plot using the option DIOGANAL=(histogram), tick values are disappearing . Trying to use GTL to modify the template, but don't see any available options in the tmplout-generated code or sas documentations. TEMPLATES with/out tick values don't differ.
Is there any SG or GTL option available for the MATRIX statement to display tick values even when using DIOGANAL=(histogram) option?

Please see the below examples.

1. Tick values displayed without DIOGANAL=(histogram) option.

proc sgscatter data=sashelp.iris tmplout='C:\Users\Desktop\matrix1.sas';
  title "Scatterplot Matrix for Iris Data";
  matrix sepallength petallength;
run;
title;

the tmplout created template is:

proc template;
define statgraph sgscatter;
begingraph / designwidth=640 designheight=640;
EntryTitle "Scatterplot Matrix for Iris Data" /;
layout lattice / pad=(top=5);
    ScatterPlotMatrix SepalLength PetalLength / subpixel=off NAME="MATRIX";
endlayout;
endgraph;
end;
run;

2. Tick values disappeared with DIOGANAL=(histogram) option.

proc sgscatter data=sashelp.iris tmplout='C:\Users\Desktop\matrix2.sas';
  title "Scatterplot Matrix for Iris Data";
  matrix sepallength petallength/diagonal=(histogram);
run;
title;

the tmplout created template is:

proc template;
define statgraph sgscatter;
begingraph / designwidth=640 designheight=640 subpixel=on;
EntryTitle "Scatterplot Matrix for Iris Data" /;
layout lattice / pad=(top=5);
    ScatterPlotMatrix SepalLength PetalLength / subpixel=off NAME="MATRIX" diagonal=( histogram );
endlayout;
endgraph;
end;
run;

[DanH_sas]

Unfortunately, there is not a good way to achieve what you requested. The histograms have different axis ranges from the scatter plots, so the unified external row/column axes around the matrix cannot be created without negatively impacting the visual. The best you could do would be to create a Layout Lattice in GTL and, using internal axes, add the scatter plots and histograms in the desired order.

[Ksharp]

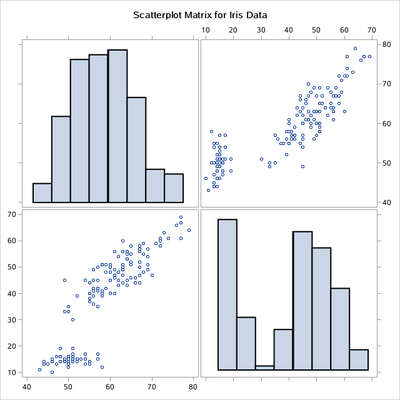

You want this ?

/*Example 1*/
ods listing gpath="%sysfunc(pathname(work))" image_dpi=300 style=htmlblue;
ods graphics / reset=all imagename='sepallength' noborder width=80px height=80px;
ods html exclude sgplot;
/*generate a histogram graph*/
title;
proc sgplot data=sashelp.iris pad=0  noborder noautolegend;
histogram sepallength ;
xaxis display=none;
yaxis display=none;
run;

ods listing gpath="%sysfunc(pathname(work))" image_dpi=300 style=htmlblue;
ods graphics / reset=all imagename='petallength' noborder width=80px height=80px;
ods html exclude sgplot;
/*generate a histogram graph*/
title;
proc sgplot data=sashelp.iris pad=0  noborder noautolegend;
histogram petallength ;
xaxis display=none;
yaxis display=none;
run;



%sganno
data sganno;
%SGIMAGE(IMAGE="%sysfunc(pathname(work))\sepallength.png",ANCHOR="topleft",BORDER="FALSE",DRAWSPACE="LAYOUTPERCENT" ,x1=6,y1=93)
%SGIMAGE(IMAGE="%sysfunc(pathname(work))\petallength.png",ANCHOR="topleft",BORDER="FALSE",DRAWSPACE="LAYOUTPERCENT" ,x1=54,y1=48)
run;

ods graphics/reset;
proc sgscatter data=sashelp.iris sganno=sganno;
  title "Scatterplot Matrix for Iris Data";
  matrix sepallength petallength;
run;
