Multiple graphs in one panel

[wj2]

Hello,

I am trying to combine 4 separate survival plots into a single, panel style graph. Please see below for my code for each of the individual survival plots. Any help with this would be greatly appreciated!

/***Graph #1***/
ods graphics on;
ods output survivalplot=OverallSample;
proc lifetest data=have plots=survival;
time Days*censor(0);
run;
ods graphics off;

proc sgplot data=OverallSample;
step y=survival x=time;
run;

/***Graph #2***/
ods graphics on;
ods output survivalplot=VariableA;
proc lifetest data=have plots=survival;
strata varA;
time Days*censor(0);
run;
ods graphics off;

proc sgplot data=VariableA;
step y=survival x=time/ group=stratum;
run;

/***Graph #3***/
ods graphics on;
ods output survivalplot=VariableB;
proc lifetest data=have plots=survival;
strata varB;
time Days*censor(0);
run;
ods graphics off;

proc sgplot data=VariableB;
step y=survival x=time/ group=stratum;
run;

/***Graph #4***/
ods graphics on;
ods output survivalplot=VariableC;
proc lifetest data=have plots=survival;
strata varC;
time Days*censor(0);
run;
ods graphics off;

proc sgplot data=VariableC;
step y=survival x=time/ group=stratum;
run;

[JeffMeyers]

Hello,

  You might be interested in a macro I've written that can do this: %NEWSURV .  It's a macro that creates high quality KM curves along with calculating a lot of statistics.  You can plot multiple graphs in the same image (see example 7 in the link).

Otherwise a strategy I think you could potentially use would be to make a variable that you can use in a BY statement and then use SGPANEL instead of SGPLOT:

data have2;
   set have;
   length graph 8. strat $200.;
   graph=1;strat='';output;
   graph=2;strat=vvalue(varA);output;
   graph=3;strat=vvalue(varB);output;
   graph=4;strat=vvalue(varC);output;
run;
ods output survivalplot=Graph;
proc lifetest data=have2 plots=survival;
by graph;
strata strat;
time days*censor(0);
run;
proc sgpanel data=graph;
  panelby graph / rows=2 columns=2;
  step y=survival x=time/ group=stratum;
run;

The code isn't tested or perfect, but would at least be a step in the right direction.

[ballardw · Accepted solution]

Here is one way that uses SGPANEL and combining data to add a variable to indicate which panel the values go in and setting a common Group=variable so the same code can be used for the plot statement. You should have the SASHELP.CLASS data set available so you can see if this is similar in functionality to what you want.

data example;
   set sashelp.class (in=in1)
       sashelp.class (in=in2)
       sashelp.class (in=in3)
   ;
   length Groupvar $ 3;
   if in1 then do;
      Plot=1;
      Groupvar='All';
   end;
   else if in2 then do;
      Plot=2;
      Groupvar=sex;
   end;
   else if in3 then do;
      Plot=3;
      Groupvar= put(age,2.);
   end;
run;

proc sgpanel data=example;
   panelby Plot;
   scatter x=height y=weight/group=groupvar;
run;

The IN= data set option creates a temporary true/false (1/0) variable that indicates whether the current record the data step is processing has values from the given data set.

With multiple data sets built the way you show you would only need to make sure that the "overall" data set has a group variable value to use this approach after adding the plot indicator.

[wj2]

@ballardw Thank you very much for the help! This code appears to generally work; however, for some reason, I am getting an extra line for each of my four graphs that sort of borders the bottom-left of the graph- please see example below. Do you have any suggestions on how to address this issue? I have provided my code below for your reference. Also, would you be able to provide any suggestions on how to modify the appearance of each individual graph of the panel, such as adding different color lines for the groups, modifying the legend labels for each graph, and adding the logrank values for each graph?

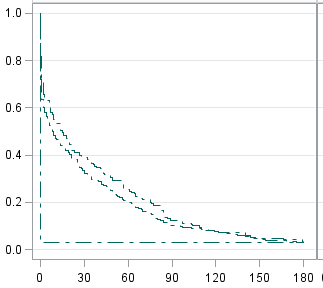

Example graph with extra line:

Code:

data panel;
   set have (in=in1)
         have (in=in2)
         have (in=in3)
	 have (in=in4)
   ;
   length Groupvar $ 3;
   if in1 then do;
      Plot=1;
      Groupvar='Any';
   end;
   else if in2 then do;
      Plot=2;
      Groupvar=varA;
   end;
   else if in3 then do;
      Plot=3;
      Groupvar=varB;
   end;
   else if in4 then do;
      Plot=4;
      Groupvar=varC;
   end;
run;

ods graphics on;
ods output survivalplot=panel_graph;
proc lifetest data=panel plots=survival;
by plot;
strata groupvar;
time days*censor(0);
run;
ods graphics off;

proc sgpanel data=panel_graph;
   panelby Plot;
   step y=survival x=time/group=plot lineattrs=(thickness=1) ;
  colaxis label="Time to discontinuation (Days)" values=(0 to 180 by 30) labelattrs=(weight=bold);
rowaxis label="Survival probability" values=(0 to 1 by 0.2) labelattrs=(weight=bold) grid;
run;

[JeffMeyers]

Your group variable should be groupvar and not plot in the step statement.

[wj2]

@JeffMeyers  Thank you!! Totally overlooked that!

Also, would you be able to suggest how the line attributes could be modified for each individual graph using sgpanel? This seems pretty straightforward using 'STYLEATTRS' for a single graph, but I'm wondering how individual graphs could be modified when Proc Sgpanel is being used. For instance, I would like to have different colors for each of the groupvar levels for each plot. FYI, I have one level for groupvar for Plot=1, 2 levels for groupvar for Plot=2 and Plot=3, and 4 levels for groupvar for Plot=4.

[JeffMeyers]

I think there would be a way to do this with a discrete attribute map. You can look up how to make one here:
https://documentation.sas.com/doc/en/pgmsascdc/9.4_3.5/grstatproc/n18szqcwir8q2nn10od9hhdh2ksj.htm

[wj2]

@JeffMeyers thank you, this is exactly what I needed!

Also, would you or someone else happen to know how to create separate legends for each panel to include INSIDE each panel?

[JeffMeyers]

Unfortunately that would require getting into GTL coding I believe. I'm sorry I should have thought of this originally. If you want something automated for this the macro I linked to in my original reply is really powerful for this.
Otherwise here's a link to another post with that question: https://communities.sas.com/t5/Graphics-Programming/Can-we-create-a-separate-legend-for-each-panel-i...

[DanH_sas]

Another possibility that has not been mentioned is to use ODS LAYOUT to layout each of your SGPLOT outputs into a grid on a page. Would you be interested in that approach?

[ballardw]

The vertical and horizontal lines are caused by some record with a Y variable value of 0 and X variable value of 0.

It may be that you want to exclude those from your plot data set.

Since there is no legend in your picture I can't say which group variable is associated with which line. I suspect that one of the (0,0) pairs is the first record of a group variable value (the black vertical line) and the the other, the blue line, is likely the last record of the group. So look at the first and last records of Have and see if you actually want those points on the plot.
